LOCK CYLINDER SET

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-0E140iAXUH7#,TXUA7#202210-202311

main69052-0E141iTXUA75;AXUH7#,TXUA70..G,M,N202311

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06170iAXUH7#,TXUA7#202210-202311

main69056-08010iTXUA75;AXUH7#,TXUA70..G,M,N202311

69503CYLINDER SET, LOCK

main69005-0E240iAXUH7#,GSU7#201912-202210

main69005-0E241iTXUA75;AXUH7#,TXUA70..G,M,N202311

69503AKEY, BLANK

main69515-06050iAXUH7#,GSU7#201912-202108

MASTER KEY,W(*68)

main69515-16110iAXUH7#,TXUA7#202210-202311

MASTER KEY,W(*68)

main69515-K0020iTXUA75;AXUH7#,TXUA70..G,M,N202311

BLANK KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-0E180×2iGSU7#202205-202208

main89072-0E190×2iAXUH7#202205-202208

main89072-0E580×2iGSU7#202208-202210

main89072-0E590×2iAXUH7#202208-202210

main89072-0E740×2iTXUA70..S202311-202410

main89072-0E170×2iGSU7#..N; GSU70..N202205-202208

CANADA SPEC; L PACKAGE; MEXICO SPEC

main89072-0E570×2iGSU7#..N; GSU70..N202208-202210

CANADA SPEC; L PACKAGE; MEXICO SPEC

main89072-0E610×2iAXUH78..G202210-202311

KOREA SPEC

main89072-0E730×2iAXUH70..N; TXUA75..N202311

CANADA SPEC; MEXICO SPEC

main89072-0E750×2iAXUH78..G202311

KOREA SPEC

89745ABATTERY, TRANSMITTER

main89745-08010iTXUA75;AXUH7#,TXUA70..G,M,N202311

CR2450

main89745-50020iAXUH7#,GSU7#201912-202210

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-0E020iGSU7#201912-202210

main8990H-0E030iAXUH7#202002-202210

main8990H-0E370iAXUH7#,TXUA7#202210-202311

main8990H-0E600iTXUA75;AXUH7#,TXUA70..G,M,N202311

main8990H-0E010iGSU7#..N; GSU70..N201912-202210

L PACKAGE; MEXICO SPEC

main8990H-0E360iAXUH70..N; TXUA7#..N202210-202311

CANADA SPEC; L PACKAGE; MEXICO SPEC

main8990H-0E380iAXUH78202110-202210

CANADA SPEC

main8990H-0E400iAXUH78..G202210-202311

KOREA SPEC

main8990H-0E590iAXUH70..N; TXUA75..N202311

CANADA SPEC; MEXICO SPEC

main8990H-0E610iAXUH78..G202311

KOREA SPEC

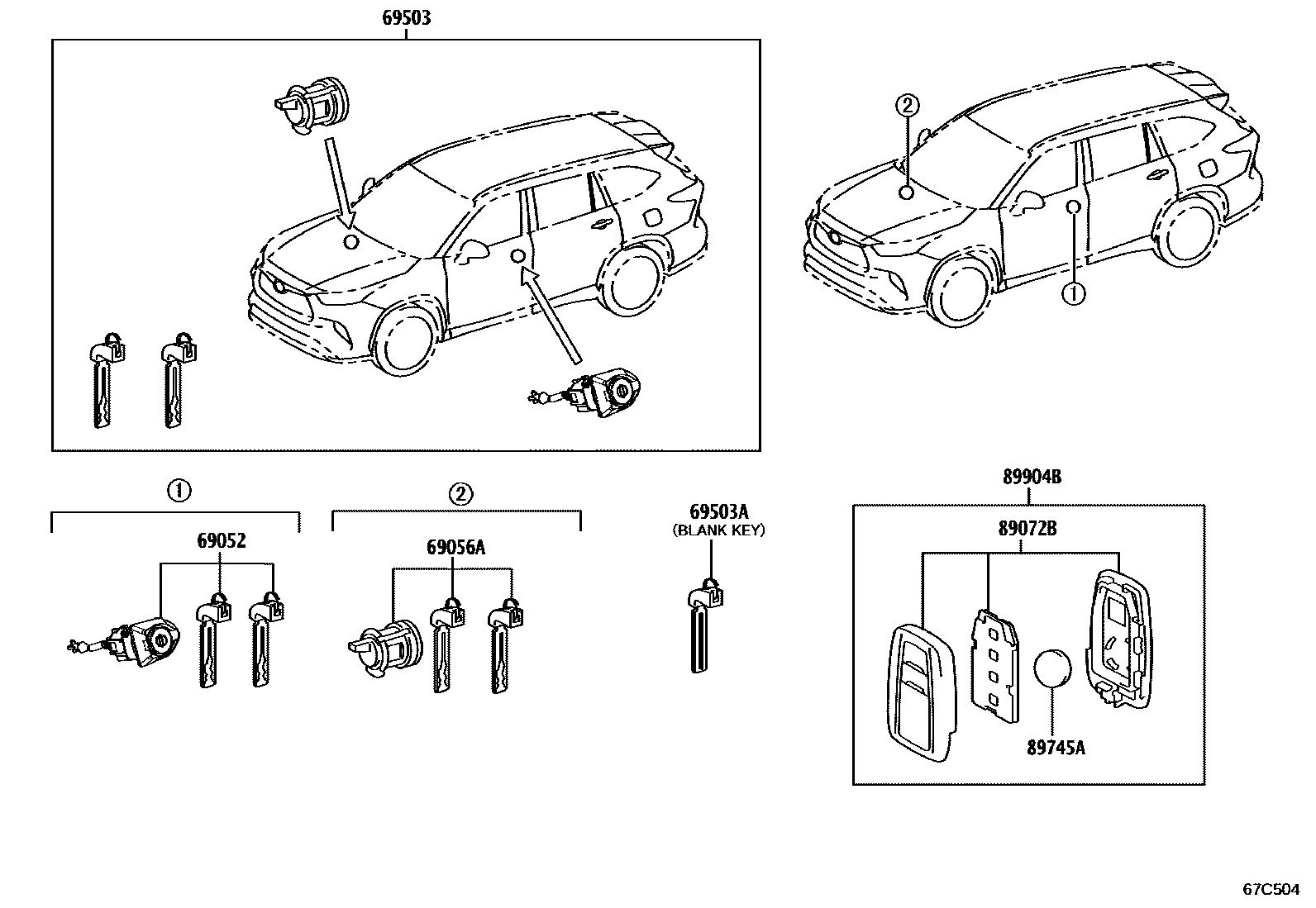

7 parts on this diagram · 1 diagram in section
