Toyota 522410 — ROOF HEADLINING & SILENCER PAD

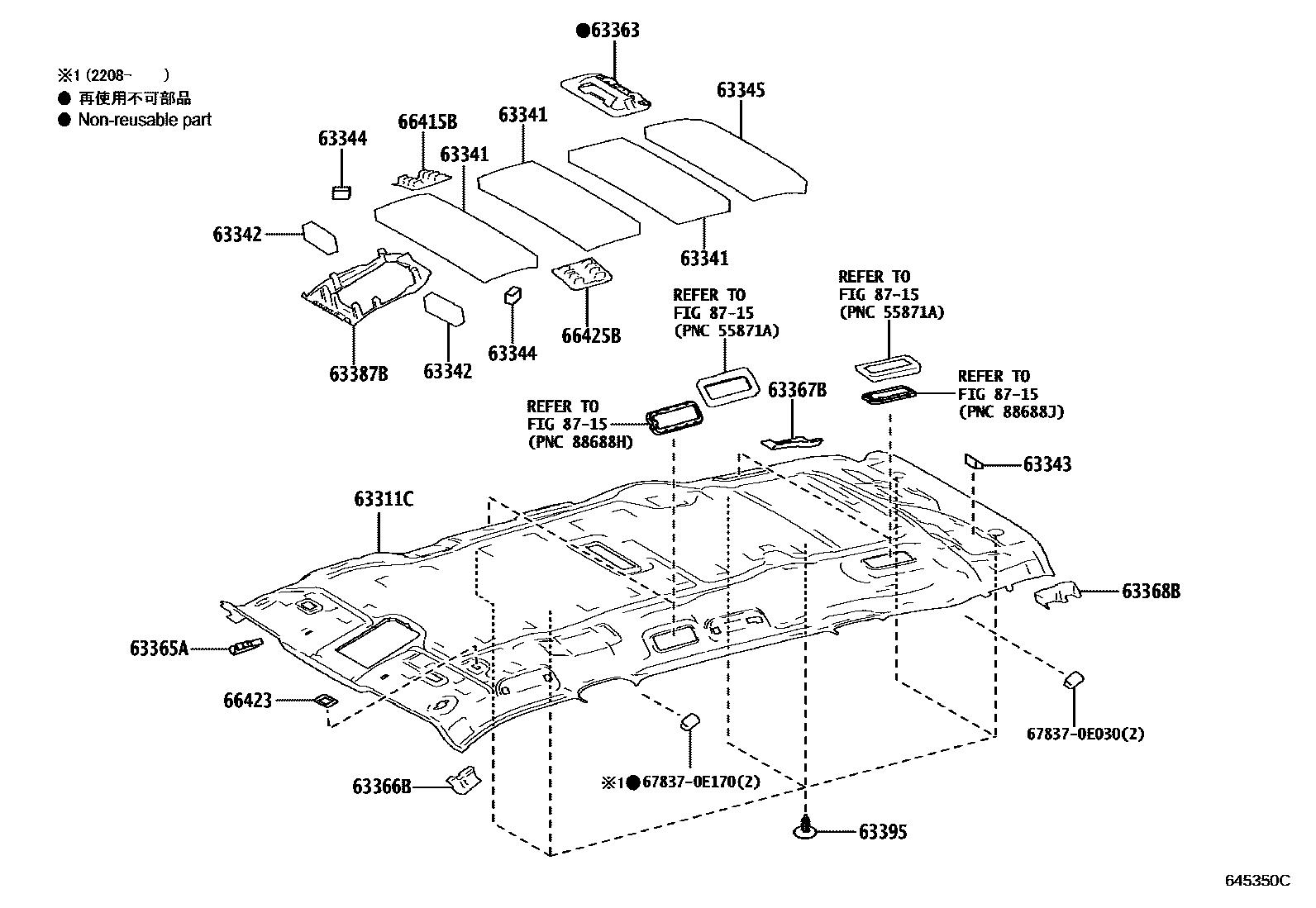

Parts diagram
63311CHEADLINING, ROOF
63341PAD, ROOF SILENCER, NO.1
63341-0E130
63342PAD, ROOF SILENCER, NO.2
63341-0E140
63343PAD, ROOF SILENCER, NO.3
63341-0E160
63344PAD, ROOF SILENCER, NO.4
63341-0E170
63345PAD, ROOF SILENCER, NO.5
63341-0E130
63341-0E270
63363SUPPORT, ROOF HEADLINING, NO.3
63369-0E060
63369-0E070
63365APLATE, ROOF HEADLINING SET
63366BPLATE, ROOF HEADLINING SET, LH
63367BPLATE, ROOF HEADLINING SET, NO.2 RH
63368BPLATE, ROOF HEADLINING SET, NO.2 LH
63387BBRACKET, ROOF HEADLINING RETAINER
63395CLIP, ROOF HEADLINING TRIM
63395-0E020
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66423SPACER, SIDE RAIL, FRONT LH
66423-0E050
66425BSPACER, SIDE RAIL, REAR NO.2 LH
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
→ Go to FIG 87-15
678370E030PROTECTOR, FRONT DOOR SERVICE HOLE COVER
67837-0E030
678370E170PROTECTOR, FRONT DOOR SERVICE HOLE COVER
67837-0E170

19 parts on this diagram · 7 diagrams in section

ROOF HEADLINING & SILENCER PAD for Toyota 522410

This section contains 27 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota 522410. Key components include: SHOE, SLIDING ROOF, FRONT RH, SHOE, SLIDING ROOF, FRONT LH, TRIM SUB-ASSY, SUNSHADE, HEADLINING, ROOF, PAD, ROOF SILENCER, NO.1.
