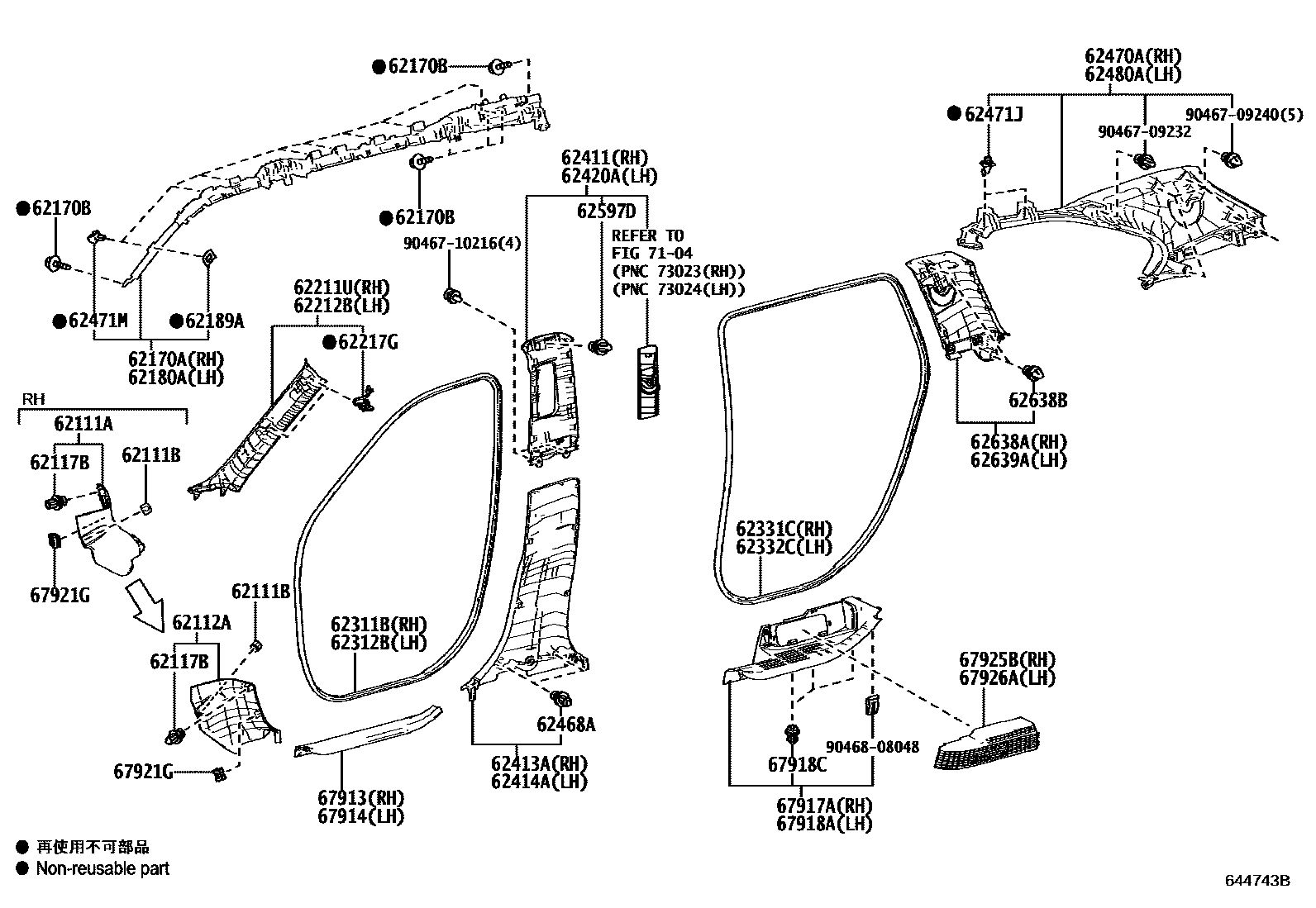

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
62111BCLIP(FOR COWL SIDE TRIM)
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170BBOLT, W/WASHER
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211UGARNISH ASSY, FRONT PILLAR, RH
LT. GRAY,TRIM1#,2#,4#
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM1#,20,4#
BLACK,TRIM20
BLACK,TRIM2#,3#
LT. GRAY,TRIM1#,2#,40
LT. GRAY,TRIM1#,2#,40,42
BLACK,TRIM41
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER,BLACK,TRIM2#,3#
BLACK,TRIM41,42
62212BGARNISH ASSY, FRONT PILLAR, LH
LT. GRAY,TRIM1#,2#,4#
LT. GRAY,TRIM1#,2#
LT. GRAY,TRIM1#,20,4#
BLACK,TRIM2#,3#
BLACK,TRIM20
LT. GRAY,TRIM1#,2#,40,42
LT. GRAY,TRIM1#,2#,40
AUDIO-12.3INCH T-PREMIUM JBL11SPEAKER,BLACK,TRIM2#,3#
BLACK,TRIM41
BLACK,TRIM41,42
62217GCLIP, FRONT PILLAR GARNISH
62411GARNISH, CENTER PILLAR, RH
LT.GRAY,TRIM1#,2#,40,42
LT.GRAY,TRIM1#,2#,40
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM20
BLACK,TRIM41
BLACK,TRIM2#,3#
BLACK,TRIM41,42
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
62420AGARNISH ASSY, CENTER PILLER, LH
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,40
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,40,42
BLACK,TRIM41
BLACK,TRIM2#,3#
BLACK,TRIM20
BLACK,TRIM41,42
62468ACLIP (FOR CENTER PILLAR REAR GARNISH)
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,40
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM1#,2#,40,42
LT.GRAY,TRIM1#,2#,4#
BLACK,TRIM20
BLACK,TRIM41
BLACK,TRIM2#,3#
BLACK,TRIM41,42
62471JCLIP (FOR ROOF SIDE GARNISH)
62471MCLIP
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,40
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,20,4#
LT.GRAY,TRIM1#,2#,40,42
BLACK,TRIM2#,3#
BLACK,TRIM41
BLACK,TRIM20
BLACK,TRIM41,42
62597DCLIP
62638AGARNISH, QUARTER PILLAR, RH
LT.GRAY,TRIM1#,2#,40
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,40,42
BLACK,TRIM2#,3#
BLACK,TRIM41
BLACK,TRIM41,42
62638BCLIP
62639AGARNISH, QUARTER PILLAR, LH
LT.GRAY,TRIM1#,2#,4#
LT.GRAY,TRIM1#,2#,40,42
LT.GRAY,TRIM1#,2#
LT.GRAY,TRIM1#,2#,40
BLACK,TRIM2#,3#
BLACK,TRIM41
BLACK,TRIM41,42
67913PLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
BLACK,TRIM2#,3#
PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
KOREA SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
CANADA SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
HAWAII SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
67914PLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
HAWAII SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
CANADA SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
KOREA SPEC&PLATINUM PACKAGE,BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM2#,3#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
67918CCLIP(FOR REAR SCUFF PLATE)
67921GRETAINER, FRONT DOOR SCUFF PLATE
67925BPANEL, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#
67926APANEL, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
7104
9046709232
main90467-09232
9046709240
main90467-09240
9046710216
main90467-10216
9046808048
main90468-08048
41 parts on this diagram · 2 diagrams in section
