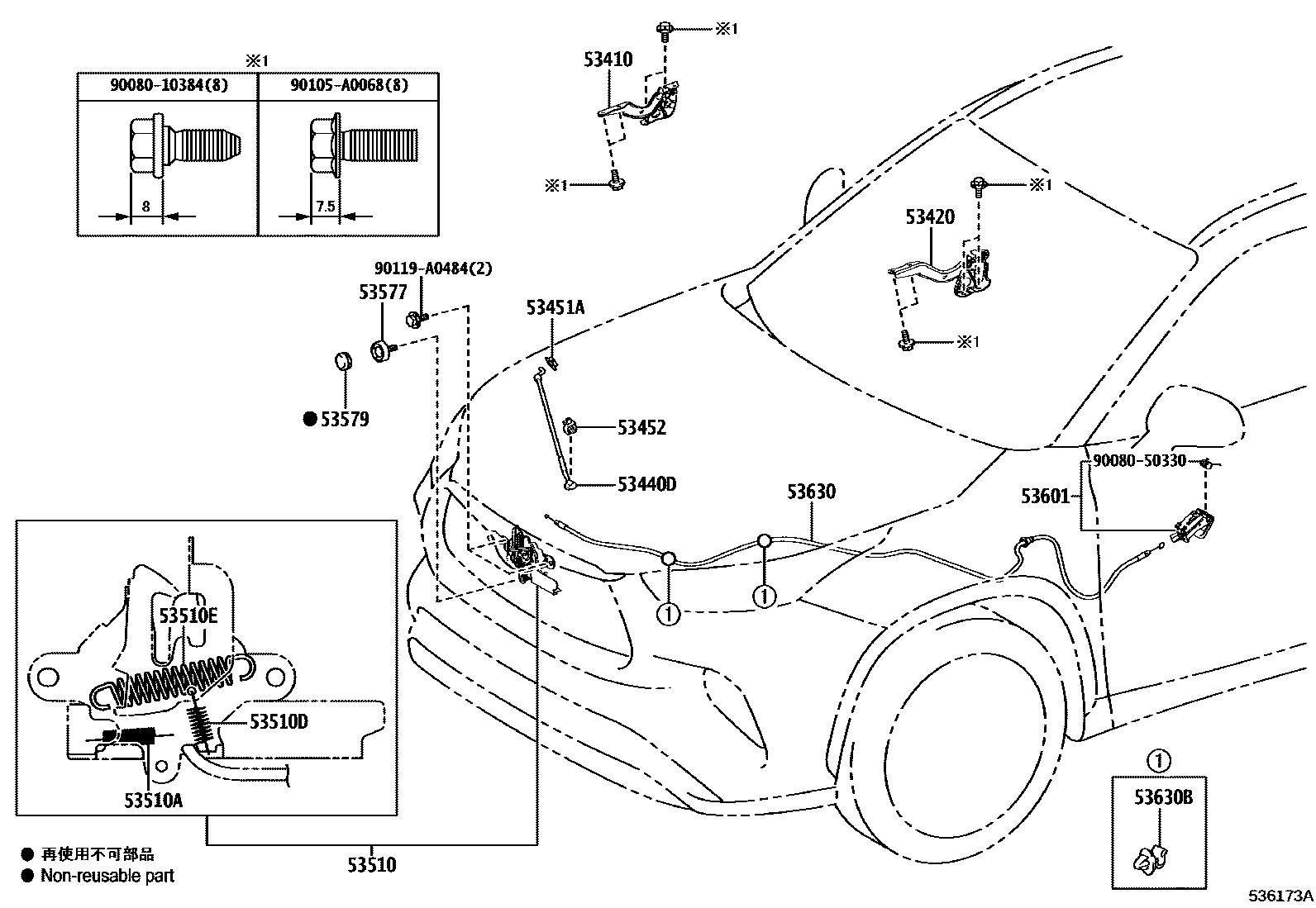

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440DSUPPORT ASSY, HOOD
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53510LOCK ASSY, HOOD
A.SAMOA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); CANADA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER); GUAM,SAIPAN SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
WD=1.2,CW=8.5
53510ESPRING, TENSION(FOR HOOD LOCK)
WD=1.8,CW=13
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,40; BLACK,TRIM1#,2#,40,41
NOBLE BROWN,TRIM40; NOBLE BROWN,TRIM40,41
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
9008010384
main90080-10384
9008050330
main90080-50330
90105A0068
main90105-A0068
90119A0484
main90119-A0484
18 parts on this diagram · 1 diagram in section
