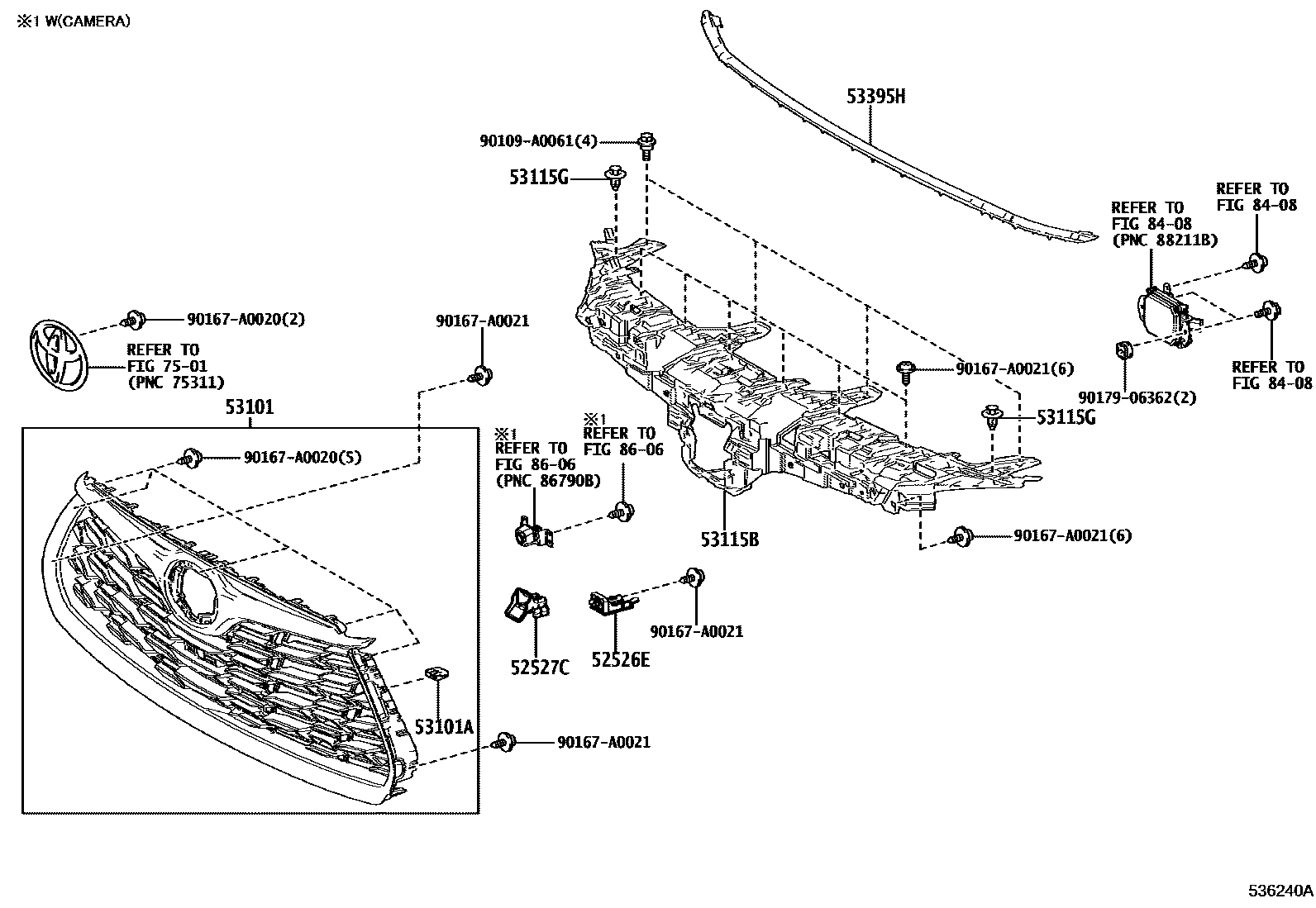

RADIATOR GRILLE

0001 1 0002 1 0003 1HYBRID SPECIAL EDITION

52526ERETAINER, FRONT BUMPER, LOWER NO.1

main52526-02030iAXUH7#,TXUA7#..G,M,N202210-202311

main52526-0E010iTXUA75..S202311

52527CRETAINER, FRONT BUMPER, LOWER NO.2

main52527-02020iAXUH7#,GSU7#201912-202210

53101GRILLE SUB-ASSY, RADIATOR

main53101-0E360iAXUH7#,GSU7#..M,N201912-202210

NO PAINT REQ.

main53101-0E361iAXUH7#,TXUA7#..M,N202402

NO PAINT REQ.

main53111-0E330iTXUA70..S202311-202410

NO PAINT REQ.

main53101-0E330supersedes 53101-0E370iAXUH7#,GSU7#..G201912-202210

PLATED,AUDIO-12.3INCH(EMV) DECKLESS JBL11SP

main53101-0E500iAXUH7#..M,N202311-202401

NO PAINT REQ.,HYBRID SPECIAL EDITION

main53101-0E501iAXUH7#..M202402

NO PAINT REQ.,HYBRID SPECIAL EDITION

53101ACLIP, RADIATOR GRILLE

main90467-07215×2iGSU7#..S202009-202210

main90467-08229×38iAXUH7#,GSU7#..G,M,N201912-202210

53115BBRACKET, RADIATOR GRILLE

main53115-0E010iAXUH7#,TXUA7#..G,M,N202311

main53115-0E040iTXUA7#..S202210-202311

53115GCLIP, RADIATOR GRILLE BRACKET

main90467-05063-C0×2iAXUH7#,GSU7#201912-202210

BLACK

53395HSEAL, HOOD TO RADIATOR GRILLE

main53395-0E080iAXUH7#,GSU7#201912-202210

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

90109A0061

main90109-A0061

90167A0020

main90167-A0020

90167A0021

main90167-A0021

9017906362

main90179-06362

14 parts on this diagram · 3 diagrams in section
