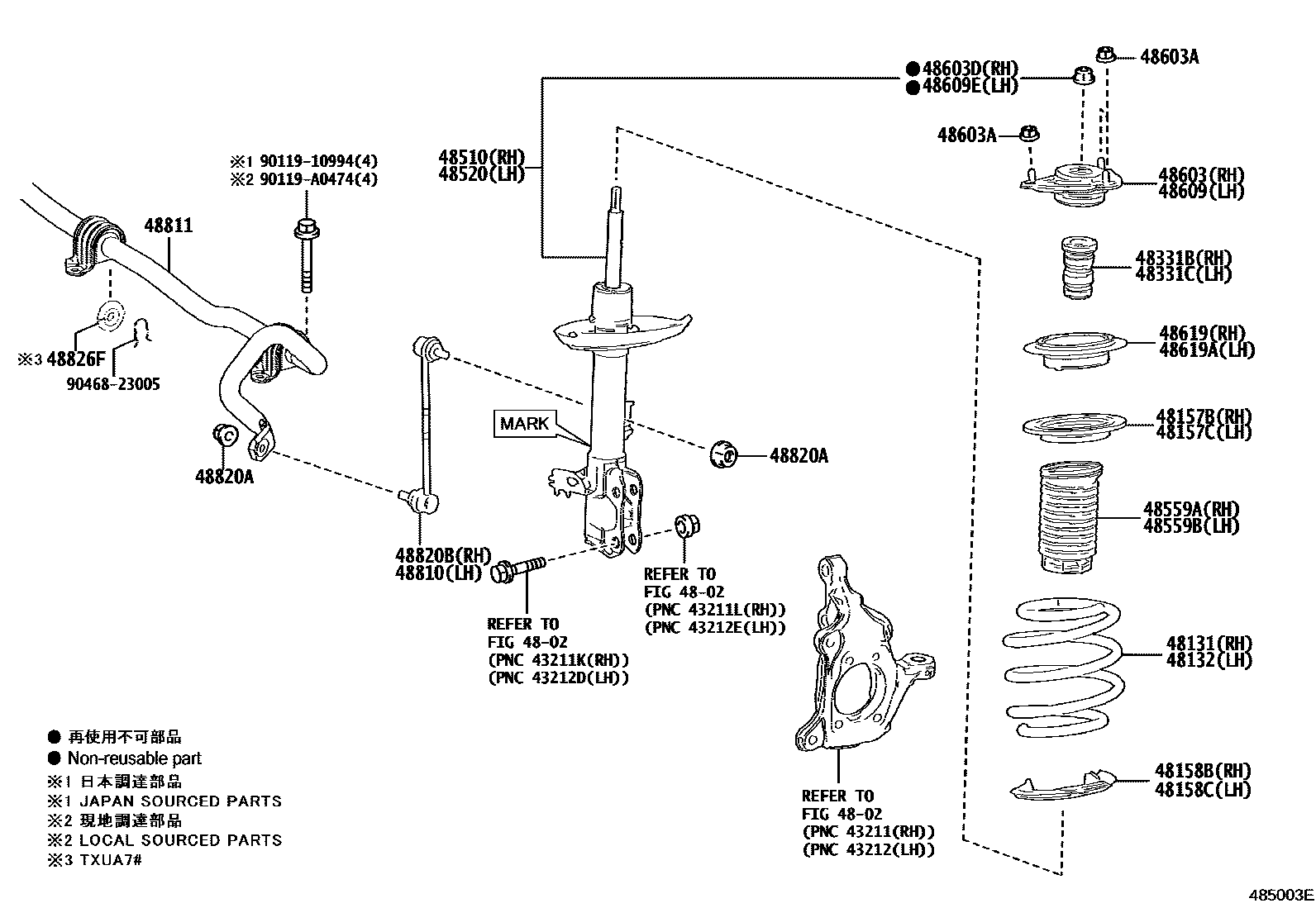

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0E350iGSU75..G,M,N;AXUH7#,GSU70..G201912-202210

main48131-0E370iAXUH7#,TXUA70..M,N202311

main48131-0E600iGSU70..S202009-202210

main48131-0E610iTXUA75..S202311

48132SPRING, FRONT COIL, LH

main48131-0E350iTXUA75..G,M,N;AXUH7#,TXUA70..G202210-202311

main48131-0E370iAXUH7#,TXUA70..M,N202210-202311

main48131-0E600iGSU70..S202009-202210

main48131-0E610iTXUA75..S202210-202311

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06220iAXUH7#,GSU7#201912-202210

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06220iTXUA75;AXUH7#,TXUA70..G,M,N202311

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06260iAXUH7#,GSU7#201912-202210

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06260iAXUH7#,GSU7#201912-202210

48331BBUMPER, FRONT SPRING, RH

main48331-0E080iAXUH7#,GSU7#201912-202210

main48331-0E100iAXUH7#,TXUA7#202306-202311

48331CBUMPER, FRONT SPRING, LH

main48331-0E080iAXUH7#,GSU7#201912-202210

main48331-0E100iAXUH7#,TXUA7#202306-202311

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z435iAXUH7#,GSU70..G,M,N201912-202210

MARK 48510-0E340

main48510-8Z436iGSU75..S202009-202210

MARK 48510-0E360

main48510-8Z437iGSU75..G,M,N201912-202210

MARK 48510-0E350

main48510-8Z486iTXUA70..S202210-202311

MARK 48510-0E530

main48510-8Z626iTXUA7#..G,M,N202210-202311

MARK 48510-0E580

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z286iAXUH7#202311

MARK 48520-0E340

main48520-8Z287iTXUA75..S202210-202311

MARK 48520-0E360

main48520-8Z288iGSU75..G,M,N201912-202210

MARK 48520-0E350

main48520-8Z330iTXUA70..S202210-202311

MARK 48520-0E530

main48520-8Z444iTXUA7#..G,M,N202311

MARK 48520-0E580

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-0R030iAXUH7#,GSU7#201912-202210

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-0R030iAXUH7#,GSU7#201912-202210

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0E090iTXUA70..S202311-202410

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-A0077×6iTXUA75;AXUH7#,TXUA70..G,M,N202311

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iAXUH7#,TXUA7#202210-202311

(J)

main90177-A0019iAXUH7#,TXUA7#202210-202311

(L)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0E090iAXUH7#,GSU7#201912-202210

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iAXUH7#,GSU7#201912-202210

(J)

main90177-A0019iTXUA70..S202311-202410

(L)

48619BEARING, STRUT MOUNTING, RH

main48619-0R050iAXUH7#,GSU7#201912-202210

48619ABEARING, STRUT MOUNTING, LH

main48619-0R050iAXUH7#,GSU7#201912-202210

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0E060iAXUH7#,TXUA7#202210-202311

main48820-0R050iAXUH7#,GSU7#201912-202210

48811BAR, STABILIZER, FRONT

main48804-0E010iAXUH7#,TXUA7#202210-202311

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-A0080×4iTXUA70..S202311-202410

(L)

main94151-21241×4iTXUA75;AXUH7#,TXUA70..G,M,N202311

(J)

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0E060iTXUA75;AXUH7#,TXUA70..G,M,N202311

main48820-0R050iAXUH7#,GSU7#201912-202210

48826FPROTECTOR, STABILIZER

main48826-0E060iTXUA70..S202311-202410

9011910994

main90119-10994

90119A0474

main90119-A0474

9046823005

main90468-23005

28 parts on this diagram · 1 diagram in section
