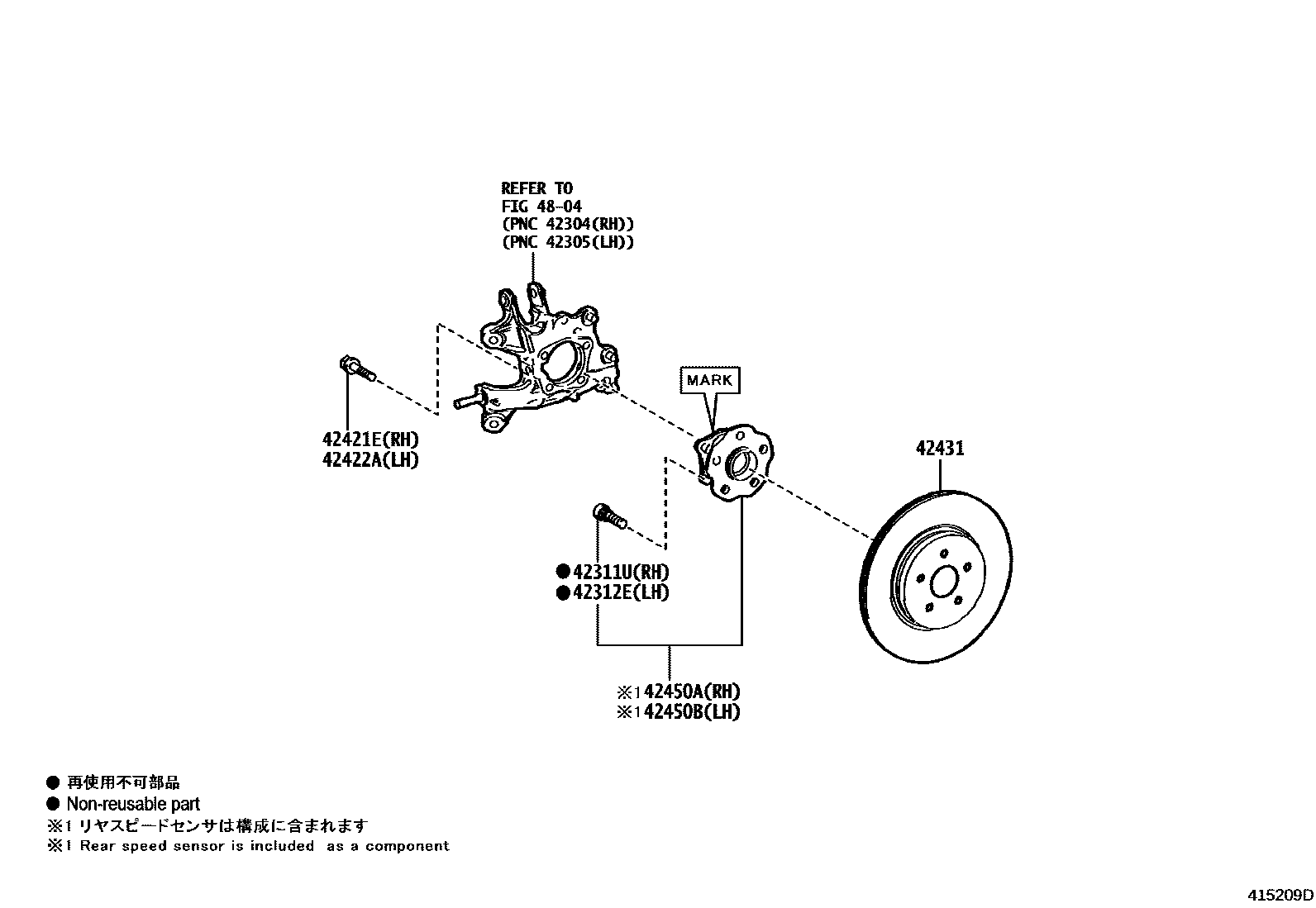

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iAXUH7#,GSU7#201912-202210

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iAXUH7#,GSU7#201912-202210

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-A0416×4iAXUH7#,GSU7#201912-202210

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-A0416×4iAXUH7#,GSU7#201912-202210

42431DISC, REAR

main42431-0E070×2iAXUH7#,GSU7#201912-202210

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-0E031iAXUH78,GSU75201912-202210

main42450-0E080iAXUH70,GSU70201912-202012

main42450-0E090iAXUH70,TXUA70..G,M,N202311

MARK=AISIN

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-0E031iAXUH78,TXUA75202311

main42450-0E080iAXUH70,GSU70201912-202012

main42450-0E090iAXUH70,TXUA70202210-202311

4804REAR SPRING & SHOCK ABSORBER

→ Go to FIG 48-04

8 parts on this diagram · 3 diagrams in section
