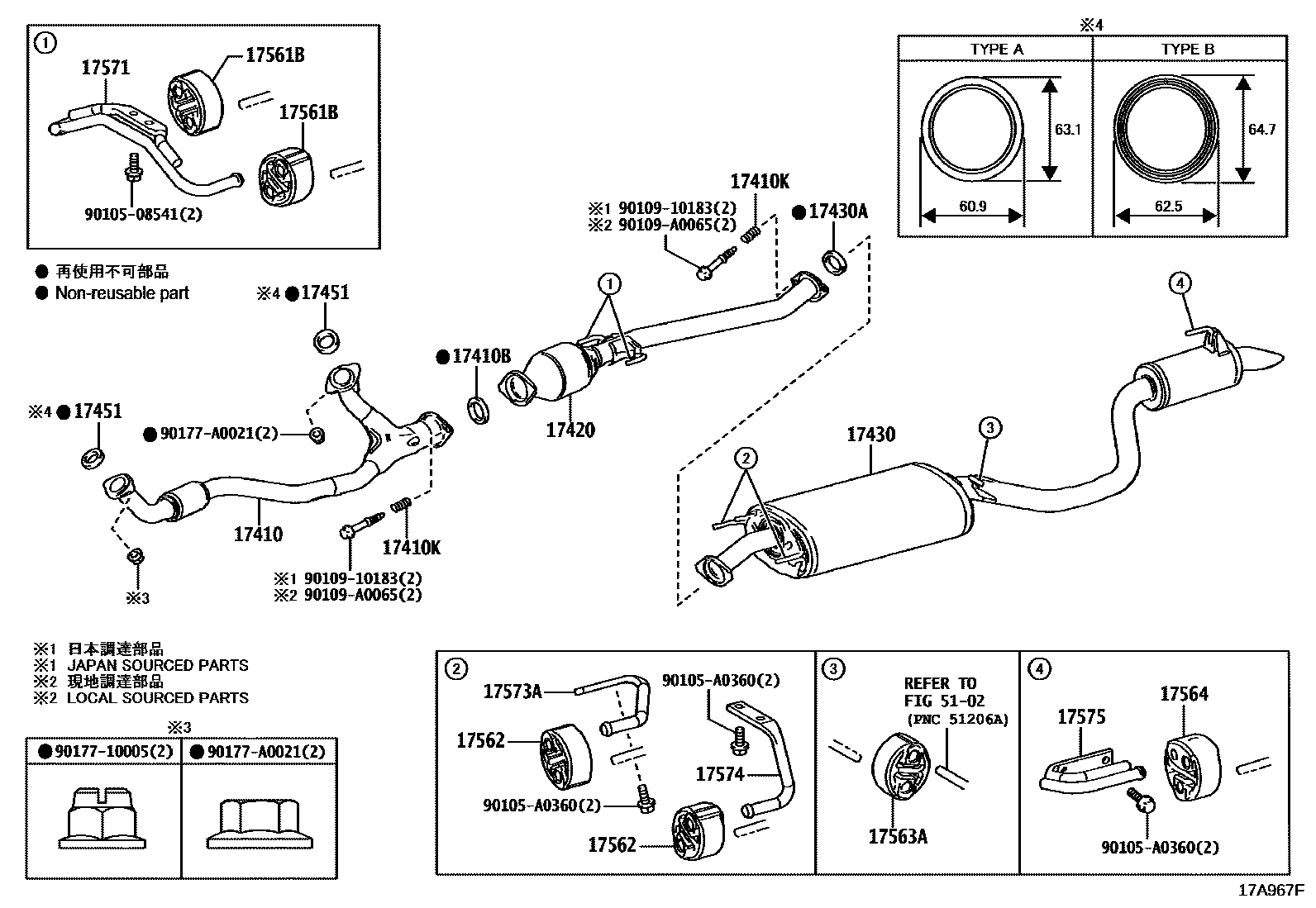

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17410KSPRING, EXHAUST PIPE
(J)
(L)
17420PIPE ASSY, EXHAUST, CENTER
17430PIPE ASSY, EXHAUST, TAIL
17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)
17451GASKET, EXHAUST PIPE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
5102SUSPENSION CROSSMEMBER & UNDER COVER
9010508541
main90105-08541
90105A0360
main90105-A0360
9010910183
main90109-10183
90109A0065
main90109-A0065
9017710005
main90177-10005
90177A0021
main90177-A0021
22 parts on this diagram · 4 diagrams in section
