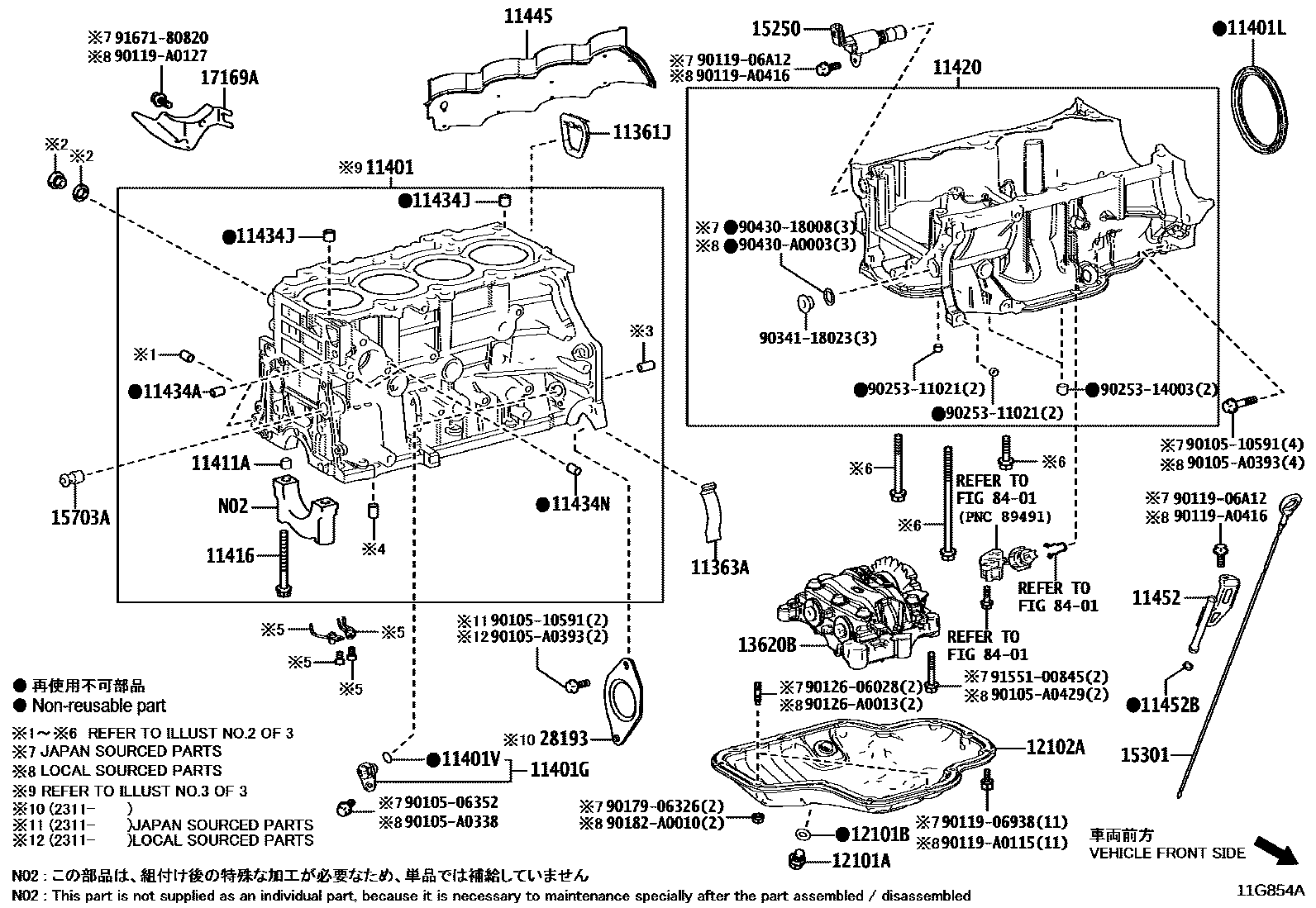

11361JCOVER, FLYWHEEL HOUSING UNDER

main11361-0P030i201912-202210

main11361-25010i202002-202410

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-33010i202002-202410

11401BLOCK SUB-ASSY, CYLINDER

main11401-09A11i202201-202210

(L)

main11401-09A11i201912-202201

main11401-80062i202201-202210

(J)

main11410-25190i202210-202410

(J)

main11410-29515i202002-202301

*636T/P A:REF.ILLUST

main11410-29515i202002-202208

*489,(J),T/P A REF.

main11410-29685i202301-202311

*636T/P B:REF.ILLUST

main11410-F0110i202210-202410

(L)

main11410-F9060i202002-202208

*489,(L),T/P A REF.

main11410-F9340i202208-202311

*489T/P B:REF.ILLUST

main11410-F9340i202311

*489,769T/PB:REF ILL

11401GSENSOR, CRANK POSITION

main90919-05094i202210-202410

(J)

main90919-05095i202002-202311

*636

main90919-05100i201912-202210

main90919-A5005i202210-202410

(L)

main90919-A5006i202311

*489 OR *769

main90919-A5006i202002-202311

*489

11401LSEAL, ENGINE REAR OIL

main90311-90010i202210-202410

(J)

main90311-90010i202002-202311

*636

main90311-A0035i202210-202410

(L)

main90311-A0035i202002-202311

*489

main90311-A0035i202311

*489 OR *769

11401VO-RING, CRANK POSITION SENSOR

main90301-11039i202002-202311

*636,*489

main90301-11039i202311-202410

main90301-11039i202311

*636,*489 OR *769

main90301-14016i201912-202210

11411APIN, RING(FOR CYLINDER BLOCK NO.1 )

main90253-14003i202002-202210

*489,*636

main90253-14003i202210-202311

*636,*489

main90253-14003i202311

*636,*489 OR *769

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90105-A0354i202210-202410

NO.2,(L)

main90105-A0477i202210-202410

NO.3,(L)

main90910-02153i202201-202210

(J)

main90910-02197i202002-202210

*636,*489,(J)

main90910-02197i202210-202311

*636

main90910-02203i202311-202410

NO.1,(J)

main90910-A2004i201912-202210

(L)

main90910-A2015i202311

*489 OR *769

main90910-A2015i202002-202210

*489,(L)

main90910-A2015i202210-202311

*489

main90910-A2020i202210-202410

NO.1,(L)

main91552-F1040i202210-202410

NO.2,(J)

main91552-F1070i202210-202410

NO.3,(J)

11420CRANKCASE ASSY, STIFFENING

main11420-25010i202002-202311

*636

main11420-25040i202210-202410

(J)

main11420-F0010i202002-202311

*489

main11420-F0010i202311

*489 OR *769

main11420-F0050i202210-202410

(L)

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i201912-202210

L=12,OD=4.0

main90250-06003i202002-202311

L=14,OD=6,*636,*489,(J)

main90250-06003i202210-202410

L=14,OD=6,(J)

main90250-06003i202311

L=14,OD=6,*636,*489 OR *769(J)

main90250-A0028i202210-202410

L=14,OD=6,(L)

main90250-A0028i202002-202311

L=14,OD=6,*489,(L)

main90250-A0028i202311

L=14,OD=6,*489 OR *769(L)

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-14003i202311

*636,*489 OR *769

main90253-14003i202002-202311

*636,*489

main90253-14003i202311-202410

11434NPIN, STRAIGHT(FOR WATER INLET HOUSING)

main90250-06003i202210-202410

(J)

main90250-06003i202002-202311

*636,*489,(J)

main90250-06003i202311

*636,*489 OR *769(J)

main90250-A0028i202210-202410

(L)

main90250-A0028i202002-202311

*489,(L)

main90250-A0028i202311

*489 OR *769(L)

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0P020i201912-202210

main11445-25010i202002-202311

*636

main11445-F0010i202002-202311

*489

main11445-F0010i202311

*489 OR *769

11452GUIDE, OIL LEVEL GAGE

main11452-0P030i201912-202210

main11452-25010i202002-202311

*636

main11452-25030i202210-202410

(J)

main11452-F0010i202002-202311

*489

main11452-F0010i202311

*489 OR *769

main11452-F0050i202210-202410

(L)

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-A0062i201912-202210

main96741-19010i202002-202311

*489,*636

main96741-19010i202311-202410

main96741-19010i202311

*636,*489 OR *769

12101PAN SUB-ASSY, OIL

main12101-0P050i201912-202210

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i202002-202311

*636

main90341-12012i202210-202410

(J)

main90341-A0007i202210-202410

(L)

main90341-A0007i201912-202210

main90341-A0007i202311

*489 OR *769

main90341-A0007i202002-202311

*489

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i201912-202410

(J)

main90430-12031i202002-202311

*636

main90430-A0006i202002-202311

*489

main90430-A0006i201912-202410

(L)

main90430-A0006i202311

*489 OR *769

12102APAN SUB-ASSY, OIL, NO.2

main12102-0P041i201912-202210

main12102-25010i202002-202311

*636

main12102-25040i202210-202410

(J)

main12102-F0010i202311

*489 OR *769

main12102-F0010i202002-202311

*489

main12102-F0040i202210-202410

(L)

13620BBALANCER ASSY, ENGINE

main13620-25010i202002-202311

*636

main13620-25031i202210-202410

(J)

main13620-F0010i202002-202311

*489

main13620-F0010i202311

*489 OR *769

main13620-F0030i202311-202410

main13620-F0030i202210-202311

(L)

15250VALVE ASSY, OIL PRESSURE CONTROL

main15250-25010i202002-202210

*636,*489

main15250-25010i202210-202301

*489

main15250-25010i202210-202311

*636

main15250-25010i202301-202311

*489,(J)

main15250-25010i202311

*636,*489 OR *769(J)

main15250-25020i202404-202410

(J)

main15250-25020i202210-202410

main15250-F0020i202311

*489 OR *769(L)

main15250-F0020i202301-202311

*489,(L)

main15250-F0030i202404-202410

(L)

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0P040i201912-202210

main15301-25030i202002-202311

*636

main15301-25060i202210-202410

(J)

main15301-F0010i202002-202311

*489

main15301-F0010i202311

*489 OR *769

main15301-F0040i202210-202410

(L)

15703AVALVE SUB-ASSY, OIL NOZZLE

main15703-25011i202002-202311

*489,*636

main15703-25011i202311-202410

main15703-25011i202311

*636,*489 OR *769

17169AINSULATOR, EXHAUST MANIFOLD HEAT, NO.3

main17169-25030i202311

*636

main17169-25030i202002-202311

*636,*489

main17169-25030i202311-202406

*489 OR *769

main17169-25030i202406

*489 OR *769(J)

main17169-F0050i202406

*489 OR *769(L)

28193INSULATOR, STARTER HOLE

main28193-F2020i202311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506352

main90105-06352

9010510591

main90105-10591

90105A0338

main90105-A0338

90105A0393

main90105-A0393

90105A0429

main90105-A0429

9011906938

main90119-06938

9011906A12

main90119-06A12

90119A0115

main90119-A0115

90119A0127

main90119-A0127

90119A0416

main90119-A0416

9012606028

main90126-06028

90126A0013

main90126-A0013

9017906326

main90179-06326

90182A0010

main90182-A0010

9025311021

main90253-11021

9025314003

main90253-14003

9034118023

main90341-18023

9043018008

main90430-18008

90430A0003

main90430-A0003

9155100845

main91551-00845

9167180820

main91671-80820
