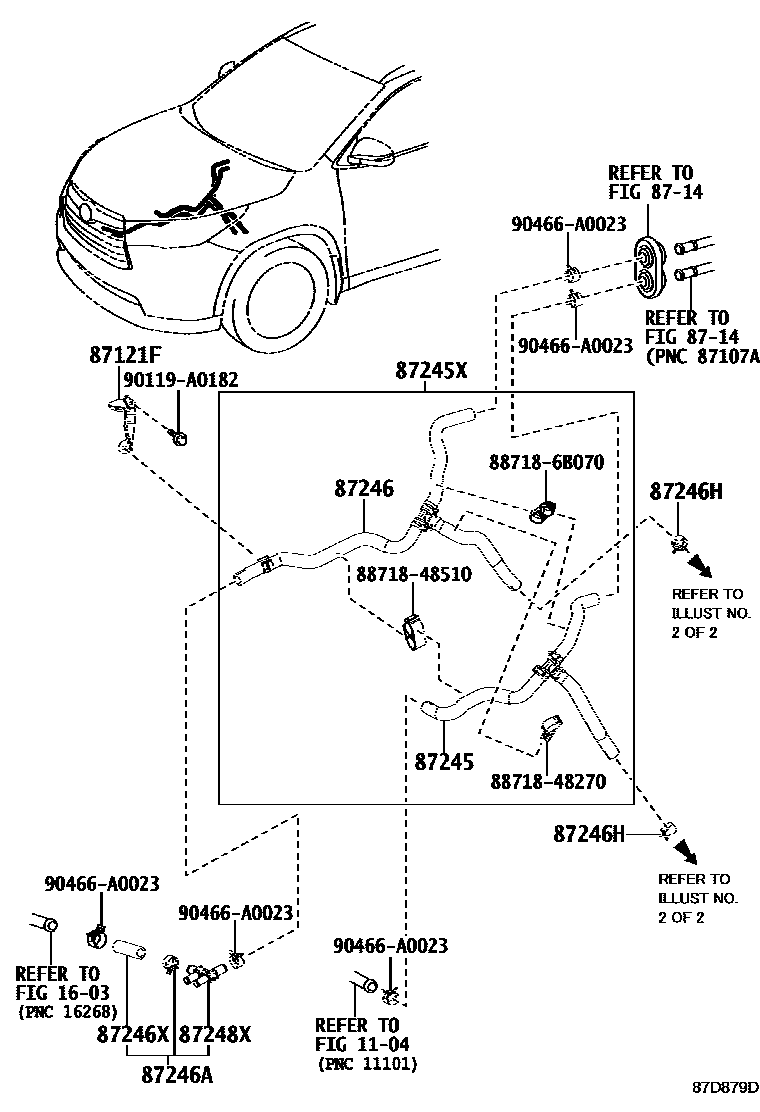

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1FRONT 0003 1FRONT 0004 1FRONT 0005 1FRONT:W(STOP & START SYSTEM) 0006 1FRONT 0007 1FRONT 0008 1REAR 0009 1REAR 0010 1REAR 0011 1REAR

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

87121FBRACKET, HEATER

main87121-0E010iASU50201611

main87121-0E040iGSU5#201611

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87209-0E160iGSU5#201312-201611

main87209-0E180iASU50201312-201611

main87209-0E450iASU50201611

main87245-0E220iGVU58201401-201611

main87245-0E460iGVU58201611

87245XHOSE, HEATER WATER

main87209-0E130iGSU5#201312-201611

main87209-0E150iASU50201312-201611

87246HOSE, HEATER WATER, OUTLET

main87209-0E170iGSU5#201312-201611

main87209-0E200iASU50201312-201611

main87209-0E480iASU50201611

main87245-0E210iGVU58201401-201611

main87245-0E480iGVU58201611

87246AHOSE, HEATER WATER, OUTLET A

main87209-0E360iASU50201312-201611

87246HCLIP OR CLAMP(FOR HEATER WATER HOSE)

main90466-A0022×2iASU50,GSU5#,GVU58201611

87246XHOSE, HEATER WATER

main87245-0E270iASU50201312-201611

L=60

87248XPIPE, HEATER WATER

main87248-06020iASU50201312-201611

main87248-0E150iGSU5#201611

8871848270PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48270

8871848510PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48510

887186B070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-6B070

90119A0182

main90119-A0182

90466A0023

main90466-A0023

16 parts on this diagram · 11 diagrams in section
