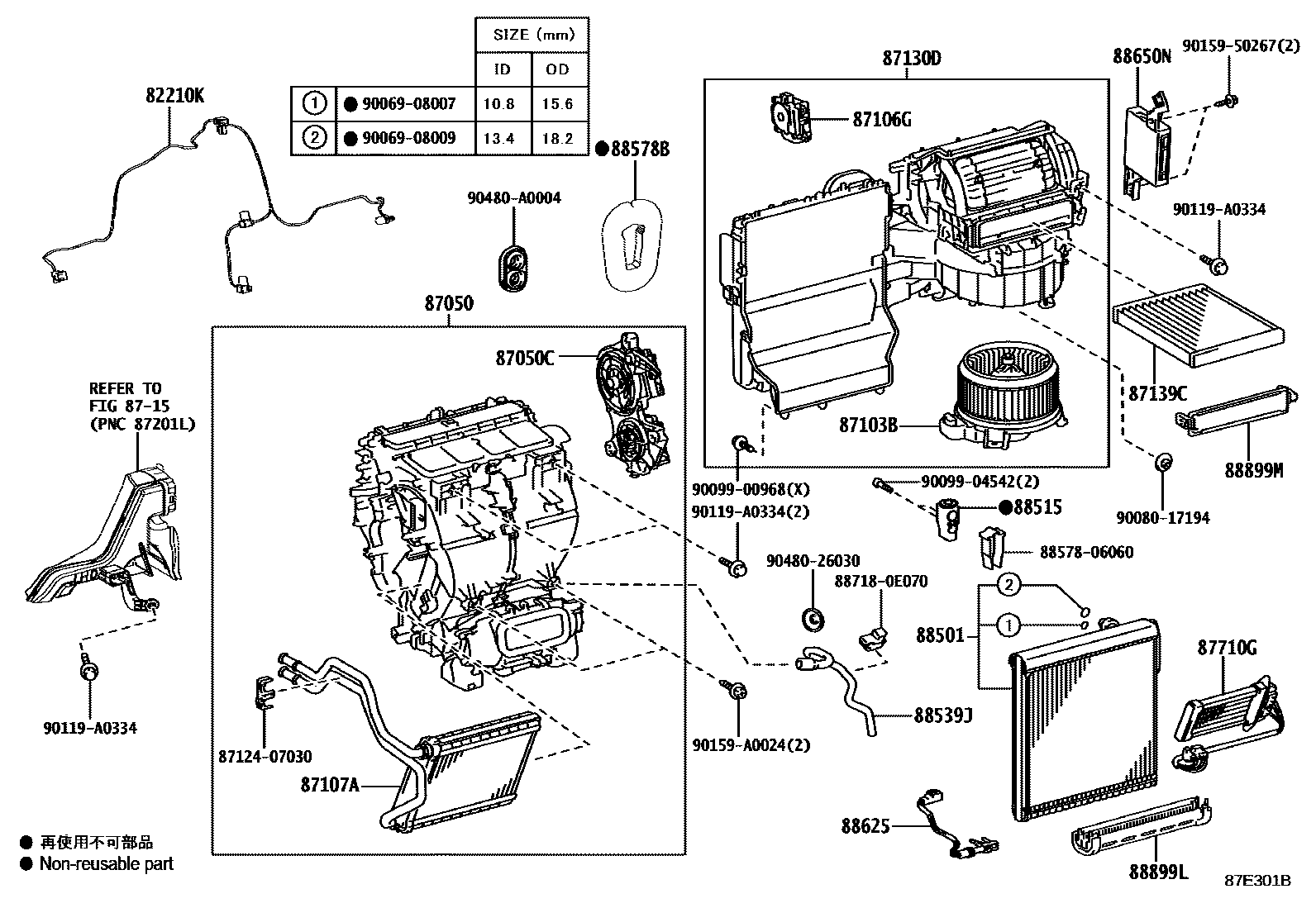

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
LE PACKAGE
87050RADIATOR ASSY, AIR CONDITIONER
LE PACKAGE&FRONT AIR CONDITIONER-AUTO
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106GSERVO SUB-ASSY, DAMPER(FOR BLOWER)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
POLLEN FILTER
DEODORANT FILTER
8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
LE PACKAGE
88515VALVE, COOLER EXPANSION
88539JHOSE, DRAIN COOLER
88578BPACKING, COOLING UNIT, NO.1
88625THERMISTOR, COOLER, NO.1
LE PACKAGE
LE PACKAGE
88650NAMPLIFIER ASSY, AIR CONDITIONER
LE PACKAGE&WINDSHIELD DEICER-WITH(WIPER DEICER)&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO
LE PACKAGE&WINDSHIELD DEICER-WITH(WIPER DEICER)&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO
LE PACKAGE
WINDSHIELD DEICER-WITH(WIPER DEICER)
WINDSHIELD DEICER-WITH(WIPER DEICER)
WINDSHIELD DEICER-WITH(WIPER DEICER)
LE PACKAGE&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO
LE PACKAGE&FRONT AIR CONDITIONER-AUTO&REAR AIR CONDITIONER-AUTO
88899LPARTS, COOLING UNIT
MEXICO
88899MPLATE, COVER(FOR AIR FILTER)
8712407030CLAMP, HEATER
main87124-07030
8857806060PAKING, COOLER AIR DUCT
main88578-06060
887180E070PIPE, COOLER REFRIGERANT SUCTION, NO.2
main88718-0E070
9006908007
main90069-08007
9006908009
main90069-08009
9008017194
main90080-17194
9009900968
main90099-00968
9009904542
main90099-04542
90119A0334
main90119-A0334
9015950267
main90159-50267
90159A0024
main90159-A0024
9048026030
main90480-26030
90480A0004
main90480-A0004
31 parts on this diagram · 3 diagrams in section
