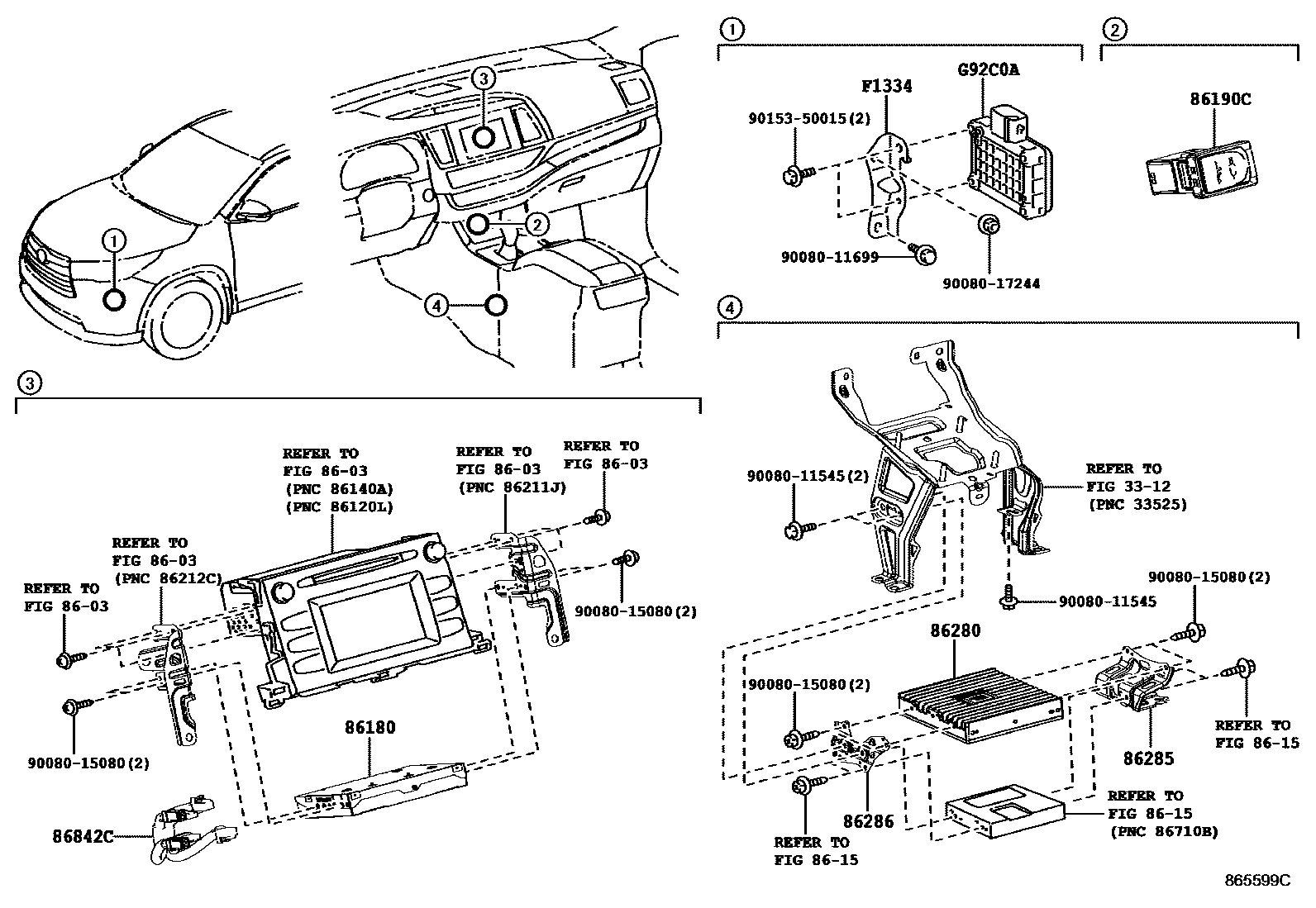

RADIO RECEIVER & AMPLIFIER & CONDENSER
3312SHIFT LEVER & RETAINER
8603NAVIGATION & FRONT MONITOR DISPLAY
8615TELEPHONE & MAYDAY
86180TUNER ASSY, STEREO COMPONENT
main86180-0E011iGSU5#,GVU58..G; GSU5#,GVU58..G,M; GSU5#,GVU58..M; GSU5#..N; GSU50..G; GSU50..G,M; GSU50..M; GVU58;GSU5#..G,M201312-201611
PIONEER; PIONEER,AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); PIONEER,AUDIO-8INCH MONITOR AVN 6SPEKAER; PIONEER,CANADA SPEC; PIONEER,CANADA SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); PIONEER,MEXICO SPEC; PIONEER,MEXICO SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); PIONEER,MEXICO SPEC&AUDIO-8INCH MONITOR AVN 6SPEKAER; PIONEER,USA POSSESSION SPEC; PIONEER,USA POSSESSION SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); PIONEER,USA POSSESSION SPEC&AUDIO-8INCH MONITOR AVN 6SPEKAER
PIONEER,CANADA; PIONEER,CANADA&AUDIO-8INCH AVN 6SPEAKER W(NIS); PIONEER,CANADA&AUDIO-8INCH DA 6SPEAKER W(NIS)
86190CADAPTER ASSY, STEREO JACK, NO.1
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM)
AUDIO-8INCH DA 6SPEAKER W(NIS)
86285BRACKET, AMPLIFIER, NO.1
AUDIO-8INCH DA 6SPEAKER W(NIS)
AUDIO-8INCH DA 6SPEAKER W(NIS)
86286BRACKET, AMPLIFIER, NO.2
AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); AUDIO-8INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); MAYDAY SYSTEM-WITH
86842CWIRE, NAVIGATION
main86842-0E010iGSU5#,GVU58..G; GSU5#,GVU58..G,M; GSU5#,GVU58..M; GSU5#..N; GSU50..G; GSU50..G,M; GSU50..M; GVU58;GSU5#..G,M201312-201611
AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); AUDIO-8INCH MONITOR AVN 6SPEKAER; CANADA SPEC; MEXICO SPEC; MEXICO SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); MEXICO SPEC&AUDIO-8INCH MONITOR AVN 6SPEKAER; USA POSSESSION SPEC; USA POSSESSION SPEC&AUDIO-6.1INCH *DA(*DLX) 6SPEKAER W(HD-FM/AM); USA POSSESSION SPEC&AUDIO-8INCH MONITOR AVN 6SPEKAER
F1334BRACKET, CONVERTER CONTROL, NO.1
AUDIO-8INCH DA 6SPEAKER W(NIS); MEXICO
G92C0ACONVERTER ASSY, ECO-RUN VEHICLE
AUDIO-8INCH DA 6SPEAKER W(NIS); MEXICO
9008011545
main90080-11545
9008011699
main90080-11699
9008015080
main90080-15080
9008017244
main90080-17244
9015350015
main90153-50015
16 parts on this diagram · 3 diagrams in section
