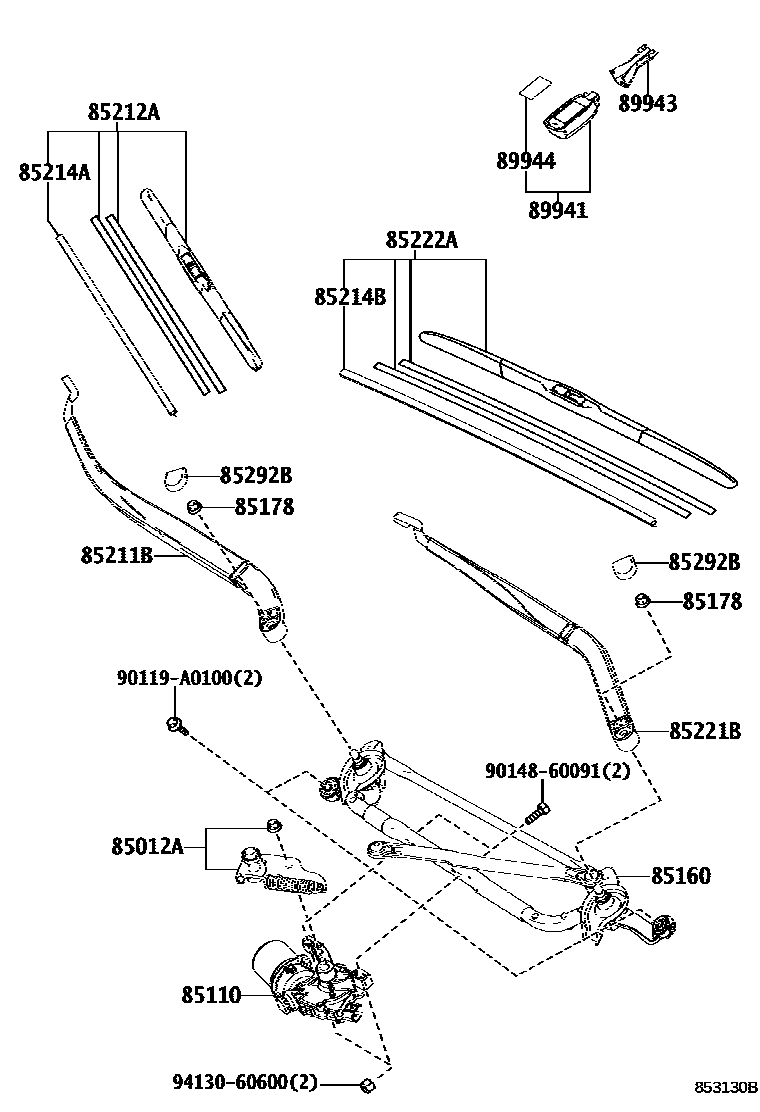

WINDSHIELD WIPER

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-0E010iASU50,GSU5#,GVU58201312-201611

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0E060iASU50,GSU5#,GVU58201312-201611

85160LINK ASSY, WINDSHIELD WIPER

main85150-0E050iASU50,GSU5#,GVU58201312-201611

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-A0017iASU50,GSU5#,GVU58201312-201611

85211BARM, FRONT WIPER, RH

main85211-0E050iASU50,GSU5#,GVU58201312-201611

85212ABLADE, FR WIPER, RH

main85212-0E050iASU50,GSU5#,GVU58201312-201611

85214ARUBBER, WIPER, RH

main85214-0E140iASU50,GSU5#,GVU58201312-201611

85214BRUBBER, WIPER, LH

main85214-0E151iASU50,GSU5#,GVU58201312-201611

85221BARM, FRONT WIPER, LH

main85221-0E050iASU50,GSU5#,GVU58201312-201611

85222ABLADE, FR WIPER, LH

main85222-0E050iASU50,GSU5#,GVU58201312-201611

85292BCAP, FRONT WIPER ARM HEAD

main85292-AA010iASU50,GSU5#,GVU58201312-201611

89941SENSOR, RAIN

main89941-52010

89943COVER, RAIN SENSOR

main89943-76010

89944TAPE, RAIN SENSOR

main89944-42010

90119A0100

main90119-A0100

9014860091

main90148-60091

9413060600

main94130-60600

17 parts on this diagram · 1 diagram in section
