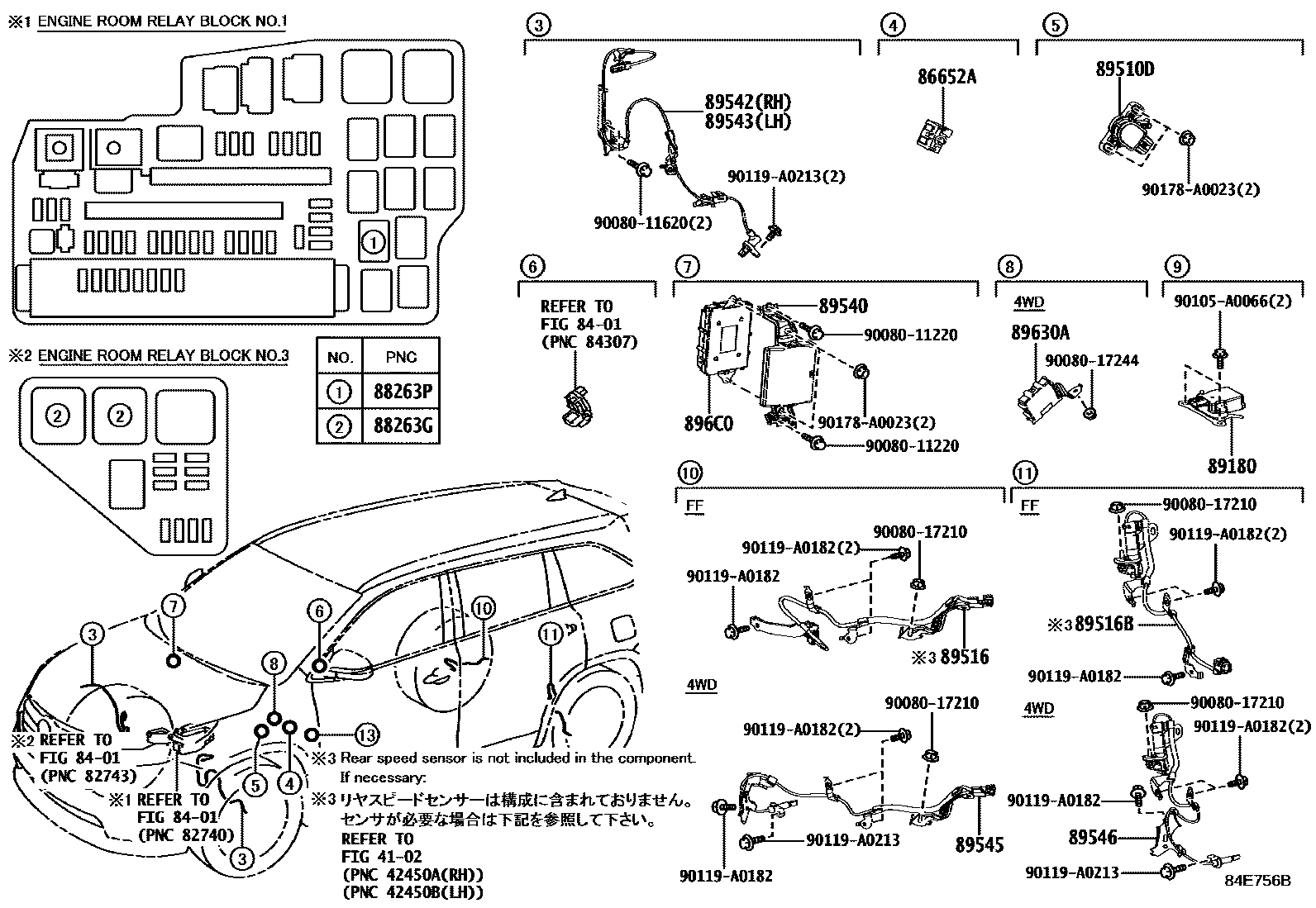

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iASU50,GSU5#,GVU58; GSU50201611-201911

88263GRELAY, SKID CONTROL

main88263-21010×2iGVU58201401-201611

88263PRELAY, STOP LAMP CONTROL

main90084-98032iGSU50,GVU58..G; GSU55201312-201611

PRE-COLLISION SYSTEM-WITH

89180SENSOR ASSY, YAWRATE

main89180-48080iGVU58201401-201611

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47050iGVU58201401-201611

89516WIRE, SKID CONTROL SENSOR

main89516-0E030iASU50,GSU50201312-201611

89516BWIRE, SKID CONTROL SENSOR

main89516-0E040iASU50,GSU50201312-201611

89540COMPUTER ASSY, SKID CONTROL

main89540-48370iGVU58201401-201611

main89540-48490iGVU58201611-201809

main89540-48491iGVU58201809

89542SENSOR, SPEED, FRONT RH

main89542-0E020iASU50,GSU5#,GVU58201312-201509

main89542-0E080iASU50,GSU5#,GVU58201510-201611

89543SENSOR, SPEED, FRONT LH

main89543-0E020iASU50,GSU5#,GVU58201312-201509

main89543-0E080iASU50,GSU5#,GVU58201510-201611

89545SENSOR, SPEED, REAR RH

main89545-0E020iGSU55,GVU58201312-201611

89546SENSOR, SPEED, REAR LH

main89546-0E020iGSU55,GVU58201312-201611

89630ACOMPUTER ASSY, 4WD

main89630-48020iGSU55201312-201611

896C0SUPPLY ASSY, BRAKE CONTROL POWER W/BRACKET

main896C0-48010iGVU58201401-201611

9008011220

main90080-11220

9008011620

main90080-11620

9008017210

main90080-17210

9008017244

main90080-17244

90105A0066

main90105-A0066

90119A0182

main90119-A0182

90119A0213

main90119-A0213

90178A0023

main90178-A0023

24 parts on this diagram · 1 diagram in section
