REAR COMBINATION LAMP

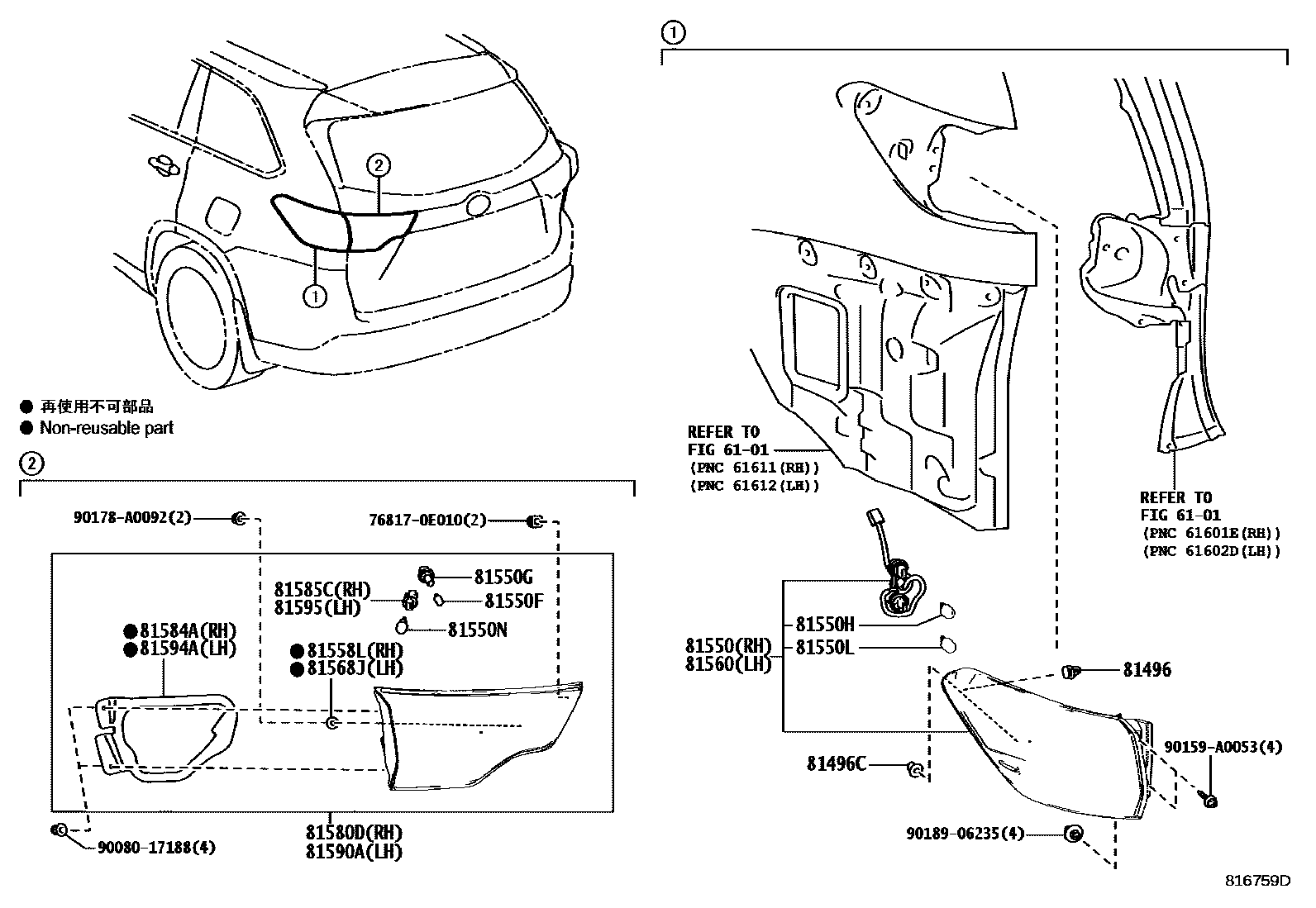

Parts diagram

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-0E010i201312-201611

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-0E020i201312-201611

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E100i201312-201611

main81550-0E160i201611-201710

main81550-0E161i201710

81550FBULB, TAILLAMP

main90981-11069i201312-201611

12V 5W

81550GSOCKET, TAILLAMP

main90075-60077i201312-201611

81550HBULB, TAIL & STOP LAMP

main90981-13044i201312-201611

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021i201312-201611

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059i201312-201611

12V 16W

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040i201312-201611

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E100i201312-201611

main81560-0E160i201611-201710

main81560-0E161i201710

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040i201312-201611

81580DLAMP ASSY, REAR, RH

main81580-0E050i201312-201611

main81580-0E120i201611

81584AGASKET, REAR LAMP RH

main81584-0E050i201312-201611

main81584-0E120i201611

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-0E120i201312-201611

81590ALAMP ASSY, REAR, LH

main81590-0E060i201312-201611

main81590-0E120i201611

81594AGASKET, REAR LAMP LH

main81594-0E060i201312-201611

main81594-0E120i201611

81595SOCKET & WIRE, REAR LAMP, LH

main81585-0E120i201312-201611

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

9008017188

main90080-17188

90159A0053

main90159-A0053

90178A0092

main90178-A0092

9018906235

main90189-06235

23 parts on this diagram · 2 diagrams in section
