HEADLAMP

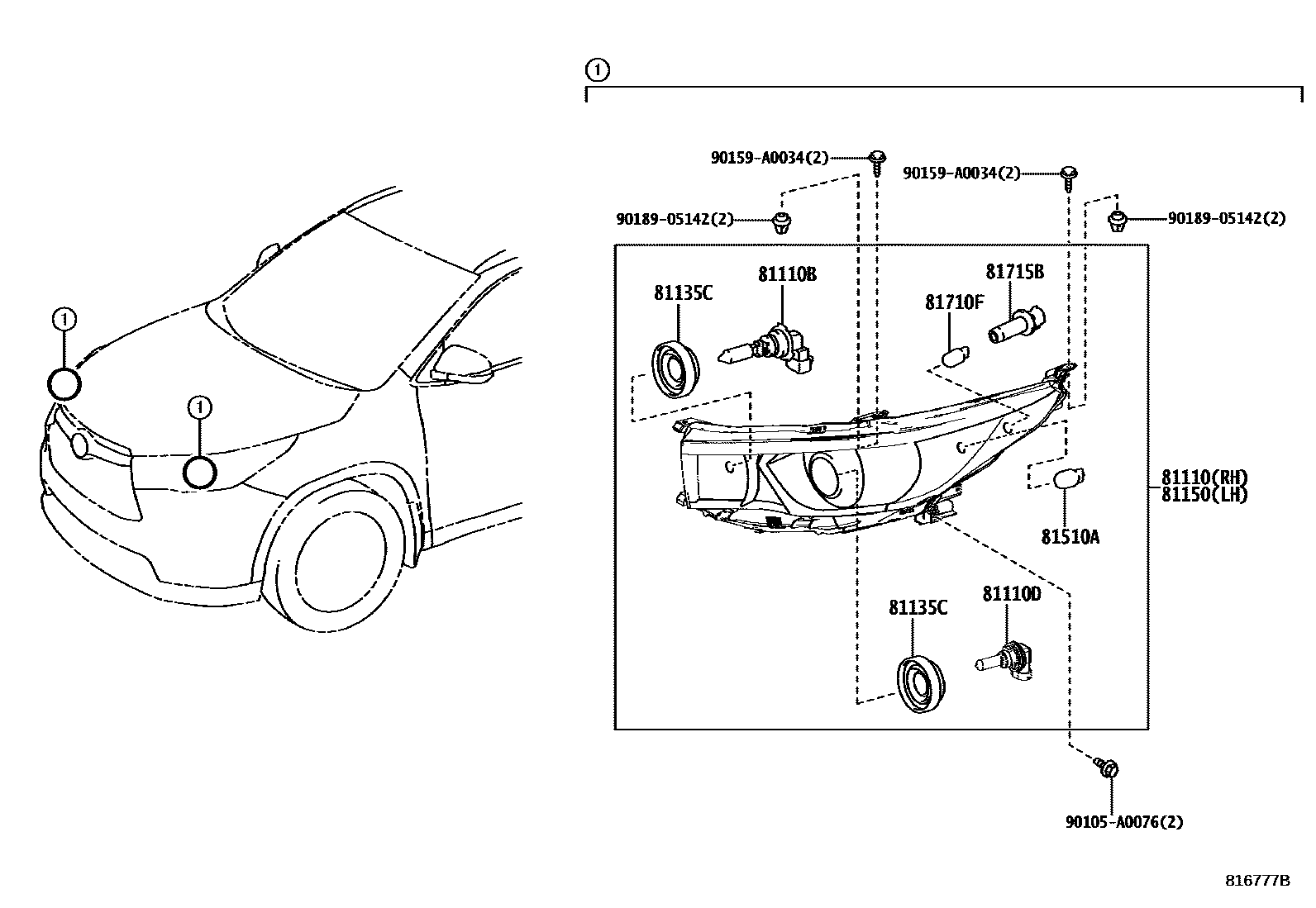

Parts diagram

81110HEADLAMP ASSY, RH

main81110-0E180i201312-201611

main81110-0E330i201611

main81110-0E360i201611-201809

CANADA

main81110-0E362i201809

CANADA

main81110-0E250i201312-201611

HEADLAMP-HALOGEN(SMOKE); HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)

main81110-0E390i201611-201809

CANADA&SE PACKAGE; SE PACKAGE

main81110-0E560i201809

CANADA&SE PACKAGE; SE PACKAGE

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2i201312-201611

12V65W(SAE),60W(ECE)

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075×2i201312-201611

12V 55W,HALOGEN

81135CCOVER, HEADLAMP BACK, NO.1

main90075-65006×4i201312-201611

81150HEADLAMP ASSY, LH

main81150-0E180i201312-201611

main81150-0E330i201611

main81150-0E360i201611-201809

CANADA

main81150-0E362i201809

CANADA

main81150-0E250i201312-201611

HEADLAMP-HALOGEN(SMOKE); HEADLAMP-HALOGEN(SMOKE),WITH(*AHB)

main81150-0E390i201611-201809

CANADA&SE PACKAGE; SE PACKAGE

main81150-0E560i201809

CANADA&SE PACKAGE; SE PACKAGE

81510ABULB, FRONT TURN SIGNAL & PARKING LAMP

main90981-15024×2i201312-201611

12V 28/8W

81710FBULB, FRONT SIDE MAKER LAMP

main90981-11069×2i201312-201611

main99132-12050×2i201611

CANADA&SE PACKAGE; SE PACKAGE

81715BSOCKET & WIRE, FRONT SIDE MARKER LAMP

main81128-06470×2i201312-201611

90105A0076

main90105-A0076

90159A0034

main90159-A0034

9018905142

main90189-05142

11 parts on this diagram · 2 diagrams in section
