BATTERY CARRIER

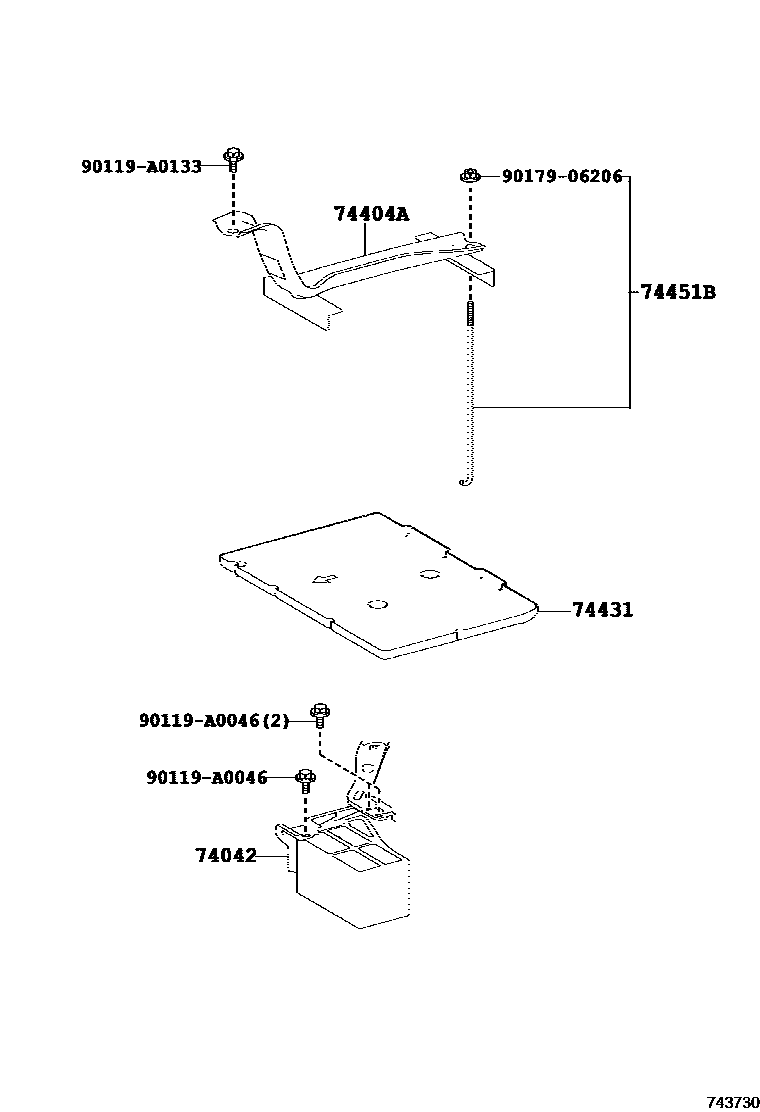

Parts diagram

74042BRACKET SUB-ASSY, BATTERY

main74402-0E010i201312-201611

74404ACLAMP SUB-ASSY, BATTERY

main74404-0E040i201312-201611

74431TRAY, BATTERY

main74431-0T010i201312-201611

74451BBOLT, BATTERY CLAMP

main74451-06011i201312-201611

90119A0046

main90119-A0046

90119A0133

main90119-A0133

9017906206

main90179-06206

7 parts on this diagram · 2 diagrams in section
