FRONT SEAT & SEAT TRACK

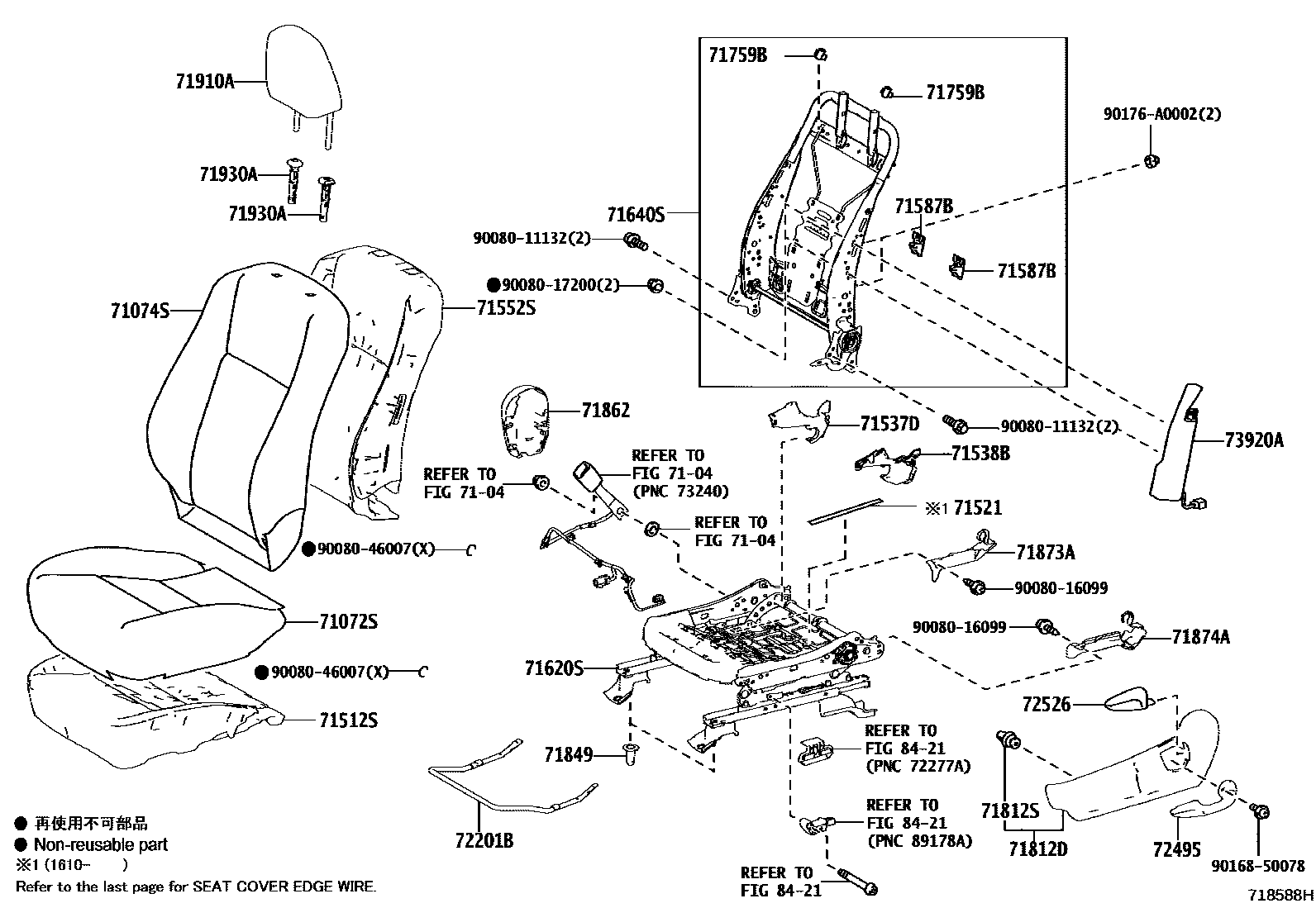

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-0E270-B2i201312-201911
GRAY,TRIM1#
main71072-0E270-C1i201312-201911
BLACK,TRIM2#
main71072-0E290-A3i201401-201611
FLAXEN,TRIM0#
main71072-0E290-B1i201401-201611
GRAY,TRIM1#
main71072-0E290-C1i201401-201611
BLACK,TRIM2#
main71072-0E320-A2i201312-201611
FLAXEN,TRIM0#
main71072-0E320-A3i201611-201808
FLAXEN,TRIM0#
main71072-0E320-B1i201312-201611
GRAY,TRIM1#
main71072-0E320-B2i201611-201808
GRAY,TRIM1#
main71072-0E320-C1i201312-201611
BLACK,TRIM2#
main71072-0E320-C2i201611-201808
BLACK,TRIM2#
main71072-0E322-A4i201809-201911
FLAXEN,TRIM0#
main71072-0E322-B3i201809-201911
GRAY,TRIM1#
main71072-0E322-C3i201809-201911
BLACK,TRIM2#
main71072-0E340-A2i201312-201611
FLAXEN,TRIM0#
main71072-0E340-A3i201611-201910
FLAXEN,TRIM0#
main71072-0E340-B1i201312-201611
GRAY,TRIM1#
main71072-0E340-B2i201611-201910
GRAY,TRIM1#
main71072-0E340-C1i201312-201611
BLACK,TRIM2#
main71072-0E340-C2i201611-201910
BLACK,TRIM2#
main71072-0E340-E1i201611-201910
BROWN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-0E280-B1i201312-201611
GRAY,TRIM1#
main71074-0E280-C1i201312-201611
BLACK,TRIM2#
main71074-0E300-A2i201401-201611
FLAXEN,TRIM0#
main71074-0E300-B1i201401-201611
GRAY,TRIM1#
main71074-0E300-C1i201401-201611
BLACK,TRIM2#
main71074-0E320-A1i201312-201611
FLAXEN,TRIM0#
main71074-0E320-B0i201312-201611
GRAY,TRIM1#
main71074-0E320-C0i201312-201611
BLACK,TRIM2#
main71074-0E330-A1i201312-201611
FLAXEN,TRIM0#
main71074-0E330-B0i201312-201611
GRAY,TRIM1#
main71074-0E330-C0i201312-201611
BLACK,TRIM2#
main71074-0E330-E0i201611
BROWN,TRIM4#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71502-0E040i201312-201611
main71512-0E130i201312-201611
main71512-0E150i201401-201611
main71512-0E160i201312-201611
71521PAD, FRONT SEAT CUSHION SILENCER, A
main71521-0E010i201610-201611
71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH
main71537-0R020-A0i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71537-0R020-A0i201312-201611
FLAXEN,TRIM0#
main71537-0R020-A0i201312-201611
LE PACKAGE,FLAXEN,TRIM0#
main71537-0R020-A0i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71537-0R020-B0i201312-201611
GRAY,TRIM1#
main71537-0R020-C0i201312-201611
BLACK,TRIM2#
main71537-0R020-C0i201611
BLACK,TRIM2#,4#
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
main71538-0R020-A0i201312-201611
FLAXEN,TRIM0#
main71538-0R020-A0i201312-201611
LE PACKAGE,FLAXEN,TRIM0#
main71538-0R020-A0i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71538-0R020-A0i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71538-0R020-B0i201312-201611
GRAY,TRIM1#
main71538-0R020-C0i201312-201611
BLACK,TRIM2#
main71538-0R020-C0i201611
BLACK,TRIM2#,4#
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71506-0E010i201312-201611
main71552-0E090i201312-201611
71587BPROTECTOR, FRONT SEATBACK EDGE
main71587-52030i201312-201611
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71620-0E070i201312-201611
main71620-0E100i201401-201611
main71620-0E120i201312-201611
main71620-0E130i201312-201611
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71640-0E030i201312-201611
main71640-0E040i201312-201611
LE PACKAGE
main71640-0E040i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP)
main71640-0E060i201312-201611
71759BHOOK, FRONT SEATBACK
main71759-0E010i201312-201611
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-0E150-B0i201312-201611
GRAY,TRIM1#
main71812-0E150-C0i201312-201611
BLACK,TRIM2#
main71812-0E170-A0i201401-201611
FLAXEN,TRIM0#
main71812-0E170-B0i201401-201611
GRAY,TRIM1#
main71812-0E170-C0i201401-201611
BLACK,TRIM2#
main71812-0E180-A0i201312-201611
FLAXEN,TRIM0#
main71812-0E180-B0i201312-201611
GRAY,TRIM1#
main71812-0E180-C0i201312-201611
BLACK,TRIM2#
main71812-0E180-C0i201611
BLACK,TRIM2#,4#
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
main71769-47020i201312-201611
71849CAP, SEAT ADJUSTER COVER, LH
main71848-33010i201312-201611
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-0R060-A0i201312-201611
LE PACKAGE,FLAXEN,TRIM0#
main71862-0R060-A0i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71862-0R060-A0i201312-201611
FLAXEN,TRIM0#
main71862-0R060-A0i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71862-0R060-B0i201312-201611
GRAY,TRIM1#
main71862-0R060-C0i201312-201611
BLACK,TRIM2#
main71862-0R060-C0i201611
BLACK,TRIM2#,4#
71873ASHIELD, FRONT SEAT CUSHION, LOWER
main71873-08010i201312-201611
main71873-08020i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP)
main71873-08020i201312-201611
LE PACKAGE
main71873-08020i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-06540i201312-201611
LE PACKAGE
main71874-06540i201312-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP)
main71874-06540i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER)
main71874-08010i201312-201611
71910AHEADREST ASSY, FRONT SEAT
main71910-0E250-B0i201312-201611
GRAY,TRIM1#
main71910-0E250-C0i201312-201611
BLACK,TRIM2#
main71910-0E260-A4i201312-201604
FLAXEN,TRIM0#
main71910-0E260-A4i201312-201604
LE PACKAGE,FLAXEN,TRIM0#
main71910-0E260-A4i201312-201604
LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71910-0E260-B2i201312-201604
LE PACKAGE,GRAY,TRIM1#
main71910-0E260-B2i201312-201604
LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1#
main71910-0E260-B2i201312-201604
GRAY,TRIM1#
main71910-0E260-C2i201312-201604
LE PACKAGE,BLACK,TRIM2#
main71910-0E260-C2i201312-201604
LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71910-0E260-C2i201312-201604
BLACK,TRIM2#
main71910-0E261-A4i201604-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71910-0E261-A4i201604-201611
FLAXEN,TRIM0#
main71910-0E261-A4i201604-201611
LE PACKAGE,FLAXEN,TRIM0#
main71910-0E261-A5i201611
LE PACKAGE,FLAXEN,TRIM0#
main71910-0E261-A5i201611
FLAXEN,TRIM0#
main71910-0E261-A5i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71910-0E261-B2i201604-201611
GRAY,TRIM1#
main71910-0E261-B2i201604-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),GRAY,TRIM1#
main71910-0E261-B2i201604-201611
LE PACKAGE,GRAY,TRIM1#
main71910-0E261-B3i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),GRAY,TRIM1#
main71910-0E261-B3i201611
GRAY,TRIM1#
main71910-0E261-B3i201611
LE PACKAGE,GRAY,TRIM1#
main71910-0E261-C2i201604-201611
BLACK,TRIM2#
main71910-0E261-C2i201604-201611
LE PACKAGE,BLACK,TRIM2#
main71910-0E261-C2i201604-201611
LE PACKAGE&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
main71910-0E261-C3i201611-201809
BLACK,TRIM21
main71910-0E261-C4i201611
LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#
main71910-0E261-C4i201611
BLACK,TRIM20
main71910-0E261-C4i201611
BLACK,TRIM2#
main71910-0E261-C4i201611
LE PACKAGE,BLACK,TRIM2#
main71910-0E261-C5i201809
BLACK/RED,TRIM21
main71910-0E261-E0i201611
BROWN,TRIM4#
71930ASUPPORT ASSY, FRONT SEAT HEADREST
main71930-47020-A7i201312-201611
W(LOCK),FLAXEN,TRIM0#
main71930-47020-A7i201312-201611
W(LOCK),LE PACKAGE,FLAXEN,TRIM0#
main71930-47020-A7i201312-201611
W(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71930-47020-A7i201611
W(LOCK),LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71930-47020-B5i201312-201611
W(LOCK),GRAY,TRIM1#
main71930-47020-C0i201312-201710
W(LOCK),BLACK,TRIM2#
main71930-47020-C0i201611-201710
W(LOCK),BLACK,TRIM2#,4#
main71930-47020-C4i201710
W(LOCK),BLACK,TRIM2#,4#
main71930-47020-C4i201710
W(LOCK),BLACK,TRIM2#
main71931-47020-A7i201312-201611
W/O(LOCK),LE PACKAGE,FLAXEN,TRIM0#
main71931-47020-A7i201312-201611
W/O(LOCK),FLAXEN,TRIM0#
main71931-47020-A7i201611
W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(DRIVER & PASSENGER),FLAXEN,TRIM0#
main71931-47020-A7i201312-201611
W/O(LOCK),LE PACKAGE&SEAT HEATER-WITH(*DRP),FLAXEN,TRIM0#
main71931-47020-B5i201312-201611
W/O(LOCK),GRAY,TRIM1#
main71931-47020-C0i201611-201710
W/O(LOCK),BLACK,TRIM2#,4#
main71931-47020-C0i201312-201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4i201710
W/O(LOCK),BLACK,TRIM2#
main71931-47020-C4i201710
W/O(LOCK),BLACK,TRIM2#,4#
72201BHANDLE SUB-ASSY, SEAT TRACK LH
main72211-08020i201312-201611
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-0R030-B0i201312-201611
GRAY,TRIM1#
main72495-0R030-C0i201312-201611
BLACK,TRIM2#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-08010-B1i201312-201611
GRAY,TRIM1#
main72526-08010-C0i201312-201611
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-0E060i201312-201611
8421AIR BAG
→ Go to FIG 84-21
9008011132
main90080-11132
9008016099
main90080-16099
9008017200
main90080-17200
9008046007
main90080-46007
9016850078
main90168-50078
90176A0002
main90176-A0002

31 parts on this diagram · 12 diagrams in section
