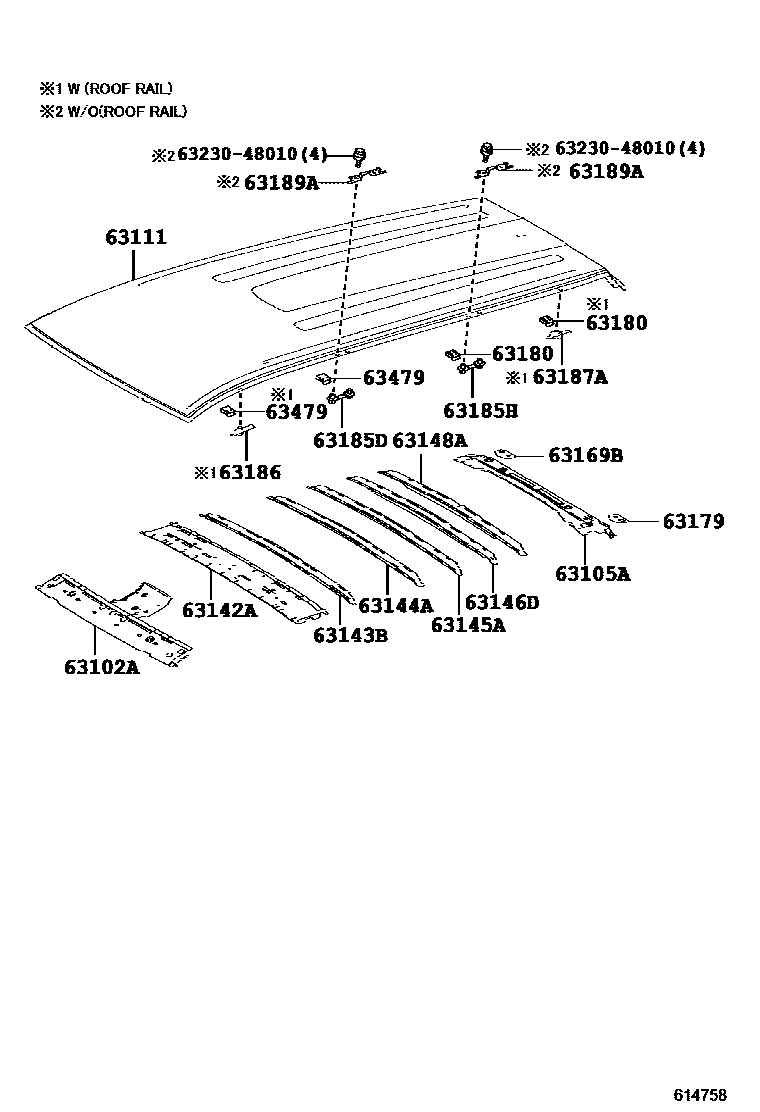

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL(NORMAL) 0002 1ROOF PANEL(MOON) 0003 1ROOF PANEL(PANORAMA) 0004 1SLIDING ROOF(MOON) 0005 1SLIDING ROOF(PANORAMA) 0006 1ROOF RACK

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-0E905iASU50,GSU5#,GVU58..N201312-201611

main63102-0E906iGSU5#,GVU58..G,M201312-201611

MOON ROOF-WITH(TILT & SLIDE)

main63102-0E907iGSU55,GVU58..G201611

HAWAII&PLATINUM PACKAGE&SATELLITE RADIO-W/O

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-0E050iASU50,GSU5#,GVU58201611

63111PANEL, ROOF

main63111-0E120iGSU5#,GVU58..G,M201611

main63111-0E150iASU50,GSU5#,GVU58..N201611

main63111-0E110supersedes 63111-0E120iGSU55,GVU58..G201611

USA POSSESSION&SATELLITE RADIO-W/O

main63111-0E130iGSU55,GVU58..G201611

HAWAII&PLATINUM PACKAGE&SATELLITE RADIO-W/O

main63111-0E140iGSU55,GVU58..G201611

MOON ROOF-WITH(PANORAMA ROOF)

main63111-0E160supersedes 63111-0E150iASU50,GSU5#..N201312-201611

MOON ROOF-WITH(TILT & SLIDE)

63142AREINFORCEMENT, ROOF PANEL, NO.2

main63103-0E030iASU50,GSU5#,GVU58..N201312-201611

main63142-0E050iGSU5#,GVU58..G,M201611

MOON ROOF-WITH(TILT & SLIDE)

main63103-0E040iGSU55,GVU58..G201611

HAWAII&PLATINUM PACKAGE&SATELLITE RADIO-W/O

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-0E050iASU50,GSU5#,GVU58201611

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63123-0E030iASU50,GSU5#,GVU58201611

63145AREINFORCEMENT, ROOF PANEL, NO.5

main63177-0E010iASU50,GSU5#,GVU58201312-201611

63146DREINFORCEMENT, ROOF PANEL, NO.6

main63178-0E010iASU50,GSU5#,GVU58..N201312-201611

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63144-0E050iASU50,GSU5#,GVU58201312-201611

63169BPLATE, ROOF PANEL REINFORCEMENT, RH

main63169-0E040iASU50,GSU5#,GVU58201312-201607

main63169-0E041iASU50,GSU5#,GVU58201611

63179PLATE, ROOF PANEL REINFORCEMENT, LH

main63179-0E040iASU50,GSU5#,GVU58201312-201607

main63179-0E041iASU50,GSU5#,GVU58201608-201611

63180CLIP(BRACKET, ROOF RACK)

main63479-0E010×2iGSU55,GVU58..G201611

ROOF RAIL-WITH(PAINT)&MOON ROOF-WITH(PANORAMA ROOF)

63185DBRACKET, ROOF RACK, FRONT

main63187-35020×2iASU50,GSU5#,GVU58201312-201611

main63187-0E080×2iGSU55,GVU58..G201611

ROOF RAIL-WITH(PAINT)&MOON ROOF-WITH(PANORAMA ROOF)

63185HBRACKET, ROOF RACK

main63187-48020×2iASU50,GSU5#,GVU58201312-201611

main63187-0E080×2iGSU5#,GVU58..G201312-201611

MOON ROOF-WITH(PANORAMA ROOF)

63186BRACKET, ROOF RACK, FRONT

main63187-0E050×2iGSU5#,GVU58..G,M201611

63187ABRACKET, ROOF RACK, REAR

main63187-0E060×2iGSU5#,GVU58..G,M201611

63189ABRACKET, ROOF RACK, CENTER

main63185-48010×4iASU50,GSU5#,GVU58..N201312-201611

63479RETAINER, ROOF INNER RACK

main63479-0E040×2iASU50,GSU5#,GVU58..N201611

6323048010MOULDING ASSY, ROOF WINDOW, SIDE

main63230-48010

19 parts on this diagram · 6 diagrams in section
