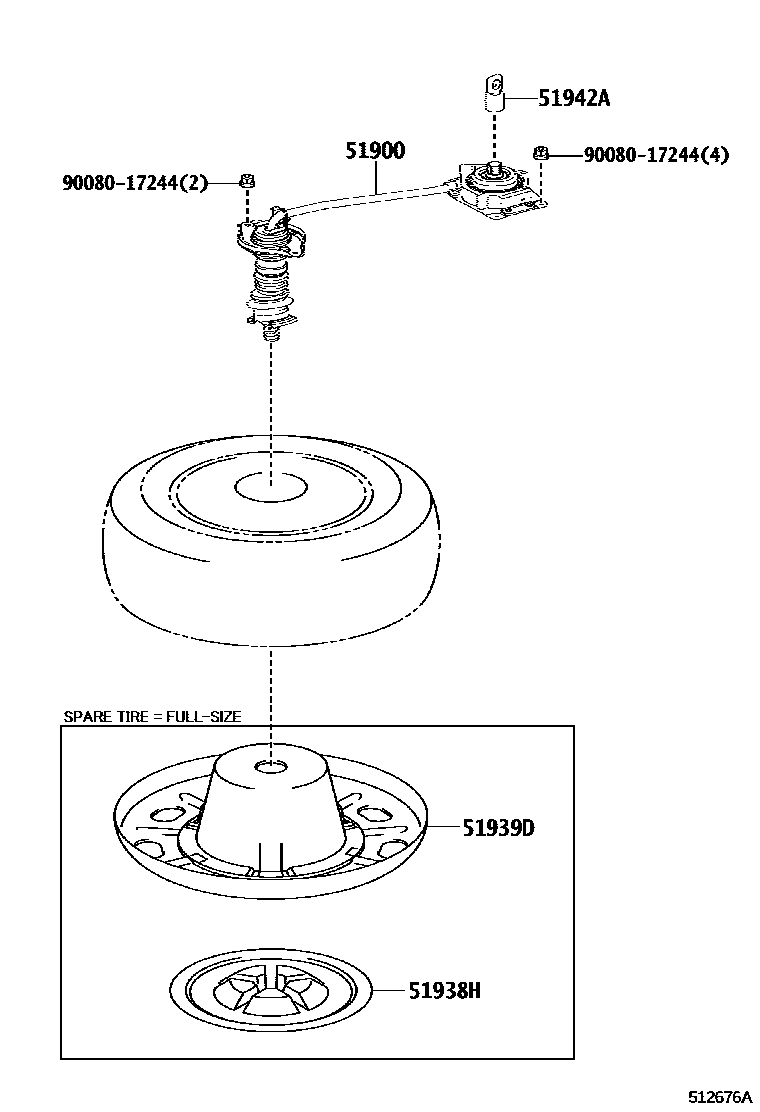

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-0E040i201312-201603

MEXICO SPEC&SPARE TIRE-GROUND TIRE; USA POSSESSION SPEC&SPARE TIRE-GROUND TIRE

main51900-0E041supersedes 51900-0E051i201604-201610

MEXICO SPEC&SPARE TIRE-GROUND TIRE; USA POSSESSION SPEC&SPARE TIRE-GROUND TIRE

HAWAII&SPARE TIRE-GROUND TIRE; MEXICO&SPARE TIRE-GROUND TIRE

51938HCOVER, SPARE WHEEL CARRIER HINGE, LWR

main51938-0E030i201312-201611

MEXICO SPEC&SPARE TIRE-GROUND TIRE; USA POSSESSION SPEC&SPARE TIRE-GROUND TIRE

51939DCOVER, SPARE WHEEL CARRIER LOCK

main51939-0E031i201312-201611

MEXICO SPEC&SPARE TIRE-GROUND TIRE; USA POSSESSION SPEC&SPARE TIRE-GROUND TIRE

51942AHANDLE, SPARE WHEEL CARRIER BOLT

main51942-28010i201312-201611

9008017244

5 parts on this diagram · 1 diagram in section
