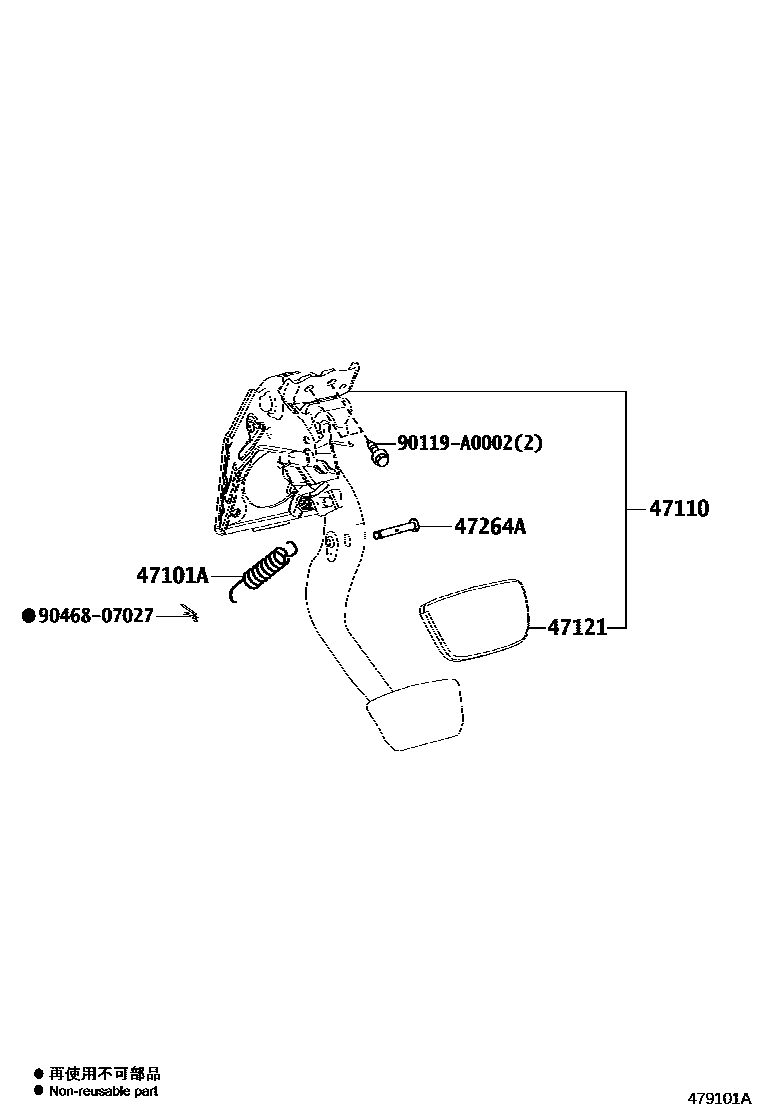

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15004iASU50,GSU5#201611

main90507-15008iGVU58201611

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E060iASU50,GSU5#201312-201611

main47110-0E061iASU50,GSU5#201611

main47110-0E080iGVU58201401-201611

main47110-0E081iGVU58201611

47121PAD, BRAKE PEDAL

main47121-0E010iASU50,GSU5#,GVU58201312-201611

47264APIN(FOR PUSH ROD)

main90080-24138iASU50,GSU5#201312-201611

main90240-08078iGVU58201401-201611

90119A0002

main90119-A0002

9046807027

main90468-07027

6 parts on this diagram · 2 diagrams in section
