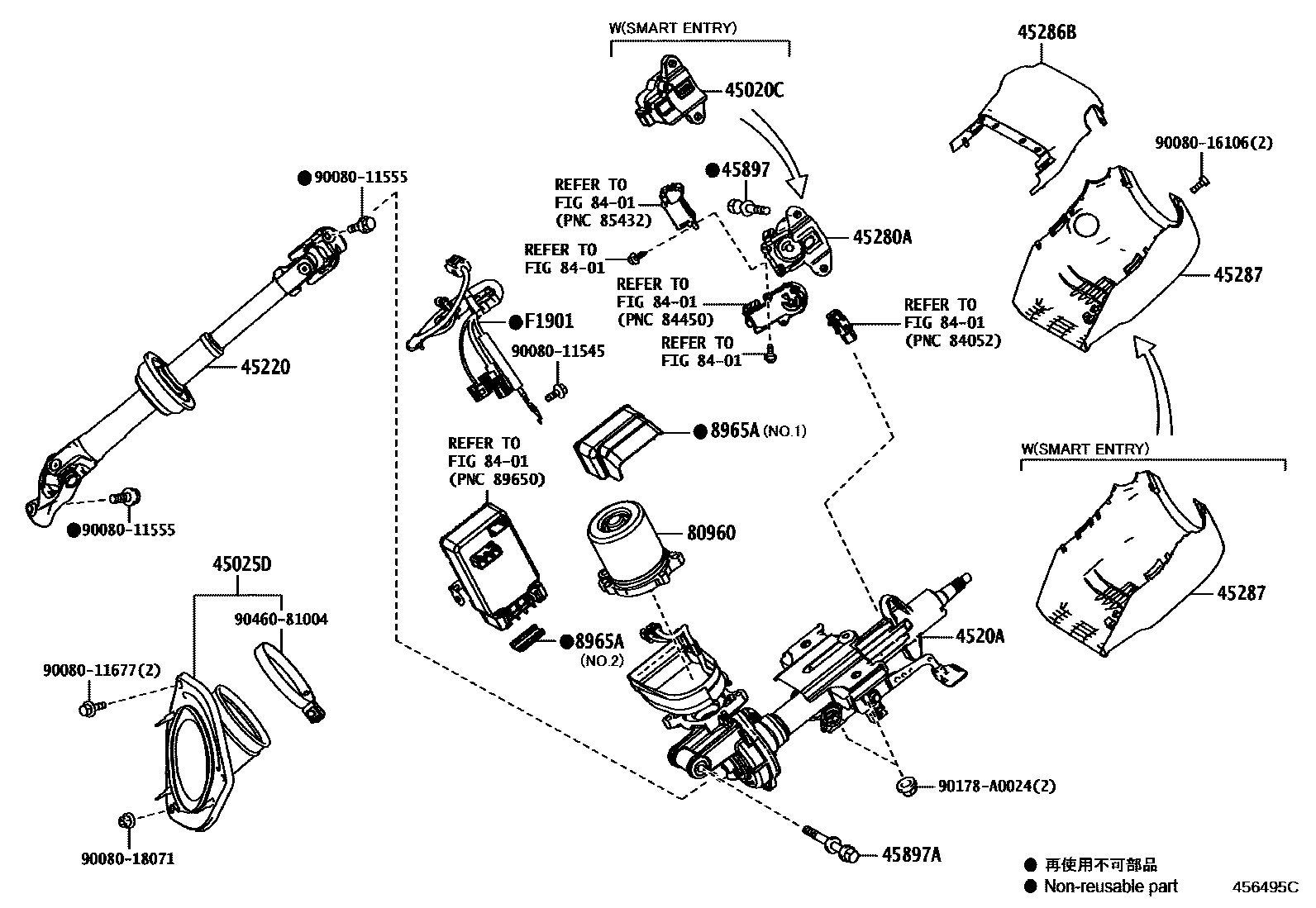

STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-0E030iGVU58;GSU5#..G,M201611-201911

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0E050iASU50,GSU5#,GVU58201312-201611

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0E010iASU50,GSU5#..N201611

main4520A-0E020iGVU58;GSU5#..G,M201312-201611

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-0E070iASU50,GSU5#,GVU58201611

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-0R010iASU50,GSU5#..N201611

45286BCOVER, STEERING COLUMN, UPR

main45286-0E030-C0iASU50; GSU5#,GVU58..G; GSU5#,GVU58..M,N201611

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,2#,4#; BLACK,TRIM1#,2#

45287COVER, STEERING COLUMN, LWR

main45287-0E030-C0iASU50; GSU5#..N201611

BLACK,TRIM0#,1#,2#; BLACK,TRIM1#,2#

main45287-0E040-C0iGSU5#,GVU58..G; GSU5#..M;GVU58..M,N201611

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,1#,2#,4#

45897BOLT, STEERING LOCK SET

main45897-08010×2iASU50,GSU5#,GVU58201312-201611

45897ABOLT, TILT STEERING PAWL SET

main45897-0T010iASU50,GSU5#,GVU58201312-201611

80960MOTOR ASSY, POWER STEERING

main80960-0E070iASU50,GSU5#,GVU58201312-201611

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8965APROTECTOR, POWER STEERING COMPUTER

main8965A-06020iASU50,GSU5#,GVU58201312-201611

NO.1

main8965A-06030iASU50,GSU5#,GVU58201611

NO.2

F1901WIRE SUB-ASSY, COMPUTER

mainF19010E010iASU50,GSU5#,GVU58201611

9008011545

main90080-11545

9008011555

main90080-11555

9008011677

main90080-11677

9008016106

main90080-16106

9008018071

main90080-18071

90178A0024

main90178-A0024

9046081004

main90460-81004

20 parts on this diagram · 1 diagram in section
