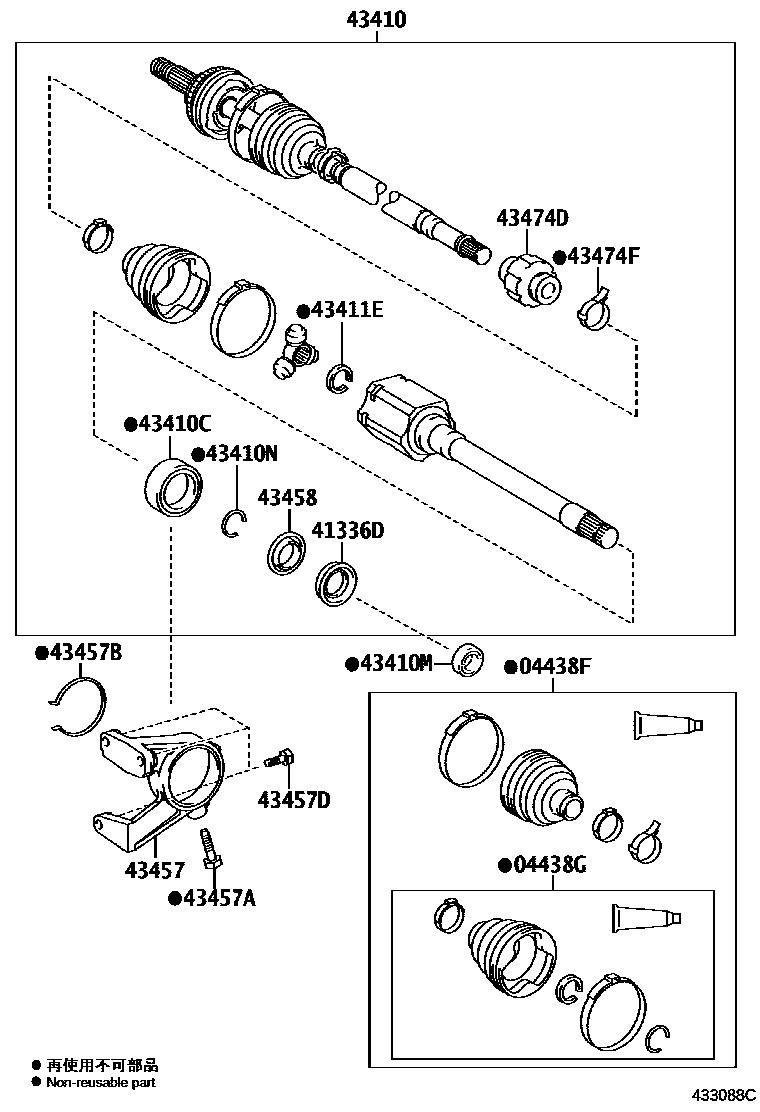

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1RH 0004 1RH 0005 1LH 0008 1LH 0009 1RH 0010 1RH 0011 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-06500iASU50201312-201608

main04427-06540iGSU50,GVU58201407-201611

main04427-06550iASU50201608-201611

main04427-06551iASU50201902

main04427-08130iGSU55201611-201902

main04427-08131iGSU55201902

main04427-08140iGSU50,GVU58201611-201902

main04427-08141iGSU50,GVU58201902

main04428-0W070iGSU55201312-201611

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-06270iASU50201611-201902

main04437-06272iASU50201902

main04437-08050iGSU50,GVU58201407-201611

main04437-08070iGSU5#,GVU58201611-201902

main04437-08110iGSU5#,GVU58201902

main04438-08130iGSU55201312-201611

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-06020iASU50,GSU50,GVU58201312-201611

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-0E130iGSU55201312-201611

main43410-0E140iGSU50201312-201611

main43410-0E150iGVU58201401-201611

main43410-0E220iGSU55201611-201908

main43410-0E221iGSU55201909-201911

main43410-0E230iGSU50201611-201804

main43410-0E231iGSU50201804-201901

main43410-0E240iGVU58201611-201908

main43410-0E390iGSU50201909-201911

main43410-0E400iGVU58201909-201911

main43410-0T020iASU50201312-201608

main43410-0T021iASU50201608-201611

main43410-0T022iASU50201909-201911

sub43410-0T062

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90080-36133iASU50,GSU50,GVU58201312-201611

main90363-A0007iGSU55201312-201611

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iASU50201707

(J)

main90311-40039iGVU58201611

main90311-40046iGSU50201611

main90311-A0012iASU50201312-201402

main90311-A0029iASU50201403-201611

(J)

main90316-34001iGSU55201611

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90080-52013iASU50,GSU50,GVU58201312-201611

main90080-52054iGSU55201611-201911

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-06450iGVU58201902-201909

main43425-06540iASU50201901-201911

main43425-08040iGVU58201611-201901

43457BRACKET, DRIVE SHAFT BEARING

main43457-0T010iASU50201611

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iASU50,GSU50,GVU58201312-201611

*10-1.25PX19.8-8.3

main90901-19060iGSU55201611

*10-1.25PX28.5-14.8

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-73001iGSU55201611

main90521-78002iASU50,GVU58201611

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90080-10087×3iASU50201312-201611

main90105-A0259×2iGSU50201611

43458COVER, FRONT DRIVE SHAFT DUST

main43458-06020iASU50,GSU50,GVU58201312-201508

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-06300iGSU50,GVU58201909-201911

main43474-06540iASU50201909-201911

main43474-0W030iGSU50,GVU58201312-201407

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-06100iGSU50,GVU58201312-201407

main42345-06790×2iGSU50,GVU58201407-201611

15 parts on this diagram · 9 diagrams in section
