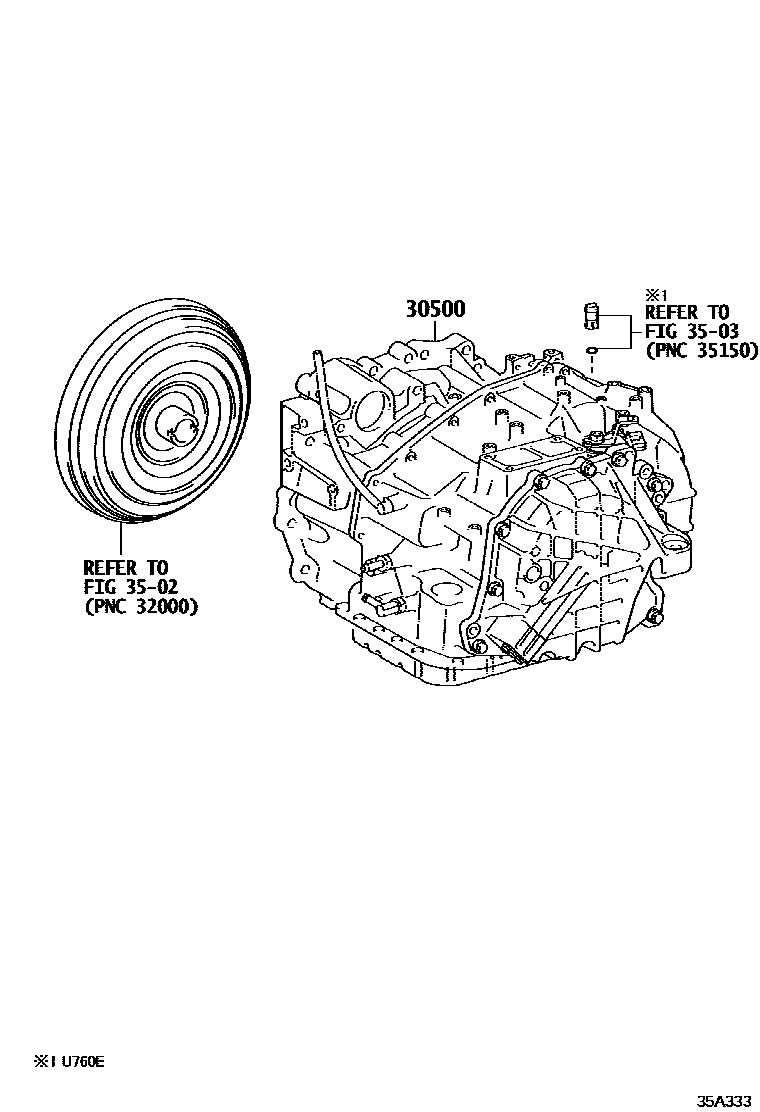

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U660E,U660F,U760E 0002 1U760E 0003 1UA80E,UA80F 0004 1UA80E,UA80F

30500TRANSAXLE ASSY, AUTOMATIC

main30500-0E070iGSU50201501-201611

U660E

main30500-0E080iGSU55201501-201611

U660F

main30500-0E140supersedes 30500-45081iGSU55..G,M; GSU55..N201808

UA80F,LE PACKAGE,TMMWV; UA80F,TMMWV

main30500-0T030iASU50201611-201709

U760E,*325

main30500-45032iGSU55201312-201501

U660F

main30500-48331iASU50201707

U760E,*349

main30500-48540iGSU50201312-201501

U660E

main30500-48580iGSU55..G,M; GSU55..N201611-201802

UA80F,LE PACKAGE,TOYOTA; UA80F,TOYOTA

main30500-48581iGSU55..G,M; GSU55..N201802-201905

UA80F,LE PACKAGE,TOYOTA; UA80F,TOYOTA

main30500-48600iGSU55..G,M; GSU55..N201611-201802

UA80F,AISIN AW; UA80F,LE PACKAGE,AISIN AW

main30500-48601iGSU55..G,M; GSU55..N201802

UA80F,AISIN AW; UA80F,LE PACKAGE,AISIN AW

main30500-0E110supersedes 30500-48571iGSU50..G,M; GSU50..N201808

UA80E,MEXICO,TMMWV; UA80E,TMMWV

main30500-0E120supersedes 30500-45071iGSU50..G,M; GSU50..N201808

UA80E,LE PACKAGE,TMMWV; UA80E,TMMWV

main30500-45050supersedes 30500-48571iGSU50..G,M; GSU50..N201611-201802

UA80E,MEXICO,TOYOTA; UA80E,TOYOTA

main30500-45051supersedes 30500-48571iGSU50..G,M; GSU50..N201802-201905

UA80E,MEXICO,TOYOTA; UA80E,TOYOTA

main30500-45071supersedes 30500-48571iGSU50..G,M; GSU50..N201802-201905

UA80E,AISIN AW; UA80E,MEXICO,AISIN AW

main30500-48570supersedes 30500-45071iGSU50..G,M; GSU50..N201611-201802

UA80E,LE PACKAGE,TOYOTA; UA80E,TOYOTA

main30500-48571supersedes 30500-45071iGSU50..G,M; GSU50..N201802-201905

UA80E,LE PACKAGE,TOYOTA; UA80E,TOYOTA

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

3 parts on this diagram · 4 diagrams in section
