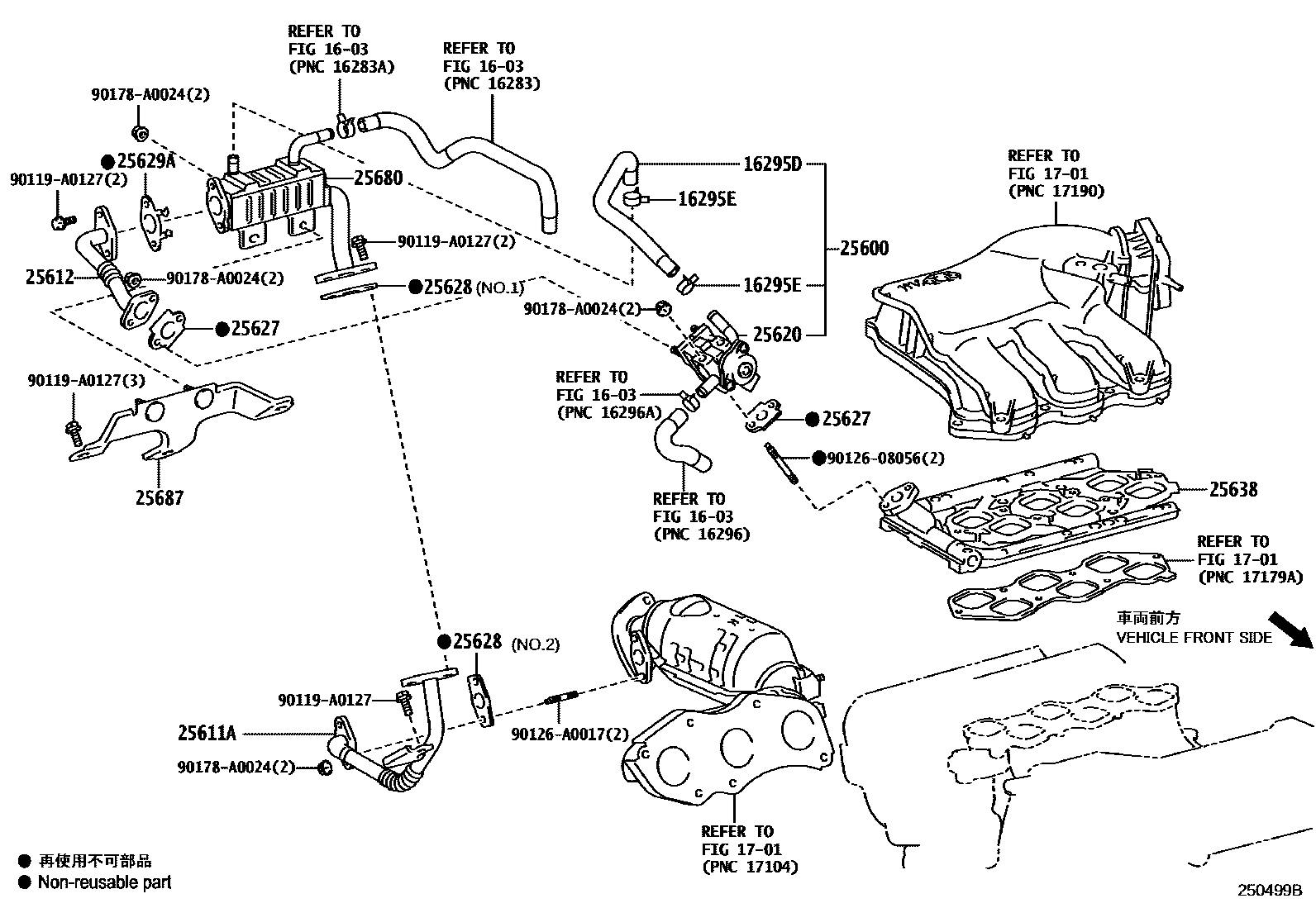

Toyota HIGHLANDER (NAP)526 — EXHAUST GAS RECIRCULATION SYSTEM
1603RADIATOR & WATER OUTLET
16295DHOSE, WATER BY-PASS, NO.7
16295ECLIP(FOR WATER BY-PASS HOSE NO.7)
1701MANIFOLD
25600VALVE ASSY, EGR INTEGRATED
25611APIPE, EGR, NO.1
25629AGASKET, EGR PIPE, NO.2
25638CHAMBER, EGR DELIVERY
90119A0127
9012608056
90126A0017
90178A0024
18 parts on this diagram · 2 diagrams in section
EXHAUST GAS RECIRCULATION SYSTEM for Toyota HIGHLANDER (NAP)526
This section contains 19 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota HIGHLANDER (NAP)526. Key components include: RADIATOR & WATER OUTLET, HOSE, WATER BY-PASS, NO.7, CLIP(FOR WATER BY-PASS HOSE NO.7), MANIFOLD, VALVE ASSY, EGR INTEGRATED.
