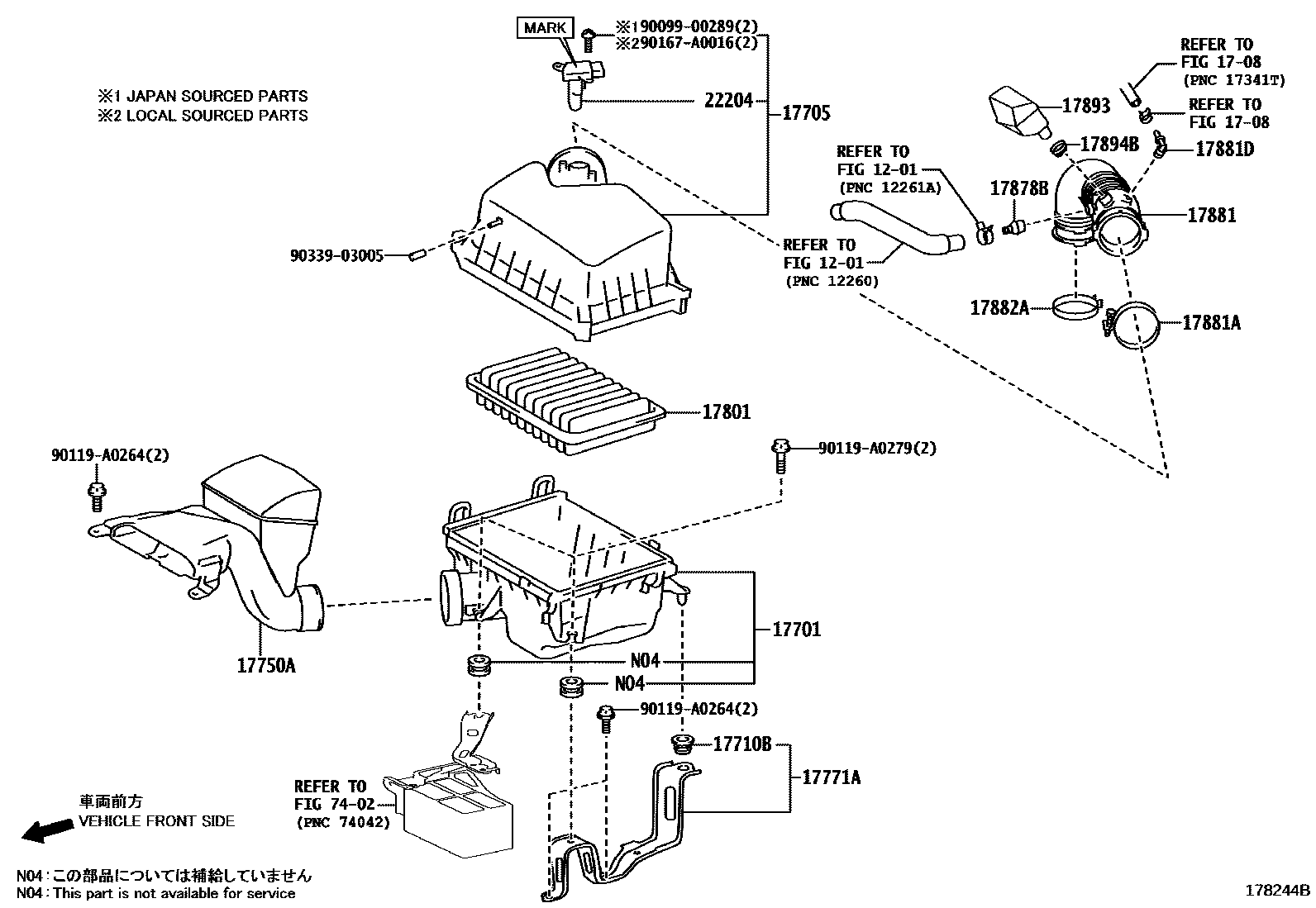

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

1201

1708

17701CASE SUB-ASSY, AIR CLEANER

main17701-0P120i2GRFE..GSU5#201312-201611

main17701-0P150i2GRFKS..GSU5#201611

main17711-0P030i2GRFXE..GVU58201401-201611

17705CAP SUB-ASSY, AIR CLEANER

main17705-0P190i2GRFE..GSU5#201312-201611

main17705-0P200i2GRFXE..GVU58201401-201611

main17705-0P230i2GRFKS..GSU5#201611

main17705-0P240i2GRFXS..GVU58201611

17710BGROMMET

main90480-18006i2GRFE..GSU5#201312-201611

17750AINLET ASSY, AIR CLEANER

main17750-0P110i2GRFKS..GSU5#201611

main17750-0P120i2GRFXS..GVU58201611

main17750-0V110i1ARFE..ASU50201312-201611

17771ABRACKET, AIR CLEANER

main17771-0P020i1ARFE..ASU50201312-201611

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0P051i2GRFE..GSU5#201312-201611

main17801-0P051i1ARFE..ASU50201611

MARK 17801-0P051

main17801-0P070i2GRFXE..GVU58201401-201611

(L)

main17801-0P090i2GRFXS..GVU58201611

MARK 17801-0P090

main17801-31131i2GRFKS..GSU5#201611

MARK 17801-31131

main17801-31141i2GRFXE..GVU58201401-201611

(J)

main17801-45031i2GRFXS..GVU58201611

MARK 17801-45031

17878BTUBE, VENTILATION

main17878-0P040i2GR#..GSU5#,GVU58201611

main17878-0V010i1ARFE..ASU50201312-201611

17881HOSE, AIR CLEANER, NO.1

main17881-0P110i2GRFE..GSU5#201312-201611

main17881-0P150i2GRFXE..GVU58201401-201611

main17881-0P200i2GRFXS..GVU58201611

main17881-0P260i2GRFKS..GSU5#201611

main17881-0V180i1ARFE..ASU50201312-201611

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900i1ARFE..ASU50201312-201611

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V020i1ARFE..ASU50201312-201611

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10850i1ARFE..ASU50201312-201611

17893RESONATOR, INTAKE AIR

main17893-0P100i2GRFXE..GVU58201401-201611

main17893-0P200i2GRFKS..GSU5#201611

main17893-0P210i2GRFXS..GVU58201611

main17893-0V140i1ARFE..ASU50201312-201611

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10300i1ARFE..ASU50201312-201611

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i2GR#..GSU5#,GVU58201312-201611

MARK 22204-0V010

sub22204-0V020

main22204-0V020i1ARFE..ASU50201312-201611

MARK 22204-0V020

main22204-28010i1ARFE..ASU50201312-201611

MARK 22204-28010

main22204-75040i2GR#..GSU5#,GVU58201611

7402

9009900289

main90099-00289

90119A0264

main90119-A0264

90119A0279

main90119-A0279

90167A0016

main90167-A0016

9033903005

main90339-03005

22 parts on this diagram · 5 diagrams in section
