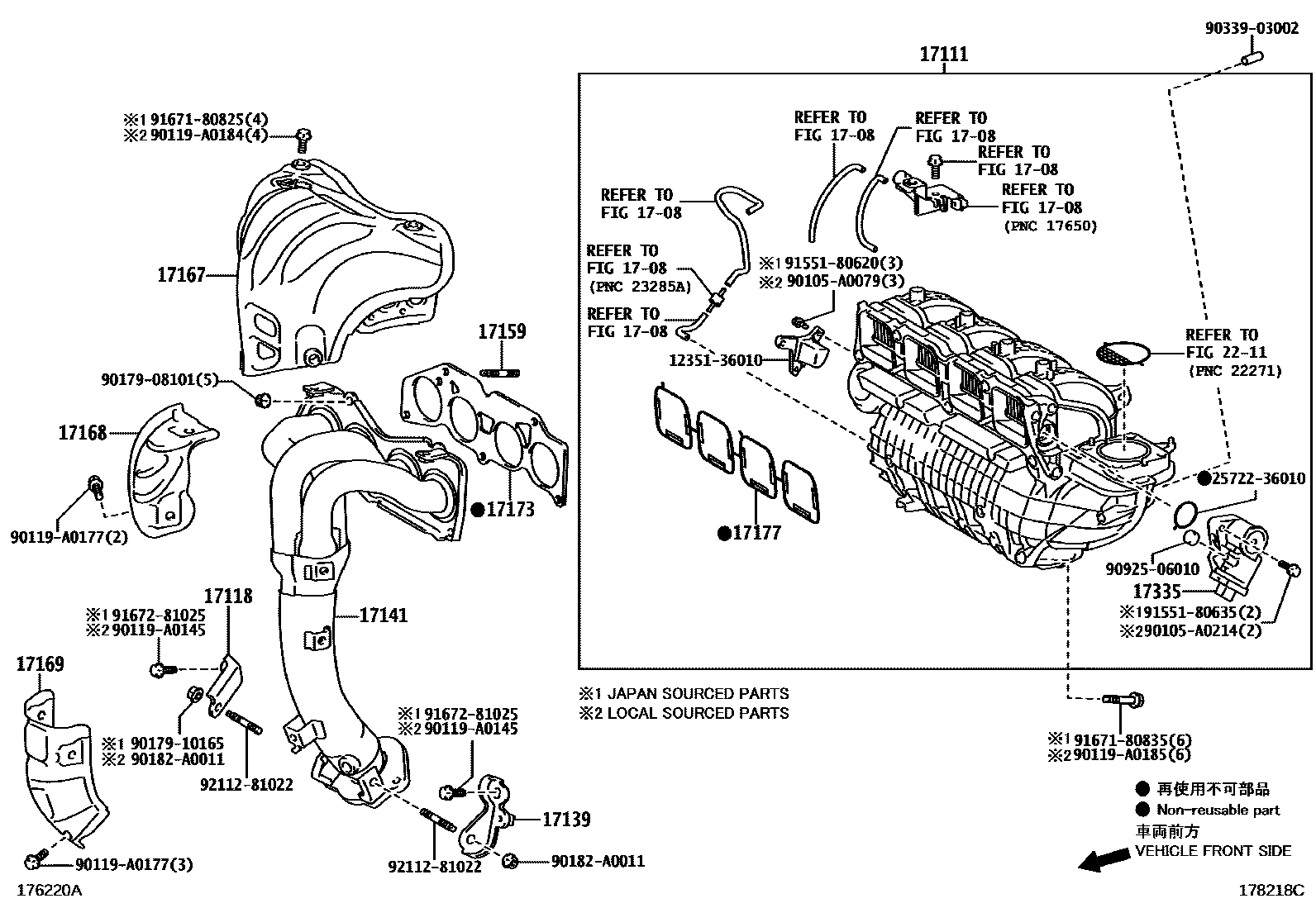

MANIFOLD
1708
17111MANIFOLD, INTAKE
(L)
(J)
*535
*524
17118STAY, MANIFOLD
(L)
(L),*535
(J)
(J),*535
*524
17139STAY, MANIFOLD, NO.2
*535
*524
17141MANIFOLD, EXHAUST
*114=TOYOTA/R31390/Y
*524
*535
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
*524
*535
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
*535
*524
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
*524
*535
17169INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
*535
*524
17173GASKET, EXHAUST MANIFOLD TO HEAD
*535
*524
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*535
*524
(L)
(J)
17335ACTUATOR, INTAKE AIR CONTROL VALVE
*535
*524
2211
1235136010DAMPER, ENGINE MOUNTING
main12351-36010
2572236010GASKET, ELECTRIC AIR CONTROL VALVE
main25722-36010
90105A0079
main90105-A0079
90105A0214
main90105-A0214
90119A0145
main90119-A0145
90119A0177
main90119-A0177
90119A0184
main90119-A0184
90119A0185
main90119-A0185
9017908101
main90179-08101
9017910165
main90179-10165
90182A0011
main90182-A0011
9033903002
main90339-03002
9092506010
main90925-06010
9155180620
main91551-80620
9155180635
main91551-80635
9167180825
main91671-80825
9167180835
main91671-80835
9167281025
main91672-81025
9211281022
main92112-81022
32 parts on this diagram · 5 diagrams in section
