V-BELT

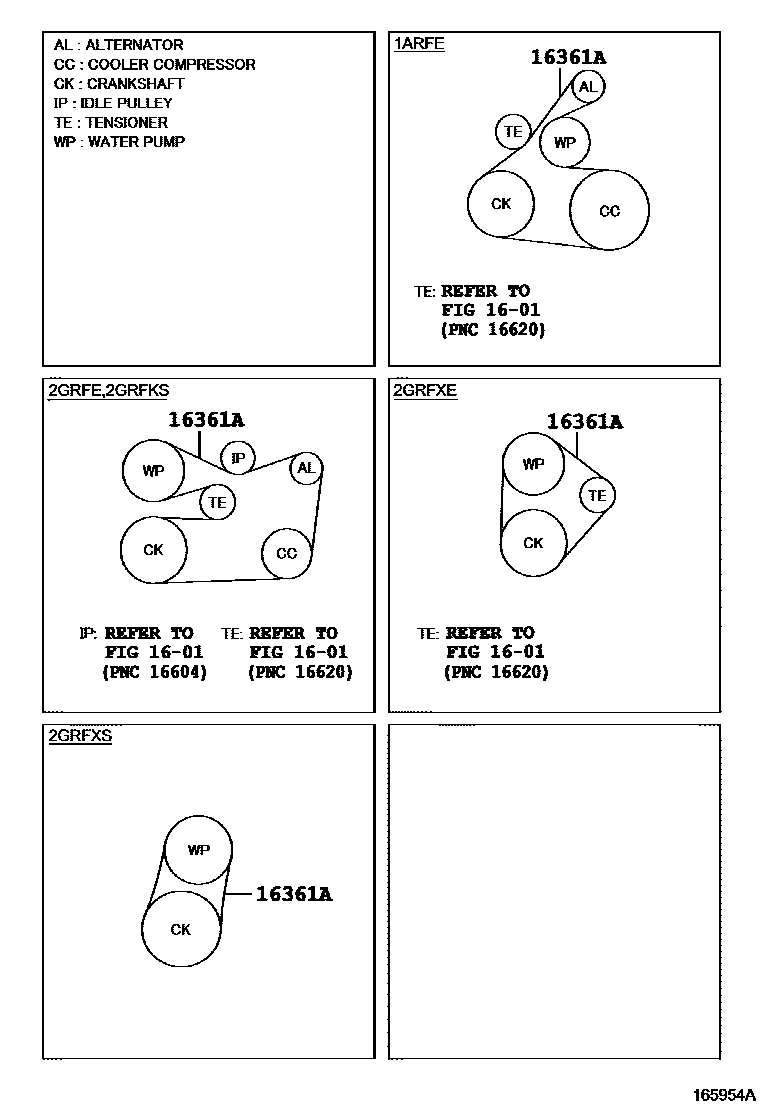

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02729i201611

main90916-A2019i201312-201611

main90916-A2020i201312-201611

main90916-A2026i201611

main99367-C0810i201401-201610

2 parts on this diagram · 1 diagram in section
