SHORT BLOCK ASSEMBLY

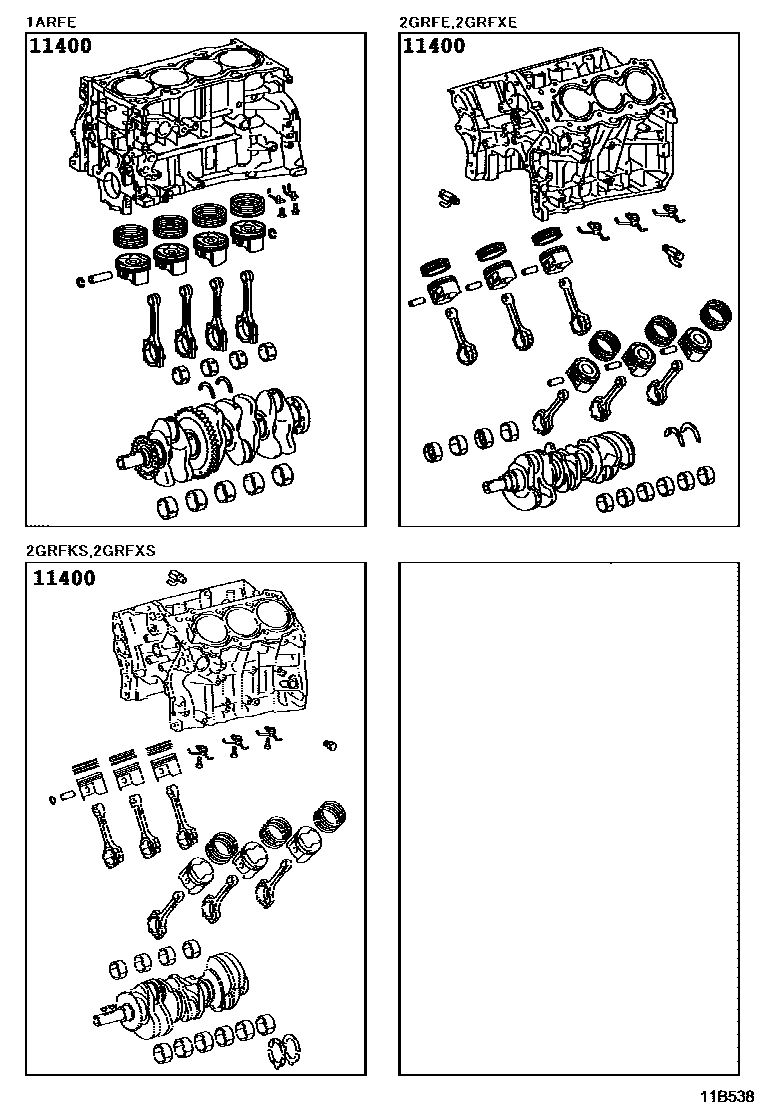

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P050i201312-201409

*371

main11400-0P051i201409-201509

*371

main11400-0P052i201510-201611

*371

main11400-0P110i201611

main11400-0V020i201312-201611

main11400-31270i201401-201407

*427

main11400-31360i201312-201407

*427

main11400-31430i201611

main11400-36050i201810

(J)

main11400-39105i201407-201611

*427

main11400-39115i201407-201611

*427

main11400-31163i201312-201407

MEXICO SPEC,*427

main11400-39095i201407-201611

MEXICO SPEC,*427

1 parts on this diagram · 1 diagram in section
