ANTENNA
86101CORD SUB-ASSY, ANTENNA
AUDIO-CD USB 6SPEAKER BLUETOOTH
MEXICO SPEC&AUDIO-6CD-CHANGER 6SPEAKER
AUDIO-CD 6SPEAKER; MEXICO SPEC; MEXICO SPEC&AUDIO-CD 6SPEAKER
AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH; MEXICO SPEC&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH
AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER USB 9SP JBL BLUETOOTH
AUDIO-MONITOR USB 6SPEAKER BLUETOOTH
86101JCORD SUB-ASSY, ANTENNA, NO.2
AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-CD 6SPEAKER; MEXICO SPEC; MEXICO SPEC&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; MEXICO SPEC&AUDIO-CD 6SPEAKER
86300ANTENNA ASSY, W/HOLDER
MEXICO SPEC&AUDIO-6CD-CHANGER 6SPEAKER
86309BPOLE SUB-ASSY, PULL TOP ANTENNA
86392ORNAMENT, ANTENNA
MEXICO SPEC&AUDIO-6CD-CHANGER 6SPEAKER
86396NUT, ANTENNA
863A2TOOL, POLE ANTENNA
86960ANTENNA ASSY, SATELLITE RADIO
AUDIO-6CD-CHANGER 6SPEAKER,WHITE PEARL CS.,070; WHITE PEARL CS.,070
AUDIO-6CD-CHANGER 6SPEAKER,SILVER ME.,1F7; SILVER ME.,1F7
AUDIO-6CD-CHANGER 6SPEAKER,GRAY ME.,1G3; GRAY ME.,1G3
AUDIO-6CD-CHANGER 6SPEAKER,BLACK,202; BLACK,202
AUDIO-6CD-CHANGER 6SPEAKER,DK. RED M.M.,3Q3; DK. RED M.M.,3Q3
AUDIO-6CD-CHANGER 6SPEAKER,BEIGE ME.,4T8; BEIGE ME.,4T8
AUDIO-6CD-CHANGER 6SPEAKER,OLIVE M.M.,6T7; OLIVE M.M.,6T7
AUDIO-6CD-CHANGER 6SPEAKER,LT.BLUE M.M.,8S7; LT.BLUE M.M.,8S7
AUDIO-6CD-CHANGER 6SPEAKER,BLUE ME.,8T7; BLUE ME.,8T7
827111E300WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E300
827150E670BRACKET,WIRING HARNESS CLAMP
main82715-0E670
8639647010NUT, ANTENNA
main86396-47010
9008011546
main90080-11546
90179A0010
main90179-A0010

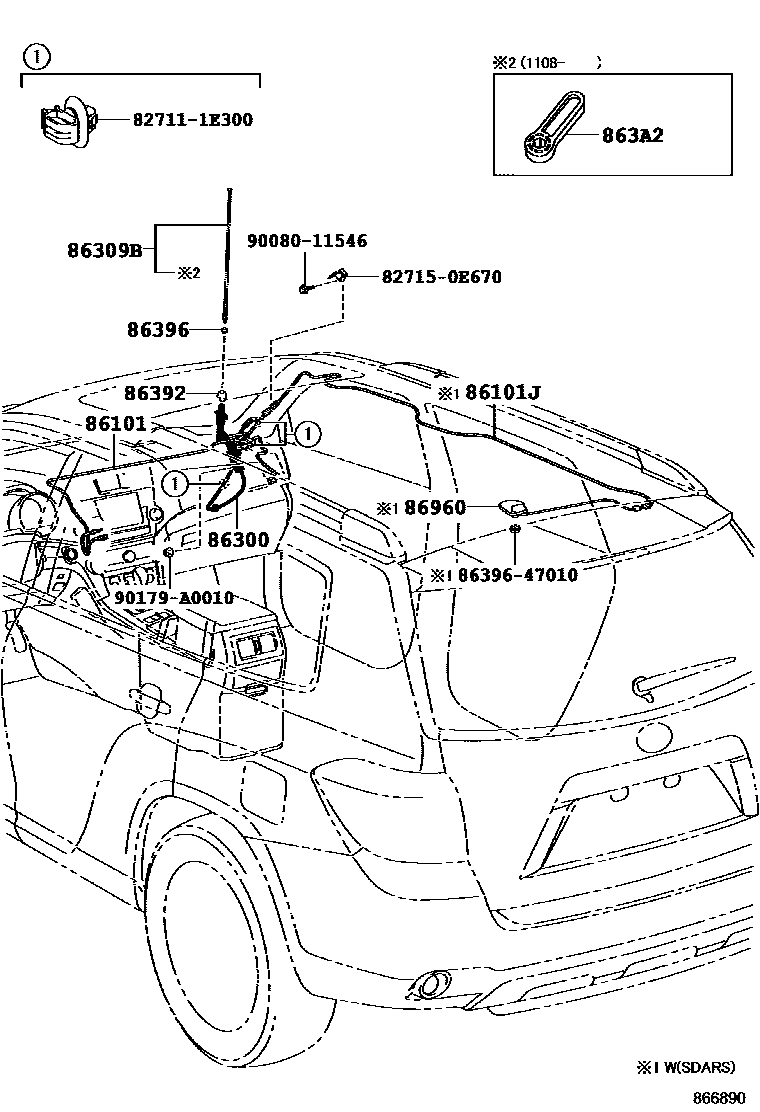

13 parts on this diagram · 2 diagrams in section
