Toyota HIGHLANDER (NAP)526 — SPEAKER

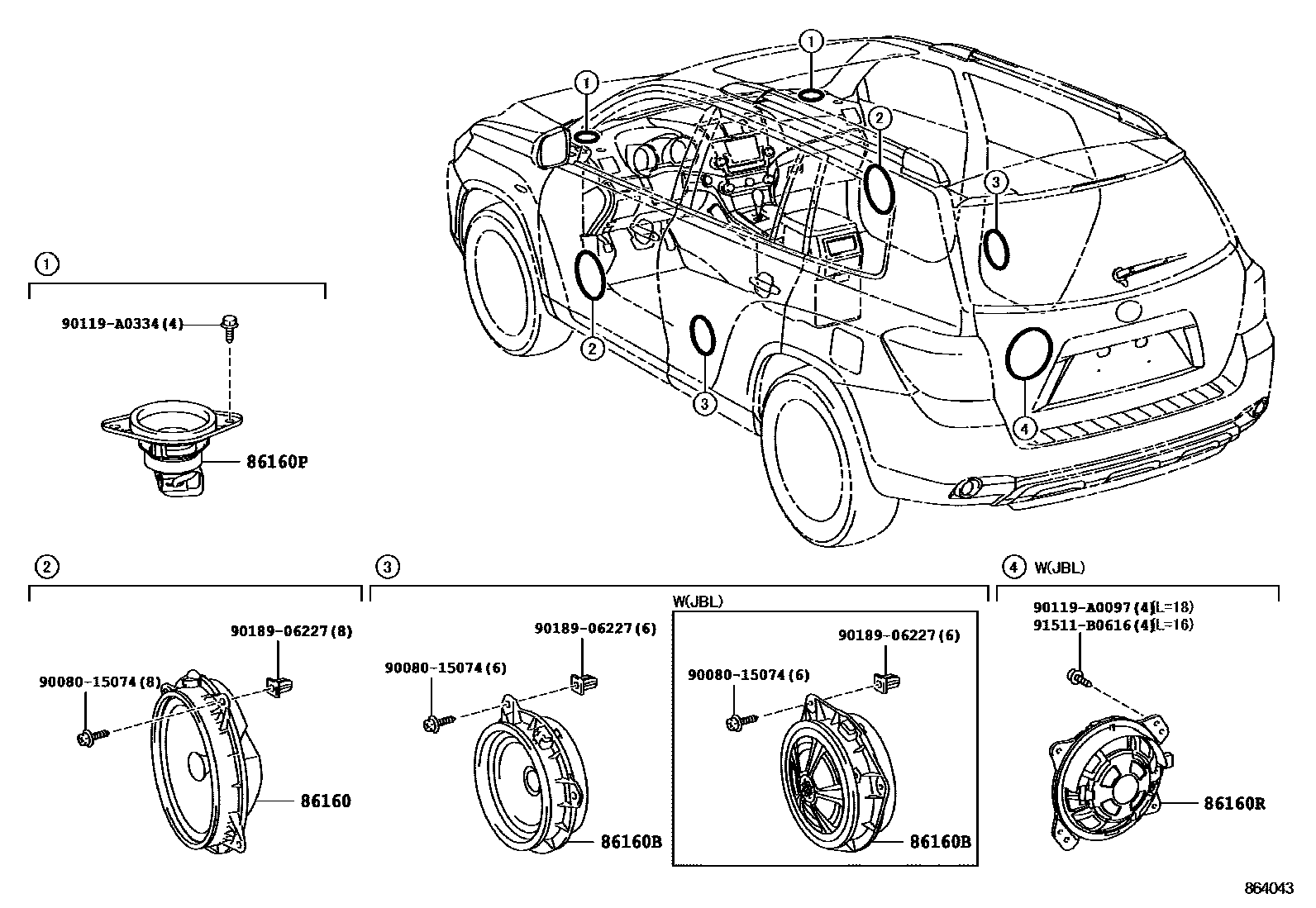

Parts diagram
86160SPEAKER ASSY, FRONT NO.1
86160-0C140
86160-0E220
86160-AC290
86160-0WF10
86160-0WF60
86160-0WJ30
86160-0WJ40
86160-0WP60
86160BSPEAKER ASSY, REAR
86160PSPEAKER ASSY, FRONT NO.2
86160RSPEAKER ASSY, STEREO COMPONENT
9008015074
90080-15074
90119A0097
90119-A0097
90119A0334
90119-A0334
9018906227
90189-06227
91511B0616
91511-B0616

9 parts on this diagram · 1 diagram in section

SPEAKER for Toyota HIGHLANDER (NAP)526

This section contains 9 genuine Toyota parts for the SPEAKER system of the Toyota HIGHLANDER (NAP)526. Key components include: SPEAKER ASSY, FRONT NO.1, SPEAKER ASSY, REAR, SPEAKER ASSY, FRONT NO.2, SPEAKER ASSY, STEREO COMPONENT.
