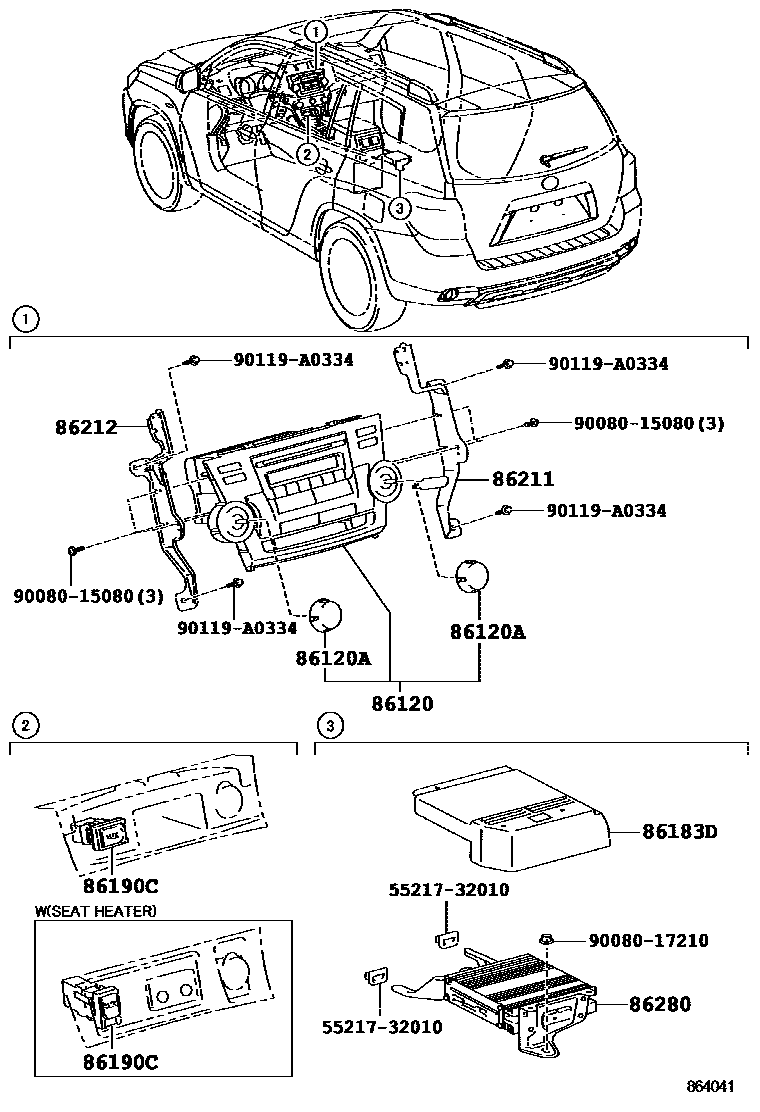

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
DELPHI,ID=AD1821,BLACK,TRIM1#,4#
PANASONIC,AUDIO-CD 6SPEAKER,BLACK,TRIM1#,2#; PANASONIC,BLACK,TRIM1#
PANASONIC,AUDIO-CD 6SPEAKER,DK. BROWN,TRIM4#; PANASONIC,DK. BROWN,TRIM4#
PANASONIC,AUDIO-6CD-CHANGER 6SPEAKER,BLACK,TRIM1#; PANASONIC,BLACK,TRIM1#,2#
PANASONIC,AUDIO-6CD-CHANGER 6SPEAKER,DK. BROWN,TRIM4#; PANASONIC,DK. BROWN,TRIM4#
PANASONIC,AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH,BLACK,TRIM1#,2#
PANASONIC,AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH,DK. BROWN,TRIM4#
PANASONIC,ID=A518AW,AUDIO-CD USB 6SPEAKER BLUETOOTH,BLACK,TRIM1#,2#,4#; PANASONIC,ID=A518AW,BLACK,TRIM1#,2#,4#
PANASONIC,ID=A518AX,CANADA SPEC&AUDIO-CD USB 6SPEAKER BLUETOOTH,BLACK,TRIM1#,2#,4#
PANASONIC,ID=A518AY,AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH,BLACK,TRIM1#,2#,4#
PANASONIC,ID=A518AZ,CANADA SPEC&AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH,BLACK,TRIM1#,2#,4#
86120AKNOB, RADIO RECEIVER SWITCH
86183DCOVER, AUDIO AMPLIFIER
AUDIO-CD USB 6SPEAKER BLUETOOTH
86190CADAPTER ASSY, STEREO JACK, NO.1
SEAT COVER MATERIAL-LEATHER; SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE)
SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER USB 9SP JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-CD USB 6SPEAKER BLUETOOTH; SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE)
AUDIO-CD USB 6SPEAKER BLUETOOTH
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-CD USB 6SPEAKER BLUETOOTH
AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
WITHOUT(REAR NO.2 SEAT)&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; WITHOUT(REAR NO.2 SEAT)&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
WITHOUT(REAR NO.2 SEAT)&AUDIO-6CD-CHANGER 9SPEAKER JBL BLUETOOTH; WITHOUT(REAR NO.2 SEAT)&AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER 9SPEAKER JBLBLUETOOTH; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER 9SPEAKERJBL BLUETOOTH
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER 9SPEAKER JBLBLUETOOTH; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER 9SPEAKERJBL BLUETOOTH
AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH; AUDIO-AVN 4CD-CHANGER USB 9SP JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-6CD-CHANGER USB 9SPEAKER JBL BLUETOOTH; SEAT COVER MATERIAL-LEATHER&AUDIO-AVN 4CD-CHANGER USB 9SP JBL BLUETOOTH
5521732010STRIP, DASH PANEL SILENCER FINISH
main55217-32010
9008015080
main90080-15080
9008017210
main90080-17210
90119A0334
main90119-A0334
11 parts on this diagram · 4 diagrams in section
