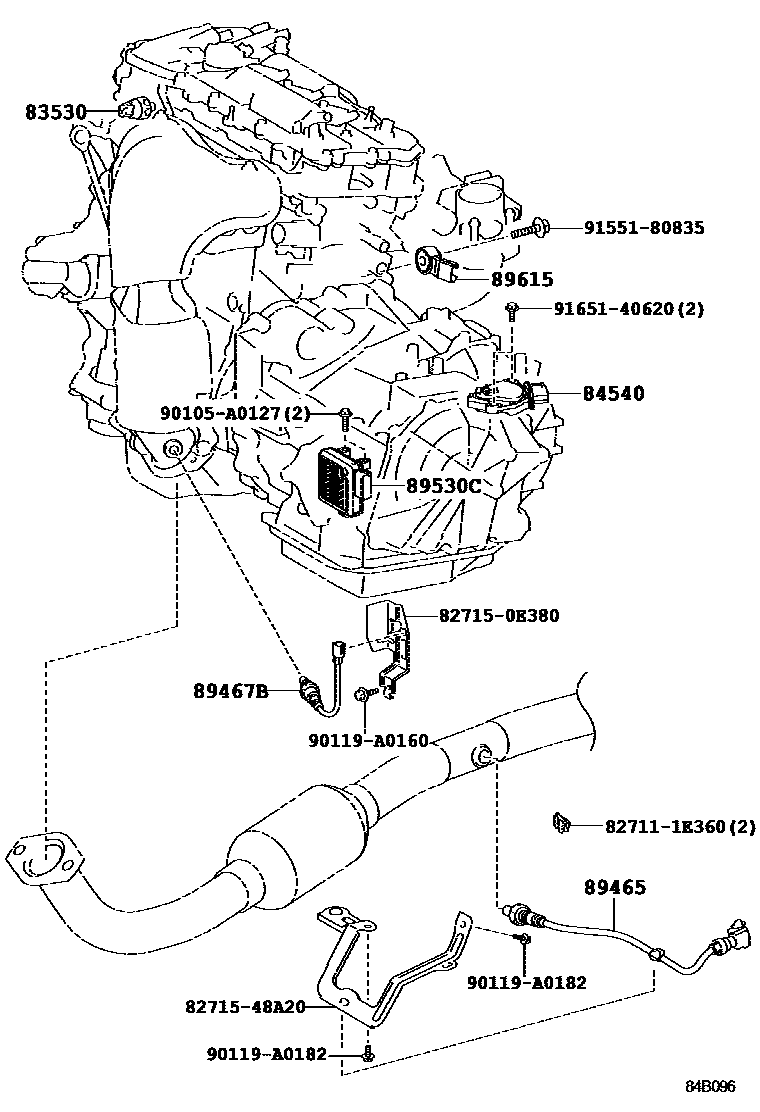

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 1/2 0004 1ENGINE ROOM 2/2 0005 1COWL 0006 1INSTRUMENT PANEL 1/2 0007 1INSTRUMENT PANEL 2/2 0008 1STEERING 0009 1SEAT 0010 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iASU40,GSU4#200910-201008

(L),DENSO

main83530-28020iASU40,GSU4#200910-201008

(J),DENSO

main83530-60020iASU40,GSU4#200910-201008

YAZAKI

84540SWITCH ASSY, NEUTRAL START

main84540-33010iASU40200910-201312

main84540-42010iGSU4#200910-201312

89465SENSOR, OXYGEN

main89465-0E030iGSU4#200910-201008

main89465-0E080iASU40200910-201008

89467BSENSOR, AIR FUEL RATIO

main89467-0E040iGSU4#200910-201008

main89467-0E080iASU40200910-201008

main89467-0E140iGSU4#201208

main89467-48210iGSU4#201008-201208

89530CCOMPUTER ASSY, TRANSMISSION CONTROL

main89530-0E030iASU40200910-201008

main89530-0E040iASU40201008-201110

main89530-0E041iASU40201110

89615SENSOR, KNOCK CONTROL

main89615-06010iGSU4#200910-201008

(L)

main89615-20090iASU40200910-201004

(J)

main89615-20090iASU40200910-201008

827111E360WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E360

827150E380BRACKET,WIRING HARNESS CLAMP

main82715-0E380

8271548A20BRACKET,WIRING HARNESS CLAMP

main82715-48A20

90105A0127

main90105-A0127

90119A0160

main90119-A0160

90119A0182

main90119-A0182

9155180835

main91551-80835

9165140620

main91651-40620

14 parts on this diagram · 10 diagrams in section
