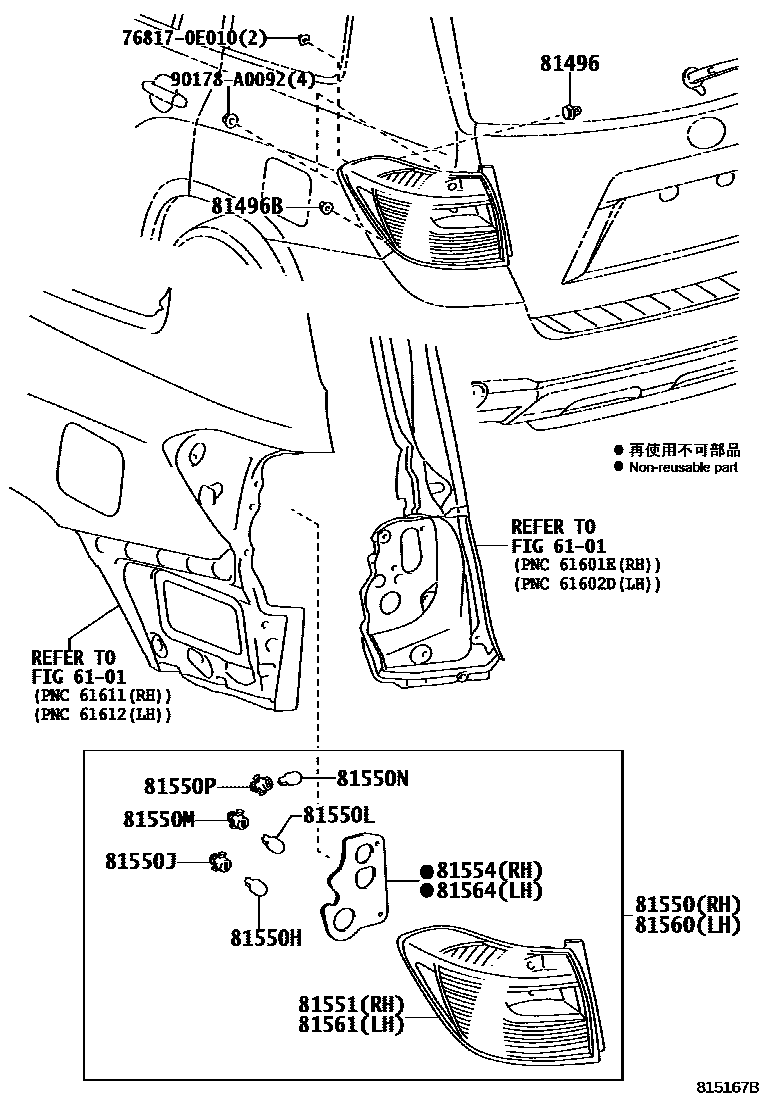

REAR COMBINATION LAMP

0001 1 0002 1

6101SIDE MEMBER

→ Go to FIG 61-01

81496GUIDE, REAR COMBINATION LAMP

main81496-0E010×2iASU40,GSU4#200910-201008

81496BGUIDE, REAR LAMP

main81496-0E020×2iASU40,GSU4#200910-201008

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E050iASU40,GSU4#..LIMD,M,STD200910-201008

main81550-0E060iGSU4#..SPO200910-201008

main81550-0E070iASU40,GSU4#201008

81550HBULB, TAIL & STOP LAMP

main90981-13044×2iASU40,GSU4#200910-201008

81550JSOCKET, TAIL & STOP LAMP

main90075-60002×2iASU40,GSU4#201008

main90075-60079×2iASU40,GSU4#200910-201008

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043×2iASU40,GSU4#200910-201008

main90981-15021×2iASU40,GSU4#201008

81550MSOCKET, REAR TURN SIGNAL LAMP

main90075-60026×2iASU40,GSU4#201008

main90075-60070×2iASU40,GSU4#200910-201008

81550NBULB, BACK UP LAMP

main90084-98039×2iASU40,GSU4#200910-201008

81550PSOCKET, BACK UP LAMP

main90075-60063×2iASU40,GSU4#200910-201008

81551LENS, REAR COMBINATION LAMP, RH

main81551-0E050iASU40,GSU4#..LIMD,M,STD200910-201008

main81551-0E060iGSU4#..SPO200910-201008

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-0E050iASU40,GSU4#200910-201008

main81554-0E070iASU40,GSU4#201008

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E050iASU40,GSU4#..LIMD,M,STD200910-201008

main81560-0E060iGSU4#..SPO200910-201008

main81560-0E070iASU40,GSU4#201008

81561LENS, REAR COMBINATION LAMP, LH

main81561-0E050iASU40,GSU4#..LIMD,M,STD200910-201008

main81561-0E060iGSU4#..SPO200910-201008

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-0E050iASU40,GSU4#200910-201008

main81564-0E070iASU40,GSU4#201008

768170E010CLIP, BACK DOOR OUTSIDE GARNISH

main76817-0E010

90178A0092

main90178-A0092

17 parts on this diagram · 2 diagrams in section
