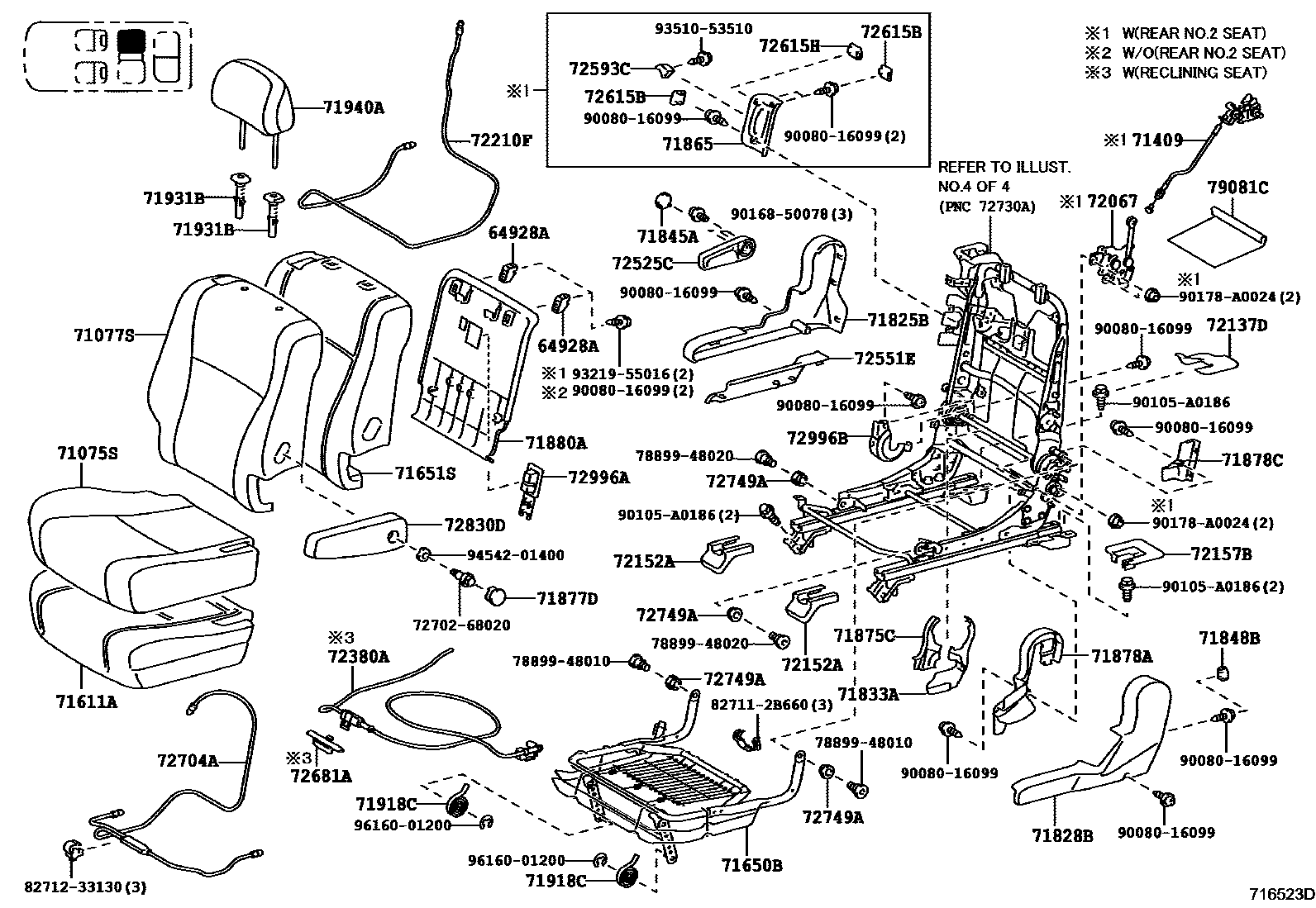

REAR SEAT & SEAT TRACK
64928AHOLDER, TONNEAU COVER HOOK
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)
GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT),GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT),GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#
WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
71409STOPPER SUB-ASSY, REAR SEATBACK
71611APAD, REAR SEAT CUSHION, RH
71650BSPRING ASSY, REAR SEAT CUSHION, RH
71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)
WITHOUT(REAR NO.2 SEAT); WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER
71825BMOULDING, REAR SEAT CUSHION, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71828BMOULDING, REAR SEAT CUSHION, REAR RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71833ACOVER, REAR SEAT RECLINING, NO.1 RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71845ACOVER, REAR SEAT RECLINING, UPPER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; WITHOUT(REAR NO.2 SEAT),GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#
71848BCAP, SEAT ADJUSTER COVER, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71865BEZEL, REAR SEAT COVER, NO.1
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71875CCOVER, RECLINING ADJUSTER INSIDE, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71877DCOVER, REAR SEAT ARMREST HOLE
GRAY,TRIM1#
BLACK,TRIM2#; CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SAND BEIGE,TRIM4#
71878ACOVER, REAR SEAT RECLINING, INNER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71878CCOVER, REAR SEAT RECLINING, INNER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
71880ACARPET ASSY, REAR SEATBACK BOARD, RH
LT.GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,LT.GRAY,TRIM1#; WITHOUT(REAR NO.2 SEAT),LT.GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#
WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#
71918CSPRING, CENTER SEAT CUSHION CATCH
71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST
W(LOCK),GRAY,TRIM1#; W(LOCK),SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#; W(LOCK),SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
W(LOCK),SAND BEIGE,TRIM4#
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
W(LOCK)&W/O(BUTTON),SAND BEIGE,TRIM4#
W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),BLACK,TRIM2#
W/O(LOCK),SAND BEIGE,TRIM4#; W/O(LOCK),SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),SAND BEIGE,TRIM4#
W/O(LOCK),GRAY,TRIM1#; W/O(LOCK),SEAT HEATER-WITH(TEMPERATURE CONTROL TYPE),GRAY,TRIM1#
71940AHEADREST ASSY, REAR SEAT
GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; GRAY,TRIM1#
BLACK,TRIM2#; CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
BLACK,TRIM2#; CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; SAND BEIGE,TRIM4#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH
72137DCOVER, REAR SEAT TRACK, RH
GRAY,TRIM1#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
SAND BEIGE,TRIM4#
72152ACOVER, REAR SEAT TRACK BRACKET, INNER
GRAY,TRIM1#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
SAND BEIGE,TRIM4#
WITHOUT(REAR NO.2 SEAT),GRAY,TRIM1#
WITHOUT(REAR NO.2 SEAT),BLACK,TRIM2#
WITHOUT(REAR NO.2 SEAT),SAND BEIGE,TRIM4#
72157BCOVER, REAR SEAT TRACK BRACKET, INNER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72210FCABLE ASSY, SEAT TRACK CONTROL
72380ACABLE ASSY, SEAT ADJUSTER CONTROL, NO.2
CORE PACKAGE; CORE PACKAGE&SEAT COVER MATERIAL-FABRIC; CORE+ PACKAGE&SEAT COVER MATERIAL-LEATHER
72525CHANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72551ECOVER, RECLINING HINGE, RH
GRAY,TRIM1#
BLACK,TRIM1#,2#,4#; BLACK,TRIM1#,4#
SAND BEIGE,TRIM4#
72593CKNOB, RECLINING REMOTE CONTROL LEVER, NO.2
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72615BCOVER, REAR SEAT LOCK STRIKER, RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72615HCOVER, REAR SEATBACK LOCK STRIKER, NO.1
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72681AHOOK, REAR SEAT
REAR SEAT-FOLDING&FRONT SEAT ADJUSTER-DRIVER:8WAY POWER/PASSENGER:4WAY MANUAL
72704ACABLE, REAR SEAT RECLINING CONTROL
WITHOUT(REAR NO.2 SEAT); WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER
72749ASPACER, REAR SEAT RECLINING
72830DARMREST ASSY, REAR SEAT, RH
GRAY,TRIM1#; SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#
BLACK,TRIM2#; SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#
SAND BEIGE,TRIM4#; SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#; WITHOUT(REAR NO.2 SEAT)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,GRAY,TRIM1#
CORE PACKAGE&SEAT COVER MATERIAL-FABRIC,SAND BEIGE,TRIM4#
72996ACOVER, REAR SEATBACK
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
72996BCOVER, REAR SEATBACK, INNER RH
GRAY,TRIM1#
BLACK,TRIM2#
SAND BEIGE,TRIM4#
79081CCOVER, REAR SEAT, NO.1
7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-68020
7889948010BOLT, FRONT SEAT
main78899-48010
7889948020BOLT, FRONT SEAT
main78899-48020
827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2B660
8271233130CLAMP, WIRING HARNESS
main82712-33130
9008016099
main90080-16099
90105A0186
main90105-A0186
9016850078
main90168-50078
90178A0024
main90178-A0024
9321955016
main93219-55016
9351053510
main93510-53510
9454201400
main94542-01400
9616001200
main96160-01200
52 parts on this diagram · 7 diagrams in section
