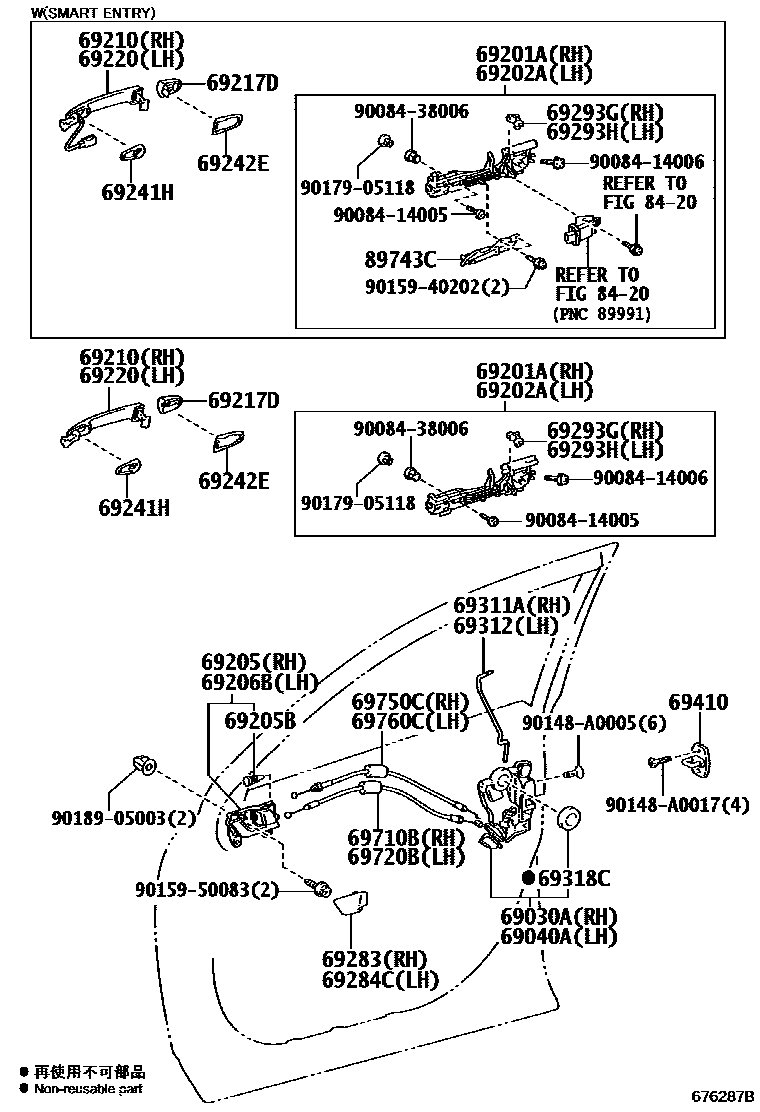

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
BLACK,TRIM1#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
CORE PACKAGE,BLACK,TRIM1#,2#,4#; CORE+ PACKAGE,BLACK,TRIM1#,2#,4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM1#,2#,4#
DK. BROWN,TRIM4#
BLACK,TRIM1#
DK. BROWN,TRIM4#
BLACK,TRIM1#,2#
DK. BROWN,TRIM4#
CORE PACKAGE,BLACK,TRIM1#,2#,4#; CORE+ PACKAGE,BLACK,TRIM1#,2#,4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
WHITE PEARL CS.,070,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
BLACK,202,DRIVER SIDE
DK. RED M.M.,3Q3,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
OLIVE M.M.,6T7,DRIVER SIDE
LT.BLUE M.M.,8S7,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
GRAYISH BLUE M.M.,8V5,DRIVER SIDE
WHITE PEARL CS.,070,PASSENER SIDE
SILVER ME.,1F7,PASSENER SIDE
GRAY ME.,1G3,PASSENER SIDE
BLACK,202,PASSENER SIDE
DK. RED M.M.,3Q3,PASSENER SIDE
BLACKISH RED MC.,3R0,PASSENER SIDE
BEIGE ME.,4T8,PASSENER SIDE
OLIVE M.M.,6T7,PASSENER SIDE
LT.BLUE M.M.,8S7,PASSENER SIDE
BLUE ME.,8T7,PASSENER SIDE
DK.BLUE MC.,8S6,PASSENER SIDE
GRAYISH BLUE M.M.,8V5,PASSENER SIDE
WHITE PEARL CS.,070,PASSENER SIDE
GRAY ME.,1G3,PASSENER SIDE
SILVER ME.,1F7,PASSENER SIDE
BLACK,202,PASSENER SIDE
DK. RED M.M.,3Q3,PASSENER SIDE
BLACKISH RED MC.,3R0,PASSENER SIDE
BEIGE ME.,4T8,PASSENER SIDE
OLIVE M.M.,6T7,PASSENER SIDE
LT.BLUE M.M.,8S7,PASSENER SIDE
BLUE ME.,8T7,PASSENER SIDE
DK.BLUE MC.,8S6,PASSENER SIDE
GRAYISH BLUE M.M.,8V5,PASSENER SIDE
WHITE PEARL CS.,070,DRIVER SIDE
GRAY ME.,1G3,DRIVER SIDE
SILVER ME.,1F7,DRIVER SIDE
BLACK,202,DRIVER SIDE
DK. RED M.M.,3Q3,DRIVER SIDE
BLACKISH RED MC.,3R0,DRIVER SIDE
BEIGE ME.,4T8,DRIVER SIDE
OLIVE M.M.,6T7,DRIVER SIDE
DK.BLUE MC.,8S6,DRIVER SIDE
LT.BLUE M.M.,8S7,DRIVER SIDE
BLUE ME.,8T7,DRIVER SIDE
GRAYISH BLUE M.M.,8V5,DRIVER SIDE
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
BLACKISH RED MC.,3R0
DK. RED M.M.,3Q3
BEIGE ME.,4T8
OLIVE M.M.,6T7
LT.BLUE M.M.,8S7
BLUE ME.,8T7
DK.BLUE MC.,8S6
GRAYISH BLUE M.M.,8V5
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
BLACKISH RED MC.,3R0
BEIGE ME.,4T8
OLIVE M.M.,6T7
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
BLUE ME.,8T7
GRAYISH BLUE M.M.,8V5
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420WIRELESS DOOR LOCK
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9008414005
main90084-14005
9008414006
main90084-14006
9008438006
main90084-38006
90148A0005
main90148-A0005
90148A0017
main90148-A0017
9015940202
main90159-40202
9015950083
main90159-50083
9017905118
main90179-05118
9018905003
main90189-05003
35 parts on this diagram · 1 diagram in section
