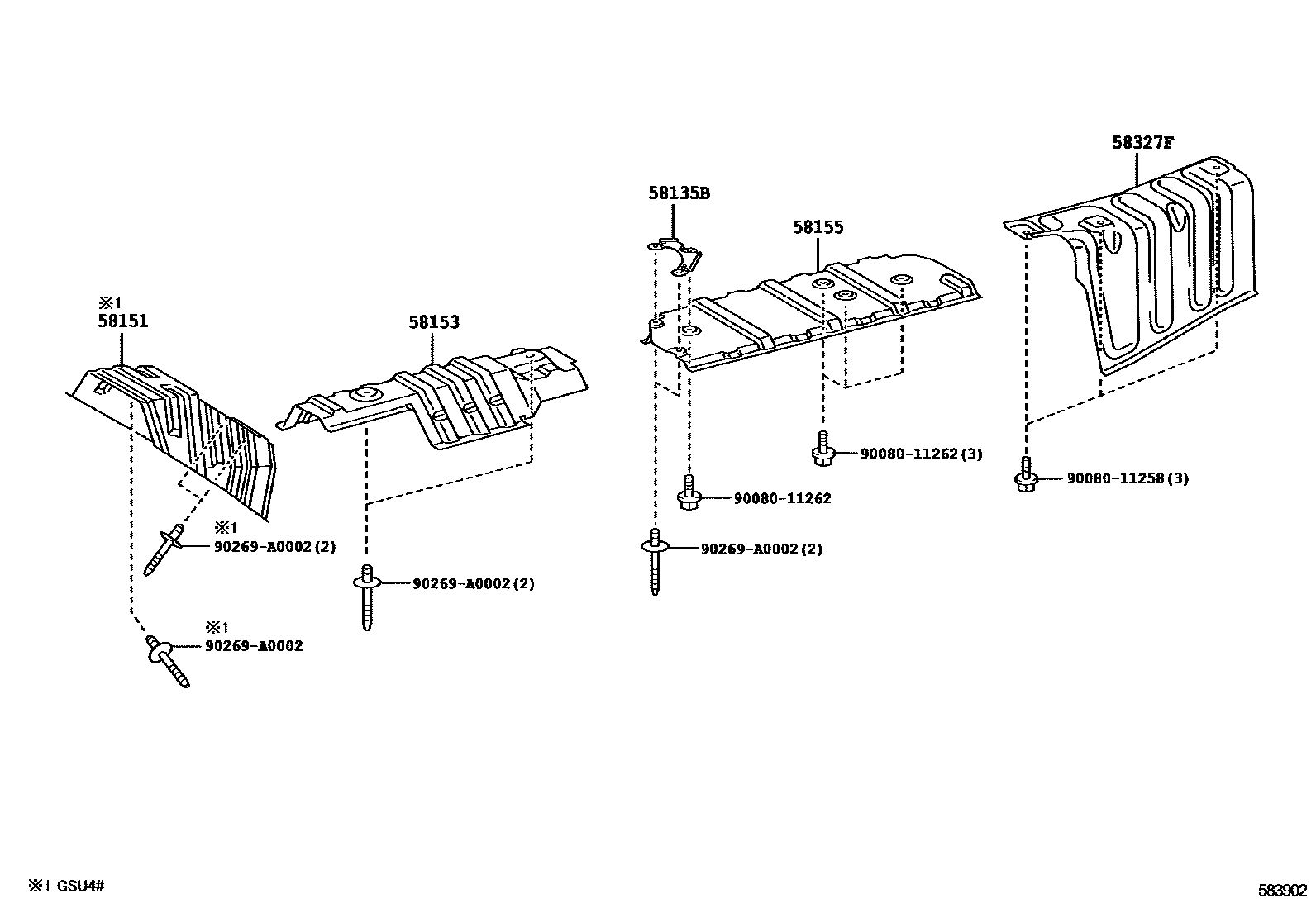

FLOOR INSULATOR

58135BBRACKET, FLOOR INSULATOR SUPPORT

main58135-0E010iASU40,GSU4#200910-201008

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0E030iGSU4#200910-201008

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0E040iASU40,GSU4#200910-201008

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-0E020iASU40,GSU4#200910-201008

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-0E030iASU40,GSU4#200910-201008

9008011258

main90080-11258

9008011262

main90080-11262

90269A0002

main90269-A0002

8 parts on this diagram · 1 diagram in section
