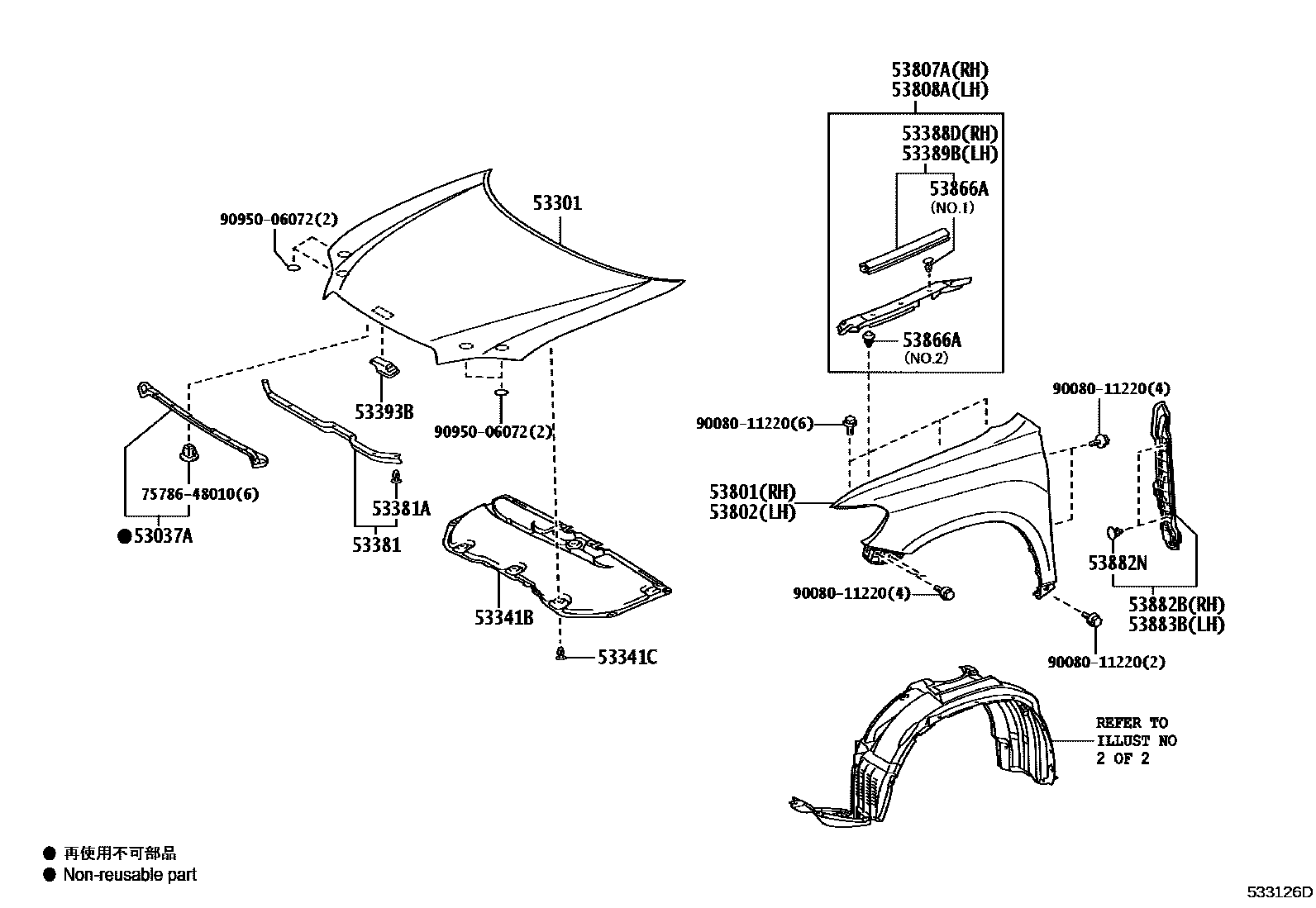

HOOD & FRONT FENDER

0001 1 0002 1 0003 1

53037ASEAL SUB-ASSY, RADIATOR

main53037-0E030iASU40,GSU4#200910-201008

53301HOOD SUB-ASSY

main53301-0E050iASU40,GSU4#200910-201008

main53301-0E080iASU40,GSU4#201008-201312

53341BINSULATOR, HOOD

main53341-0E050iASU40,GSU4#200910-201007

main53341-0E051iASU40,GSU4#201008

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×8iASU40,GSU4#201008

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-0E050iASU40,GSU4#200910-201008

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×8iASU40,GSU4#200910-201008

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-0E050iASU40,GSU4#201008

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-0E050iASU40,GSU4#200910-201008

53393BPROTECTOR, HOOD, FRONT

main53393-0E040iASU40,GSU4#200910-201008

53801FENDER SUB-ASSY, FRONT RH

main53801-0E030iGSU4#..LIMD,M,SPO; GSU4#..STD200910-201008

AUDIO-AVN 4CD-CHANGER 9SPEAKER JBL BLUETOOTH

main53801-0E080supersedes 53801-0E040iGSU4#..LIMD201008-201312

main53801-0E040iASU40,GSU4#..STD; GSU4#..STD200910-201008

CANADA SPEC&AUDIO-6CD-CHANGER 6SPEAKER

53802FENDER SUB-ASSY, FRONT LH

main53802-0E030iASU40,GSU4#200910-201008

main53802-0E050iASU40,GSU4#201008-201312

53807ASHIELD SUB-ASSY, FENDER SPLASH, REAR RH

main53807-0E040iASU40,GSU4#200910-201008

main53807-0E050iASU40,GSU4#201008

53808ASHIELD SUB-ASSY, FENDER SPLASH, REAR LH

main53808-0E040iASU40,GSU4#200910-201008

main53808-0E050iASU40,GSU4#201008

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-08108×6iASU40,GSU4#200910-201008

NO.1

main90467-10161×6iASU40,GSU4#200910-201008

NO.2

53882BSEAL, FRONT FENDER, RH

main53882-0E040iASU40,GSU4#200910-201008

main53882-0E041iASU40,GSU4#201011

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×4iASU40,GSU4#200910-201008

BLACK

53883BSEAL, FRONT FENDER, LH

main53883-0E040iASU40,GSU4#200910-201008

main53883-0E041iASU40,GSU4#201011

7578648010MOULDING, QUARTER WINDOW, FRONT LH

main75786-48010

9008011220

main90080-11220

9095006072

main90950-06072

20 parts on this diagram · 3 diagrams in section
