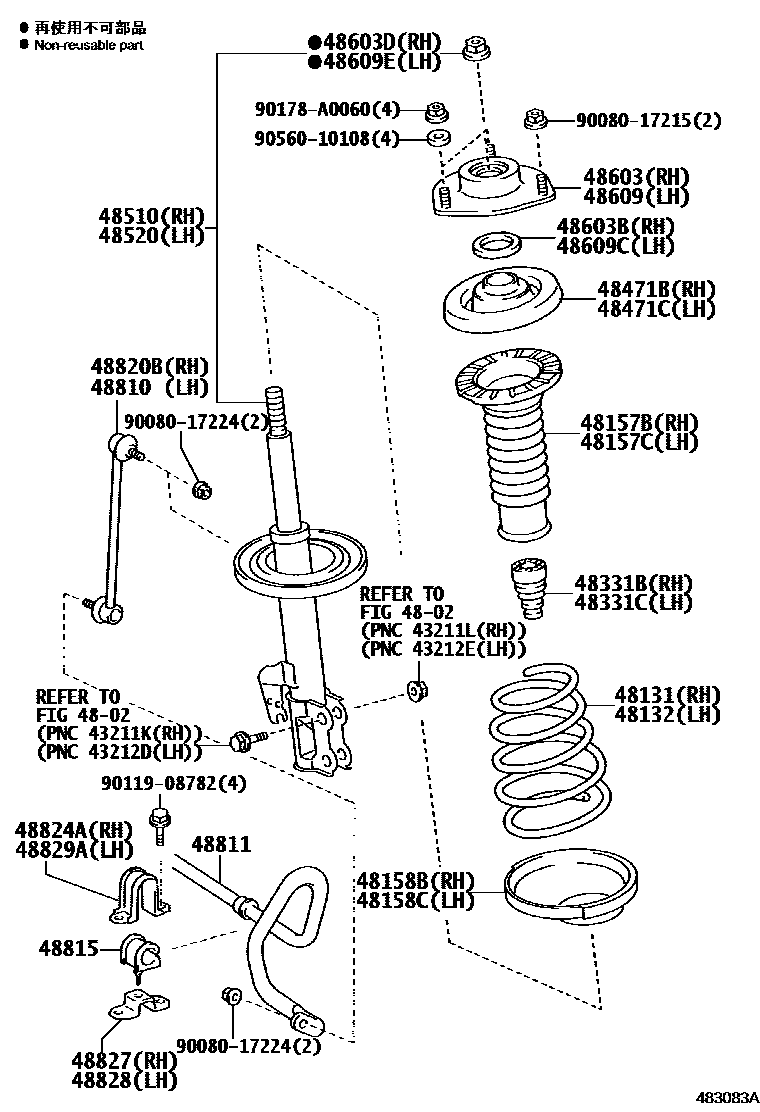

FRONT SPRING & SHOCK ABSORBER
4802FRONT AXLE ARM & STEERING KNUCKLE
48131SPRING, FRONT COIL, RH
MEXICO SPEC
48132SPRING, FRONT COIL, LH
MEXICO SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48471BSEAT, FRONT COIL SPRING, UPPER RH
48471CSEAT, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-0E070; MARK 48510-0E070,MEXICO SPEC
MARK 48510-0E080
MARK 48510-0E090
MARK 48510-0E120
MARK 48510-0E130
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-0E070; MARK 48520-0E070,MEXICO SPEC
MARK 48520-0E080
MARK 48520-0E090
MARK 48520-0E120
MARK 48520-0E130
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9008017215
main90080-17215
9008017224
main90080-17224
9011908782
main90119-08782
90178A0060
main90178-A0060
9056010108
main90560-10108
32 parts on this diagram · 1 diagram in section
