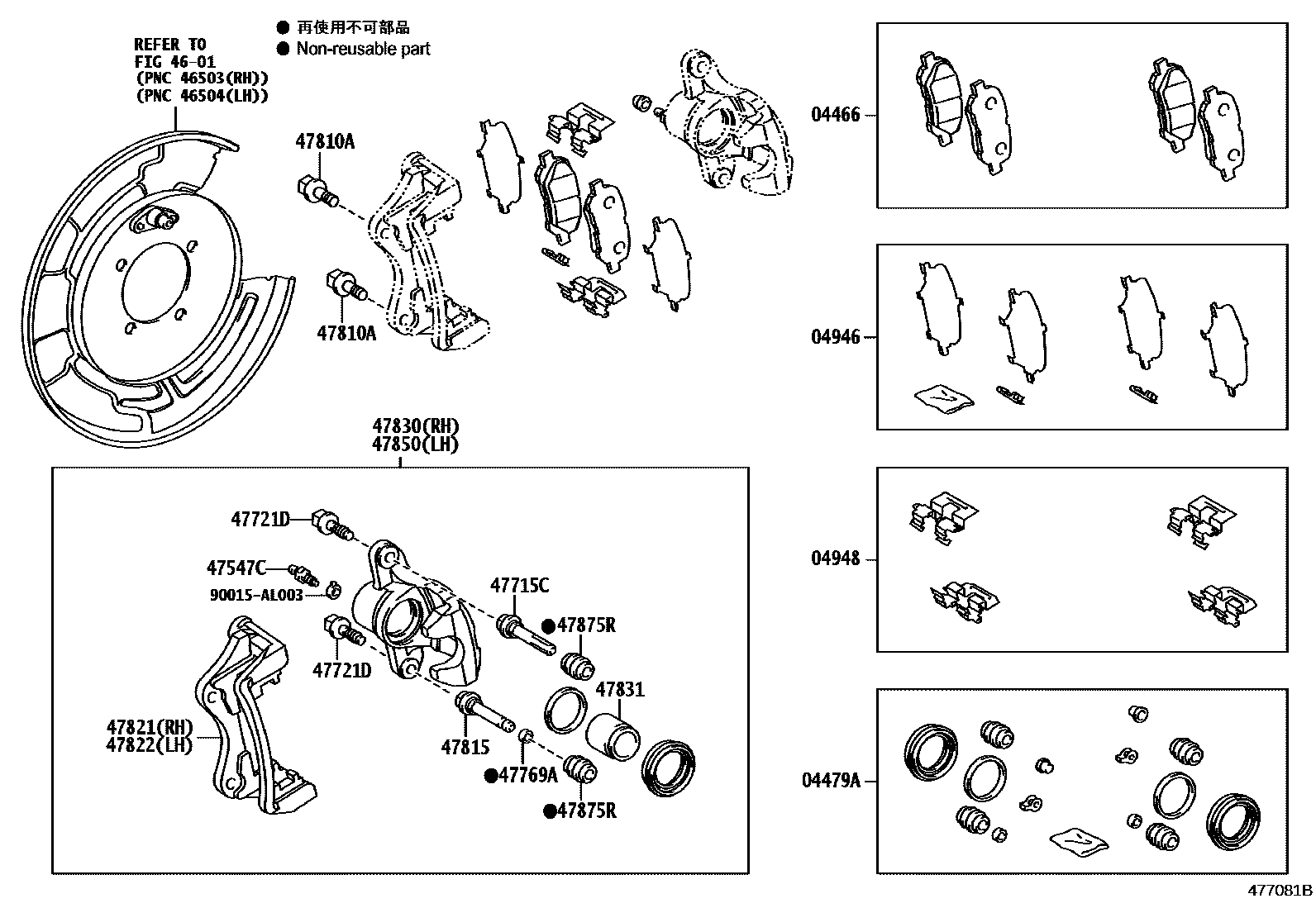

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-0E020iASU40,GSU4#200910-201008

MARK AK PA561

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-0E040iASU40,GSU4#200910-201008

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-0E040iASU40,GSU4#200910-201008

04948FITTING KIT, DISC BRAKE, REAR

main04948-0E020iASU40,GSU4#200910-201008

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-27040×2iASU40,GSU4#200910-201008

main47847-48100×2iASU40,GSU4#201008

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-02200×2iASU40,GSU4#200910-201008

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90016-AA604×4iASU40,GSU4#200910-201008

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-06020×2iASU40,GSU4#200910-201008

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90080-10395×4iASU40,GSU4#200910-201008

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-0E040×2iASU40,GSU4#200910-201008

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-0E040iASU40,GSU4#200910-201008

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-0E040iASU40,GSU4#200910-201008

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-0E040iASU40,GSU4#200910-201008

main47830-0E050iASU40,GSU4#201008

47831PISTON, REAR DISC BRAKE

main47831-0E040×2iASU40,GSU4#200910-201008

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-0E040iASU40,GSU4#200910-201008

main47850-0E050iASU40,GSU4#201008

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-0E040×4iASU40,GSU4#200910-201008

90015AL003

main90015-AL003

18 parts on this diagram · 1 diagram in section
