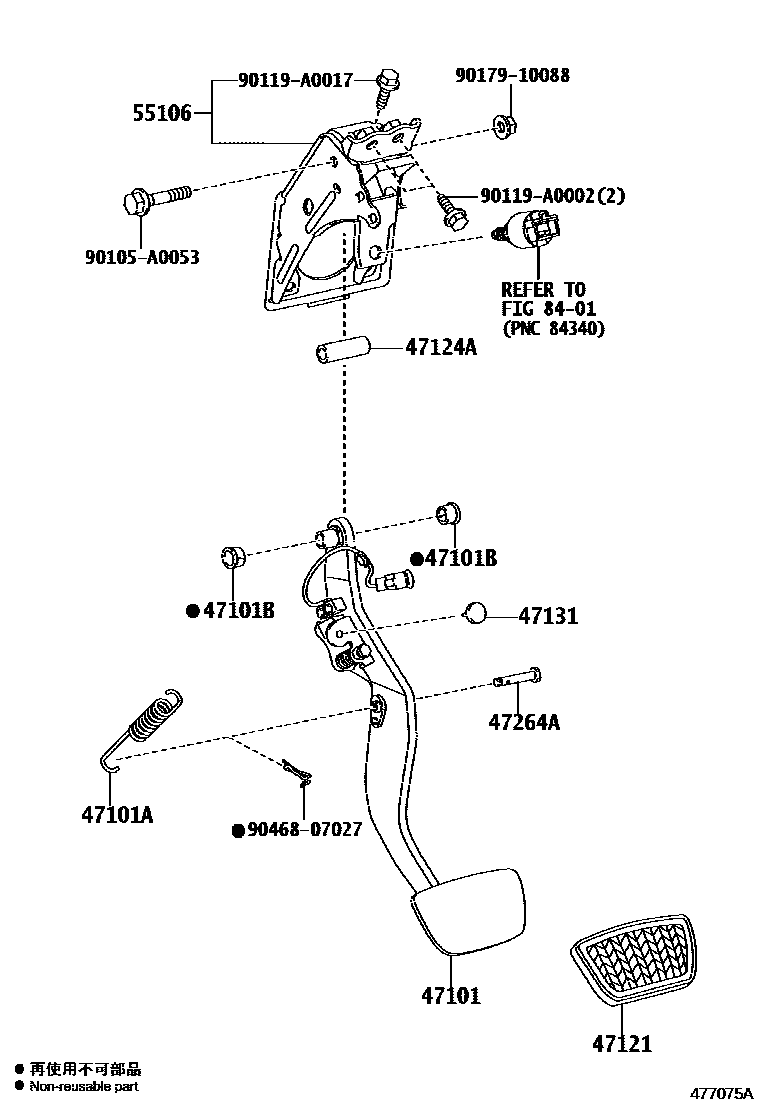

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47106-0E020iASU40,GSU4#200910-201008

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90080-50333iASU40,GSU4#200910-201004

main90507-15004iASU40,GSU4#201005-201008

47101BBUSH(FOR BRAKE PEDAL)

main90080-38144×2iASU40,GSU4#200910-201008

47121PAD, BRAKE PEDAL

main47121-0E010iASU40,GSU4#200910-201008

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90080-38147iASU40,GSU4#200910-201008

47131CUSHION(FOR STOP LAMP SWITCH)

main90080-54033iASU40,GSU4#200910-201008

47264APIN(FOR PUSH ROD)

main90080-24138iASU40,GSU4#200910-201008

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0E020iASU40,GSU4#200910-201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90105A0053

main90105-A0053

90119A0002

main90119-A0002

90119A0017

main90119-A0017

9017910088

main90179-10088

9046807027

main90468-07027

14 parts on this diagram · 1 diagram in section
