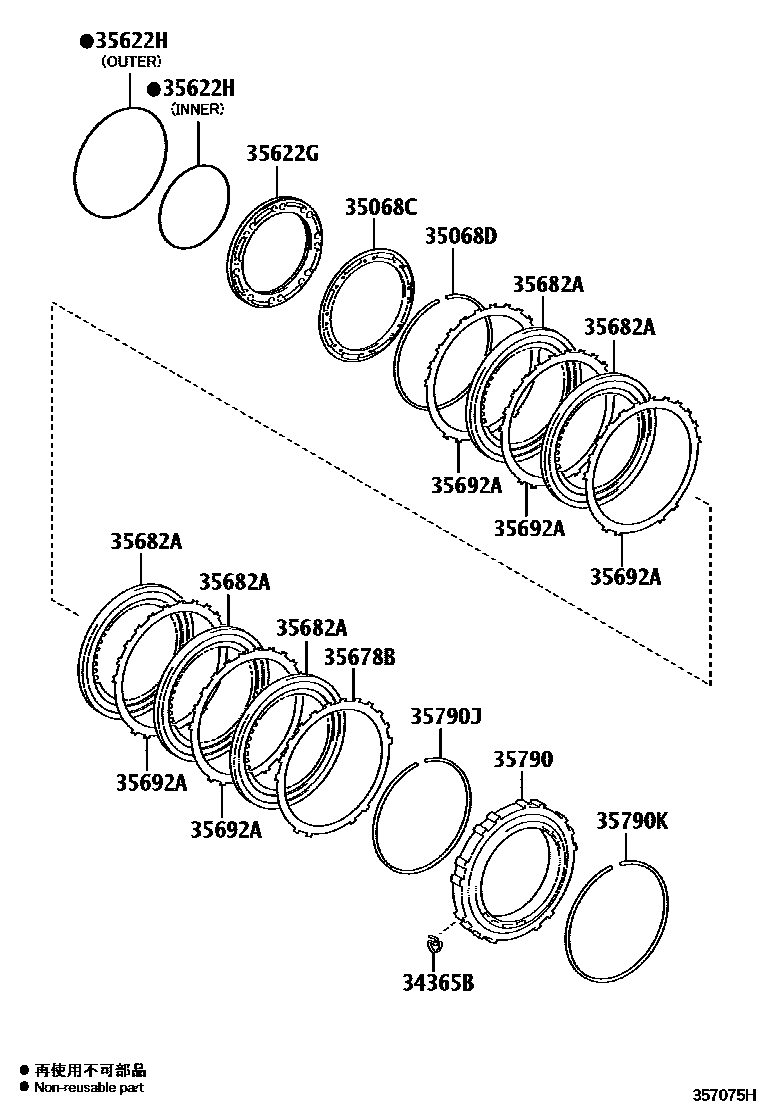

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)
34365BRETAINER, OUTER RACE
35068CSPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
*325
35068DRING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)
*285
*325
35622GPISTON, BRAKE, NO.2
*325
*325,(J)
*285
35622HRING, O (FOR BRAKE PISTON NO.2)
INNER
OUTER
*285,INNER
*285,OUTER
*325,INNER
*325,OUTER
35678BFLANGE, BRAKE, NO.2
T=4.0,MARK 40,*325
T=4.1,MARK 41,*325
T=4.2,MARK 42,*325
T=4.3,MARK 43,*325
T=4.4,MARK 44,*325
T=4.0,MARK 40,*285
T=4.1,MARK 41,*285
T=4.2,MARK 42,*285
T=4.3,MARK 43,*285
T=4.4,MARK 44,*285
T=4.0,MARK 40
T=4.1,MARK 41
T=4.2,MARK 42
T=4.3,MARK 43
T=4.4,MARK 44
35692APLATE, BRAKE, NO.2
*325
*285
35790CLUTCH ASSY, 1 WAY
*325
35790JRING, SNAP NO.1 (FOR 1 WAY CLUTCH)
*325
35790KRING, SNAP NO.2 (FOR 1 WAY CLUTCH)
*325
11 parts on this diagram · 2 diagrams in section
