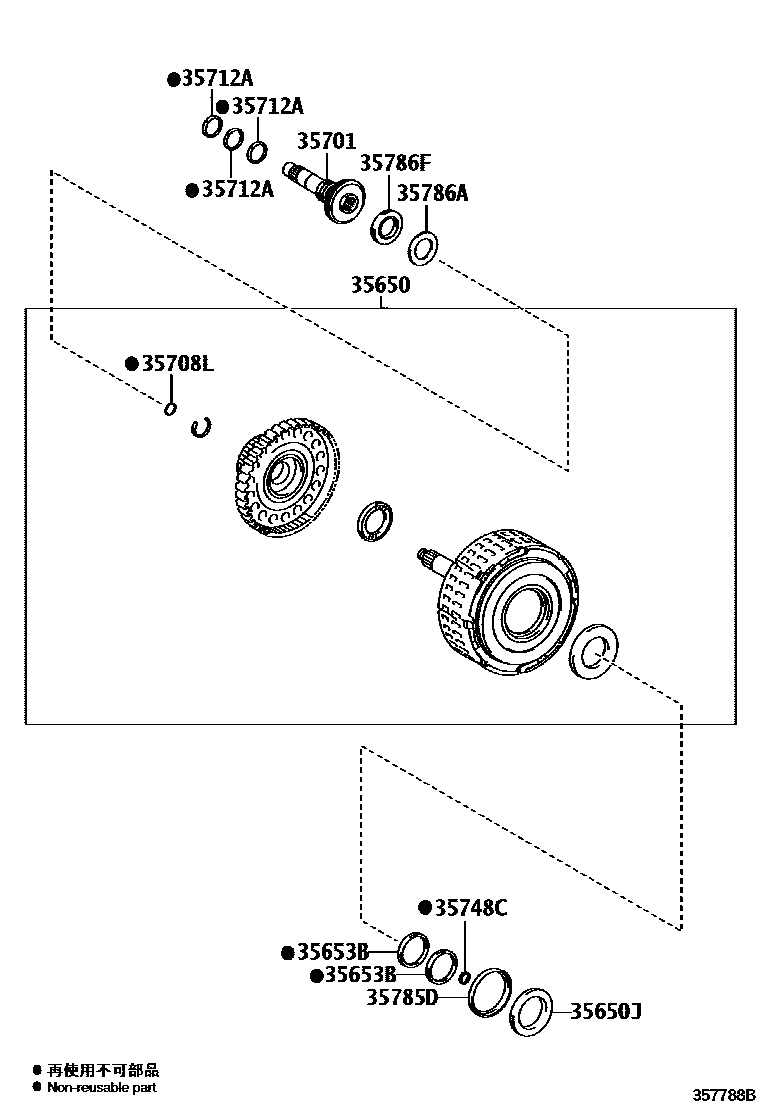

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)

0001 1U760E 0002 1U151E,U151F

35650CLUTCH ASSY, REAR MULTIPLE DISC

main35650-0R012iASU40201308

*325

main35650-33090iASU40201008

*285

35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)

main90374-48006iASU40200910-201008

main90374-48009iASU40201310

*285

main90374-A0032iASU40201308

*325

35653RING, REAR CLUTCH OIL SEAL, OUTER

main35653-33010×3iGSU4#200910-201008

35653BRING, DIRECT CLUTCH DRUM OIL SEAL

main35653-33010×2iASU40200910-201008

35701SHAFT SUB-ASSY, INPUT

main35701-28020iGSU4#200910-201008

main35711-33080iASU40200910-201008

main35711-33090iASU40201308

*325

35708LRING, O (FOR INTERMEDIATE SHAFT)

main90301-11027iASU40200910-201008

main90301-11032iASU40201108

*285

main90301-A0024iASU40201308

*325

35712ARING, INPUT SHAFT OIL SEAL

main35712-21010iGSU4#200910-201008

main35712-33010×3iASU40200910-201008

35748CRING, INTERMEDIATE SHAFT OIL SEAL

main35748-33010iASU40200910-201008

35785DRACE, THRUST BEARING, NO.4

main35785-06010iASU40201308

*325

main35785-33020iASU40200910-201008

main35785-48020iASU40201310

*285

35786ARACE, THRUST BEARING, NO.1

main35786-07010iASU40201308

*325

main35786-21010iGSU4#200910-201008

main35786-33010iASU40201008

*285

35786FBEARING, THRUST NEEDLE ROLLER

main90374-29005iASU40200910-201008

main90374-A0040iASU40201308

*325

11 parts on this diagram · 2 diagrams in section
