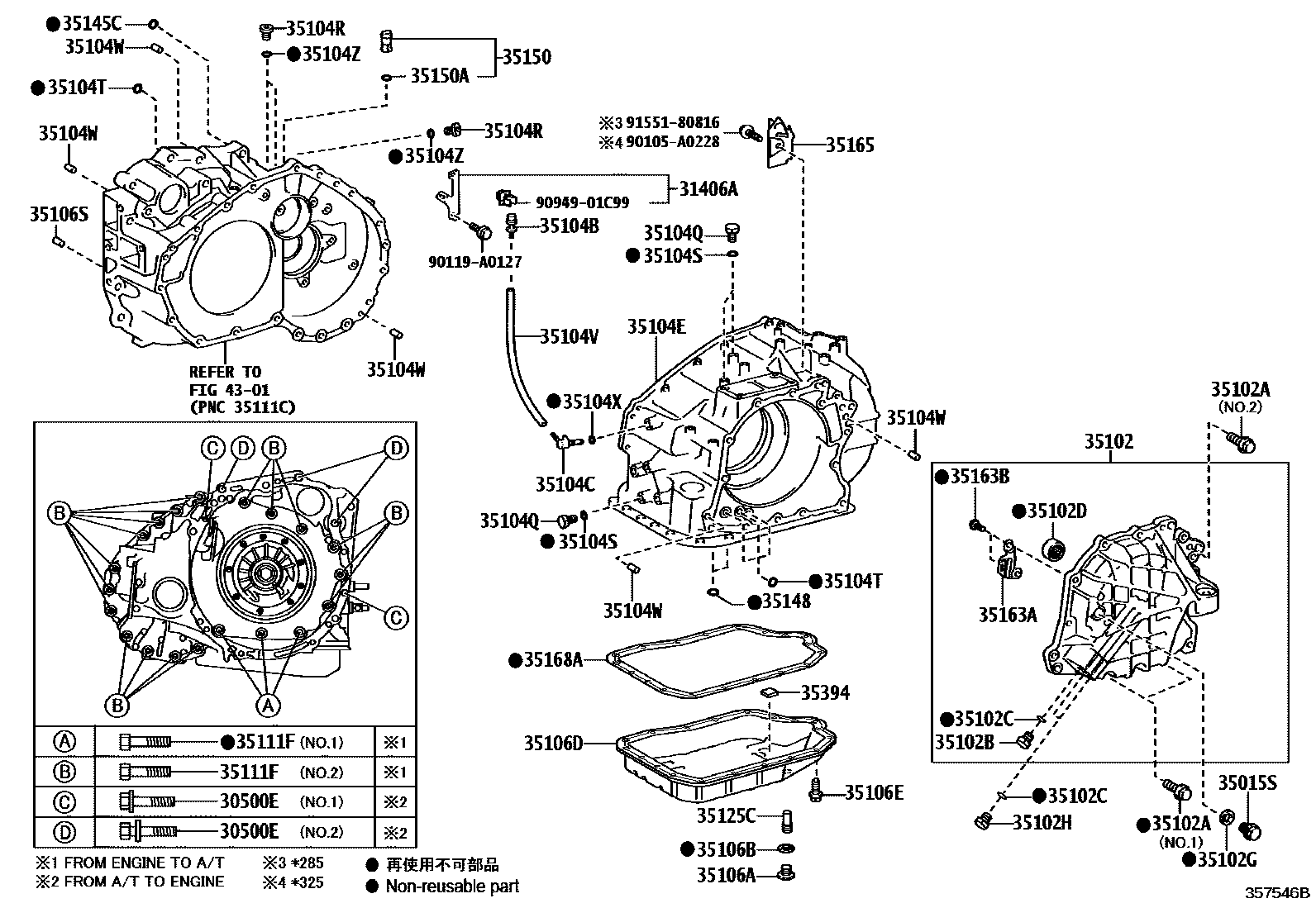

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX50-30,NO.1
*10-1.25PX41-30,NO.3
*12-1.25PX55-30,NO.1
*12-1.25PX55-30,NO.2
*12-1.25PX65-30,NO.4
*12-1.25PX50-30,NO.2
31406ABRACKET SUB-ASSY, FLEXIBLE HOSE
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
*285
*325
35102COVER SUB-ASSY, TRANSAXLE REAR
*325
*285
*285
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-25
*8-1.25PX28-22,*285,NO.1
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,*325,NO.1
*8-1.25PX28-22,*325,NO.2
*8-1.25PX28-22,NO.2
*8-1.25PX28-22,*285,NO.2
35102BPLUG(FOR TRANSAXLE REAR COVER)
*285
*325
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
*325,NO.1,(L)
*325,NO.2
*325,NO.1,(J)
*285
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
*285
*325
35102GGASKET (FOR TRANSAXLE REAR COVER )
*285
*325
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
*285
*325
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
*325
*285
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
*285
*325
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
*285
*325
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
*325
*285
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
*285
*325
35104VHOSE (FOR BREATHER PLUG)
*285
*325
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
*285
*325
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
*325
*285
35106EBOLT (FOR TRANSAXLE OIL PAN)
*325,NO.2
*285
*325,NO.1
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*6-1.00PX50-25,NO.5
*6-1.00PX50-25,*228,NO.5
*8-1.25PX72-30,*228,NO.4
*8-1.25PX72-30,NO.4
*8-1.25PX42-30,*228,NO.1
*8-1.25PX42-30,NO.1
*8-1.25PX50-30,NO.2
*8-1.25PX50-30,NO.3
*8-1.25PX50-30,*228,NO.2
*8-1.25PX50-30,*228,NO.3
*8-1.25PX45-22,*285,NO.1
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,*325,NO.1
*8-1.25PX45-22,*325,NO.2
*8-1.25PX45-22,NO.2
*8-1.25PX45-22,*285,NO.2
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35145CGASKET, TRANSAXLE CASE
*325
*285
35148GASKET, GOVERNOR APPLY, NO.1
*325
*285
35150PLUG ASSY, TRANSMISSION CASE
35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35163APLATE, TRANSAXLE REAR COVER
(L)
(J)
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
(L)
(J)
35165PLATE, TRANSMISSION CASE, NO.1
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
*325
*285
4301FRONT AXLE HOUSING & DIFFERENTIAL
90105A0228
main90105-A0228
90119A0127
main90119-A0127
9094901C99
main90949-01C99
9155180816
main91551-80816
42 parts on this diagram · 4 diagrams in section
