AIR CLEANER

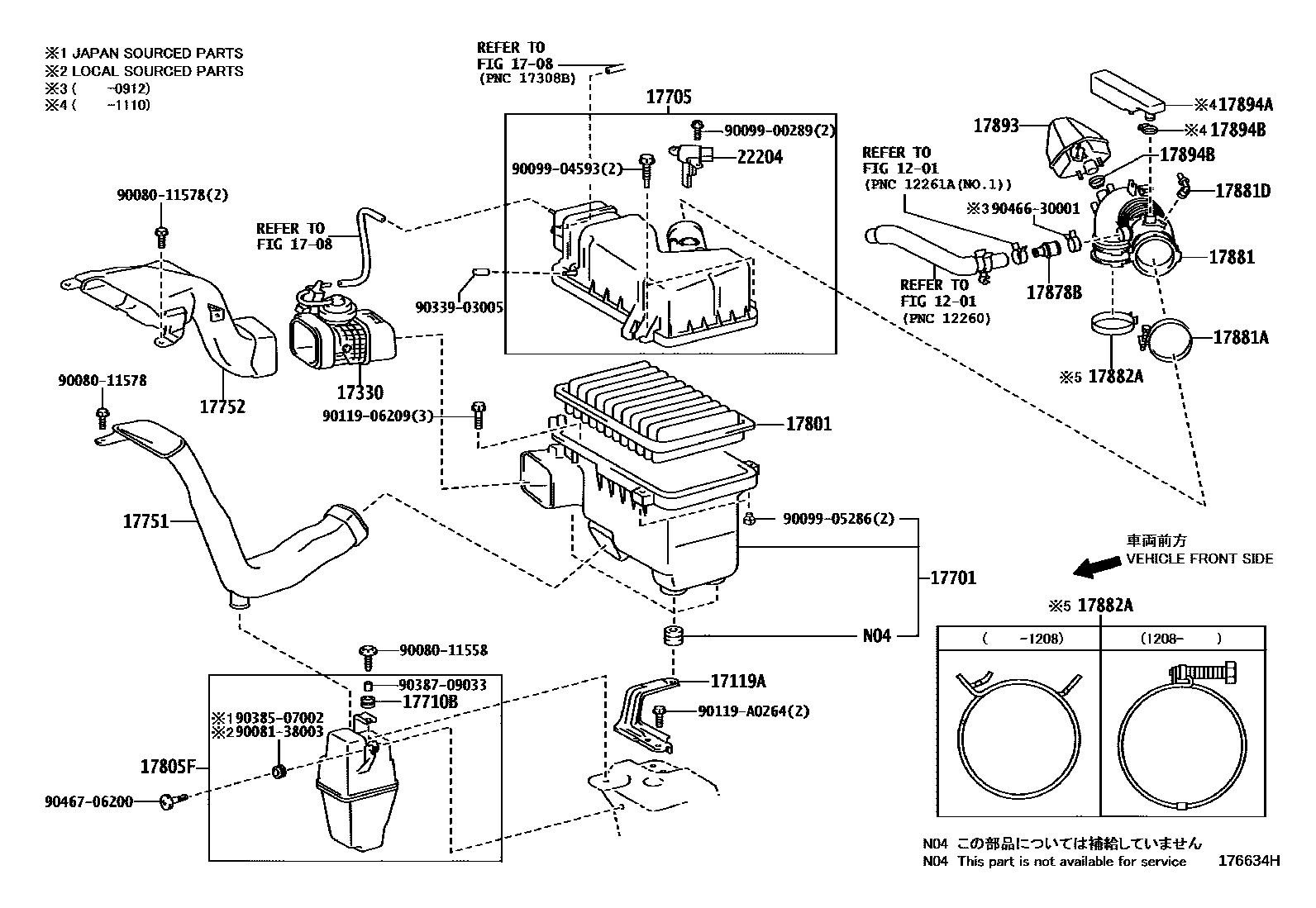

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

1708VACUUM PIPING

→ Go to FIG 17-08

17119ABRACKET, AIR CLEANER

main17119-0A010i201008

17330VALVE ASSY, INTAKE AIR CONTROL, NO.3

main17330-0A010i200910-201008

17701CASE SUB-ASSY, AIR CLEANER

main17701-0A100i200910-201008

17705CAP SUB-ASSY, AIR CLEANER

main17705-0P062i200910-201002

main17705-0P063i201003-201008

17710BGROMMET

main90480-17013i200910-201008

17751INLET, AIR CLEANER, NO.1

main17751-0P120i200910-201008

main17751-0V030i200910-201008

17752INLET, AIR CLEANER, NO.2

main17752-0P090i201008

main17752-0V020i201008

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0H010i201008

(L)

main17801-20040i200910-201008

(J)

17805FRESONATOR SUB-ASSY, INTAKE AIR

main17805-0H010i201008

17878BTUBE, VENTILATION

main17878-0V010i201008

17881HOSE, AIR CLEANER, NO.1

main17881-0P100i201008

main17881-0V040i200910-201008

main17881-0V041i201110

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10900×2i201008

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main17878-0V020i201008

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-71001i201008-201208

main96111-10850i201208

17893RESONATOR, INTAKE AIR

main17893-0P080i200910-201008

main17893-0V040i200910-201008

17894ARESONATOR, INTAKE AIR, NO.2

main17894-0V040i200910-201008

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10380i201110

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0H010i200910-201008

(L)

main22204-31020i201008

(J)

9008011558

main90080-11558

9008011578

main90080-11578

9008138003

main90081-38003

9009900289

main90099-00289

9009904593

main90099-04593

9009905286

main90099-05286

9011906209

main90119-06209

90119A0264

main90119-A0264

9033903005

main90339-03005

9038507002

main90385-07002

9038709033

main90387-09033

9046630001

main90466-30001

9046706200

main90467-06200

33 parts on this diagram · 2 diagrams in section
