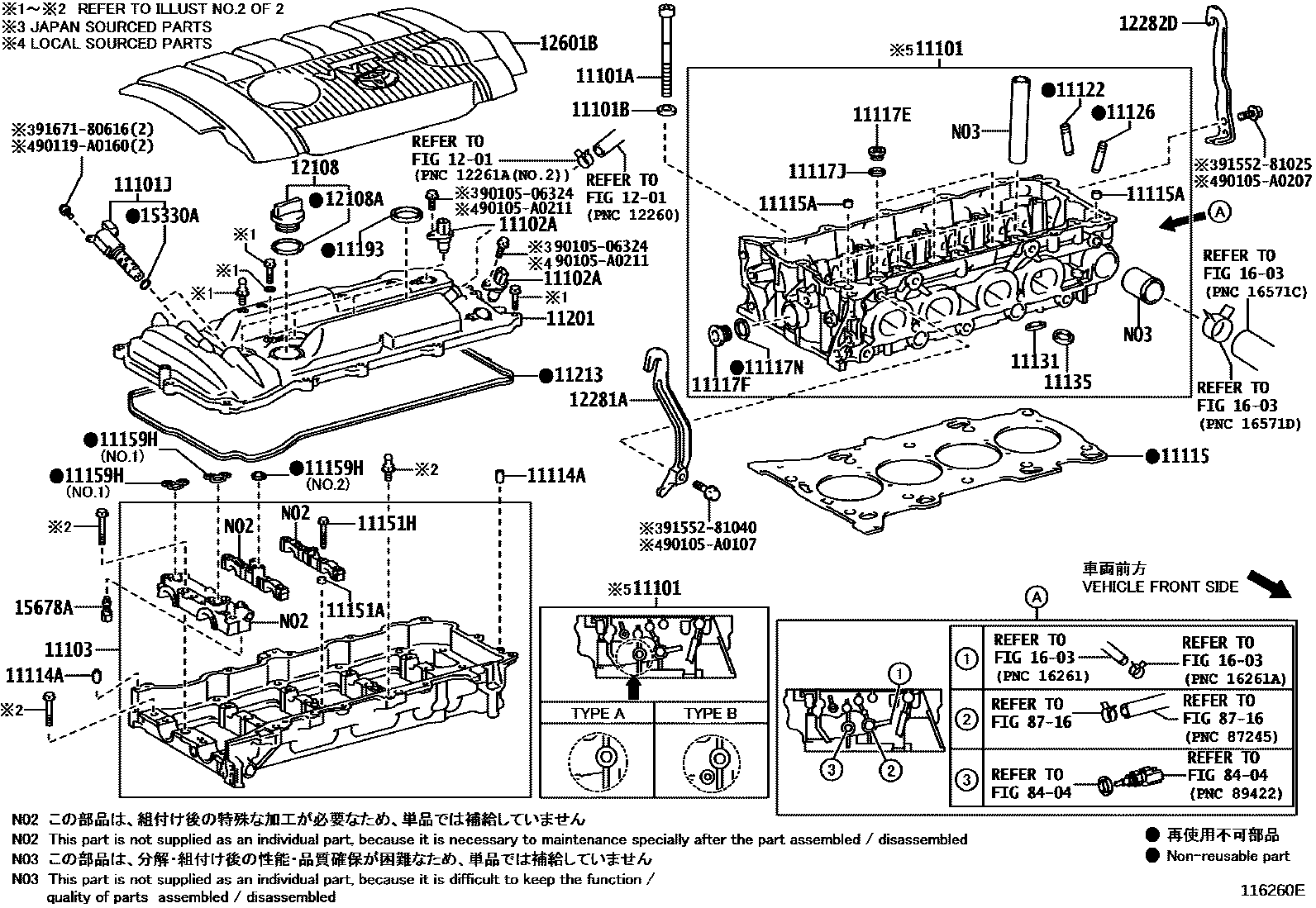

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(J)
*107
*212
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*212
*107
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*212
*107
11102HEAD, CYLINDER, LH
11102ASENSOR, CAMSHAFT POSITION
*107
*212
11114APIN, STRAIGHT
L=14,OD=6
L=14,OD=6,*107
L=14,OD=6,*212
11115APIN, RING
*212
*107
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*212
*107
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*107
*212
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*107
*212
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*107
*212
11122BUSH, INTAKE VALVE GUIDE
STD,*212
O/S 0.05
O/S 0.05,*107
O/S 0.05,*212
11126BUSH, EXHAUST VALVE GUIDE
STD,*212
O/S 0.05,*212
11131SEAT, INTAKE VALVE
STD,(L)
STD,*212
STD,*107
O/S 0.03,(L)
O/S 0.03,*212
O/S 0.03,*107
11135SEAT, EXHAUST VALVE
STD,(L)
STD,*212
STD,(J)
STD,*107
STD
O/S 0.03,(L)
O/S 0.03,*212
O/S 0.03,(J)
O/S 0.03
O/S 0.03,*107
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*107
L=12.5,OD=8,*212
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*107
*212
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*212,NO.1
*107,NO.1
NO.1
NO.2
*107,NO.2
*212,NO.2
11193GASKET, SPARK PLUG TUBE
*212
*107
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
*212
(J)
*107
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
*212
*107
1201
12108CAP SUB-ASSY, OIL FILLER
(J)
(J),*212
*107
12108AGASKET(FOR OIL FILLER CAP)
(J)
*107
(J),*212
12601BCOVER SUB-ASSY, ENGINE, NO.1
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
(J)
*107
15678AFILTER, OIL CONTROL VALVE
(L),*212
(J),*212
*107
1603
8404
8716
9010506324
main90105-06324
90105A0107
main90105-A0107
90105A0207
main90105-A0207
90105A0211
main90105-A0211
90119A0160
main90119-A0160
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
43 parts on this diagram · 4 diagrams in section
