SHORT BLOCK ASSEMBLY

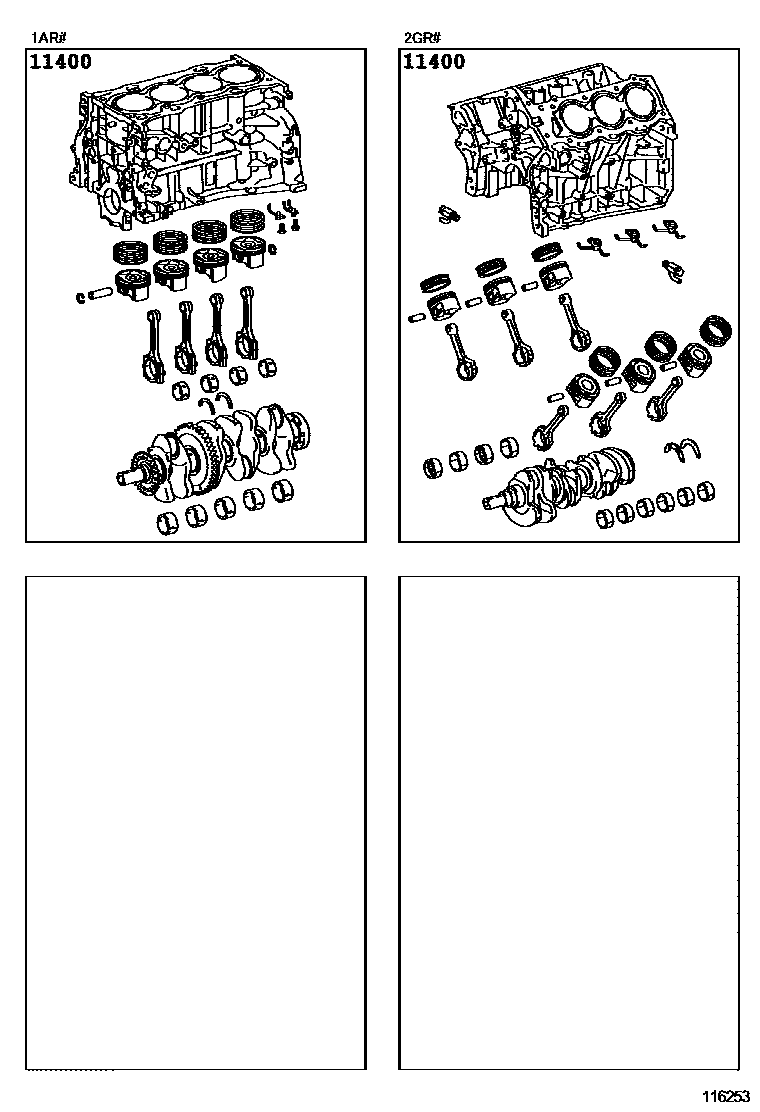

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0P050i200910

(L)

main11400-0V020i201109

(L)

main11400-31163supersedes 11400-31360i200910-201004

(J)

main11400-36050i201008

(J)

1 parts on this diagram · 1 diagram in section
