STANDARD TOOL

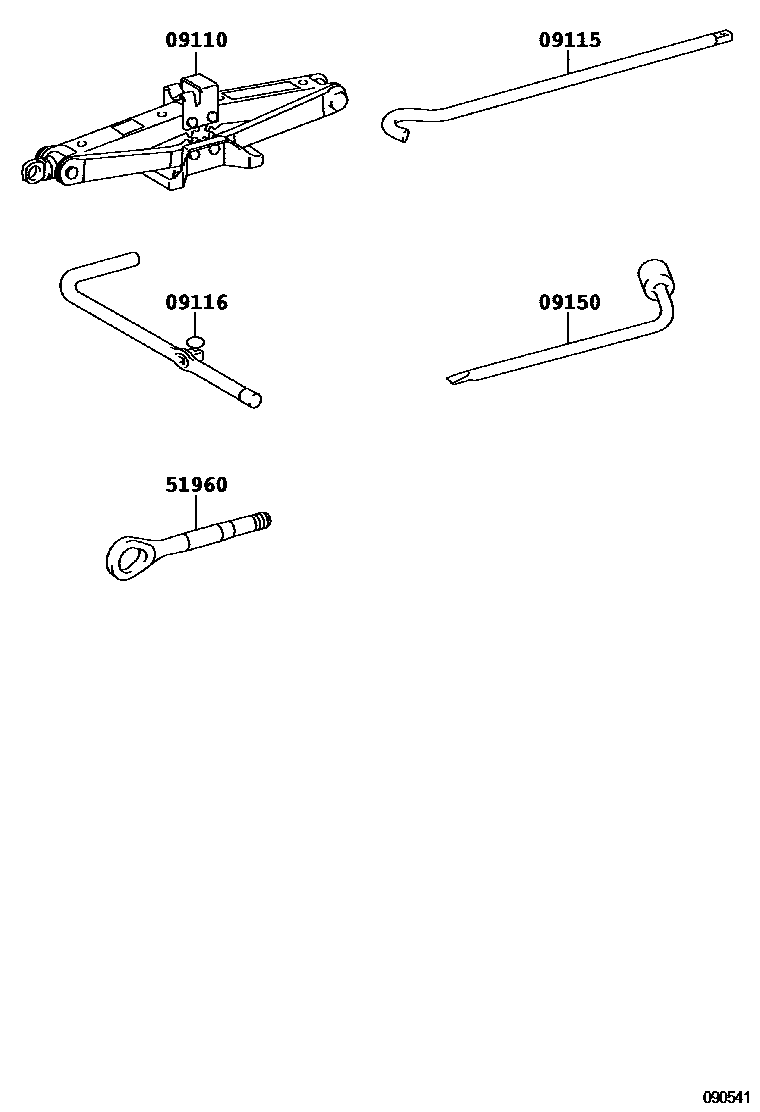

Parts diagram

09110JACK ASSY

main09111-0W110i200910-201008

main09111-0W111i201110-201203

main09111-0W140i201204

09115ROD SUB-ASSY, JACK HANDLE

main09115-0E010i200910-201008

09116LEVER, JACK HANDLE

main09116-0E010i200910-201008

09150WRENCH, HUB NUT BOX

main09150-02020i200910-201008

51960HOOK ASSY, FRONT

main51961-30020i200910-201008

5 parts on this diagram · 1 diagram in section
