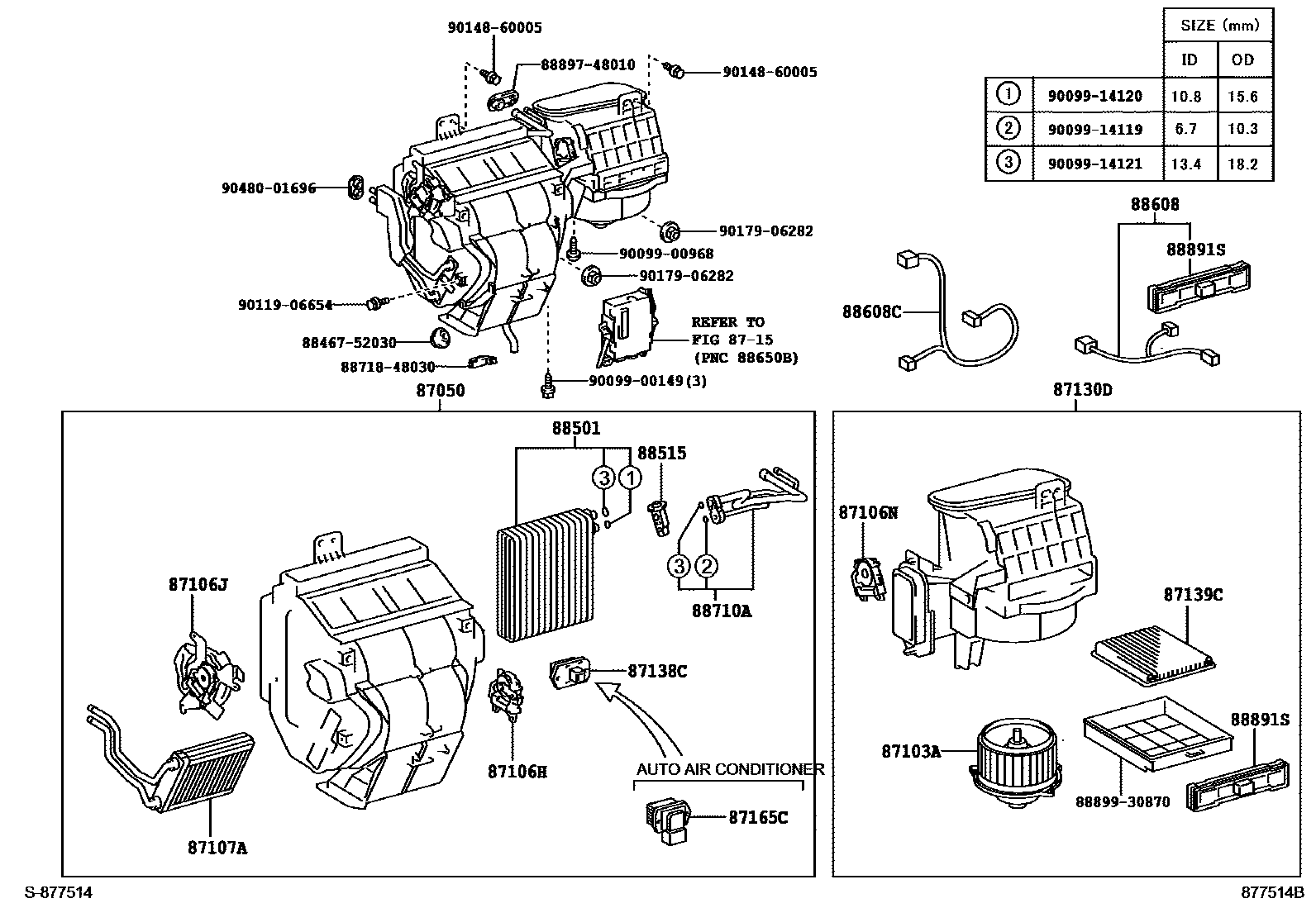

HEATING & AIR CONDITIONING - COOLER UNIT

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48170supersedes 87050-48160iMHU2#200503-200705

LIMITED(USA)

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-48020iMHU2#200503

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-48160iMHU2#200503

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-48070iMHU2#200503

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-53020iMHU2#200503

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-48080iMHU2#200503-200705

87130DBLOWER ASSY

main87130-48041iMHU2#200503-200508

main87130-48042iMHU2#200508

87138CRESISTOR, BLOWER

main87138-48040iMHU2#200503

87139CFILTER, CLEAN AIR

main87139-48020iMHU2#200503

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-48010iMHU2#200503-200705

LIMITED(USA)

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-48190iMHU2#200503

88515VALVE, COOLER EXPANSION

main88515-28180iMHU2#200503-200602

main88515-48070iMHU2#200603

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-48030iMHU2#200503-200507

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-48080supersedes 88608-48090iMHU2#200503-200507

LIMITED(USA)

88710ATUBE ASSY, AIR CONDITIONER

main88710-48240iMHU2#200503-200705

88891SCOVER, COOLER, NO.1

main88891-30680iMHU2#200503

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8871848030PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-48030

8889748010VALVE, COOLER MAGNET

main88897-48010

8889930870COVER, EVAPORATOR

main88899-30870

9009900149

main90099-00149

9009900968

main90099-00968

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906654

main90119-06654

9014860005

main90148-60005

9017906282

main90179-06282

9048001696

main90480-01696

30 parts on this diagram · 1 diagram in section
