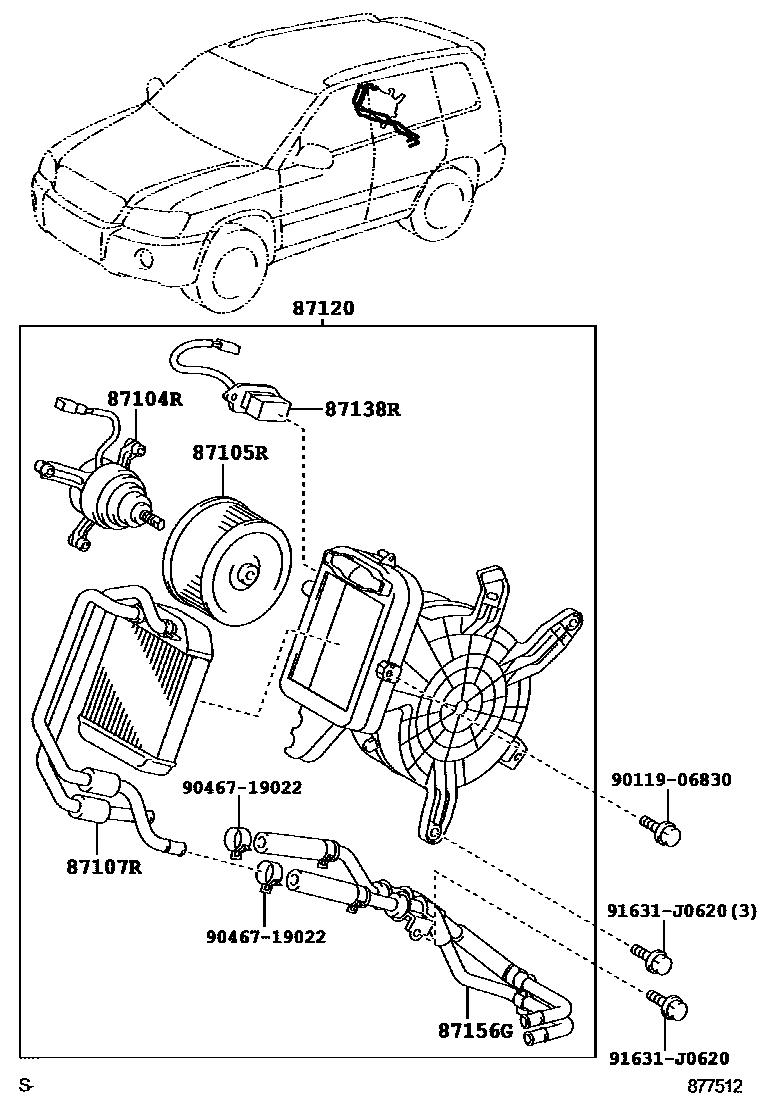

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

87104RMOTOR SUB-ASSY, REAR HEATER BLOWER

main87104-44030iMHU2#..07S200503-200607

W(REAR HEATER)

main87104-48010iMHU2#..07S200608

W(REAR HEATER)

87105RFAN SUB-ASSY, REAR HEATER BLOWER

main87105-28030iMHU2#..07S200503

W(REAR HEATER)

87107RUNIT SUB-ASSY, REAR HEATER

main87107-48090iMHU2#..07S200503

W(REAR HEATER)

87120HEATER ASSY, REAR

main87110-48010iMHU2#..07S200503-200705

W(REAR HEATER)

87138RRESISTOR, REAR HEATER BLOWER

main87138-48050iMHU2#..07S200503

W(REAR HEATER)

87156GPIPE, HEATER WATER, NO.1

main87207-48010iMHU2#..07S200503-200705

W(REAR HEATER)

9011906830

main90119-06830

9046719022

main90467-19022

91631J0620

main91631-J0620

9 parts on this diagram · 1 diagram in section
